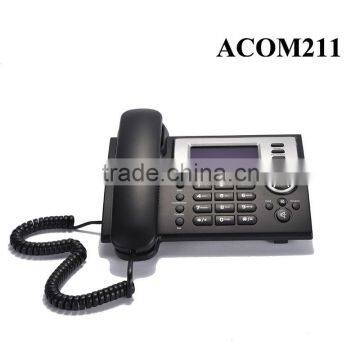

ACOM211 IP Phone

Overview

    Acom211 is a kind of voice communication terminal which is based on wide band and independent of PC (personal computer).

Key features:

  Network Features

• WAN/LAN: 10/100M Ethernet ports, supports Route and Bridge mode.
• Support bridge working as hub(optional)
• Support PPPoE for xDSL and PoE(optional)
• Support VLAN(voice vlan/data vlan)
• Support 802.1
• Support basic NAT and NAPT
• NAT transverse:support STUN client
• Support DHCP client on WAN
• Support DHCP server on LAN
• Support main DNS and secondary DNS server.
• Support DNS Relay, SNTP Client, Firewall, openVPN
• Support VPN (L2TP) and DMZ
• Network tools in telnet server: including ping, trace route, telnet client

Maintenance and Management

• Web ,telnet and keypad management
• Management with different account right
• Upgrade firmware through POST mode and HTTP, FTP or TFTP
• Support dhcp option66 auto provisioning
• Telnet remote management/upload/ download setting file
• Safe mode provide reliability
• Support Auto Provisioning to upgrade firmware or configuration file(HTTPS/FTPS optional)
• Support TR-069(optional) and Syslog

Specifications

Main Chipset Broadcom

SDRAM 128Mbits

Flash 32Mbits

LCD Size128 x 48mm

Port·WAN: 10/100Base-T RJ-45 for LAN
        ·LAN: 10/100Base-T RJ-45 for PC

Weight0.99kg

Power Adapter·Input: AC100-240V 50-60Hz
                         ·Output: DC5V/1A

Power Consumption·Idle: 2.5W ·Active: 2.8W

Operation Temperature0-40°C

Relative Humidity10-65%
