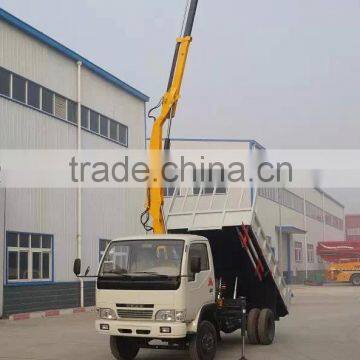

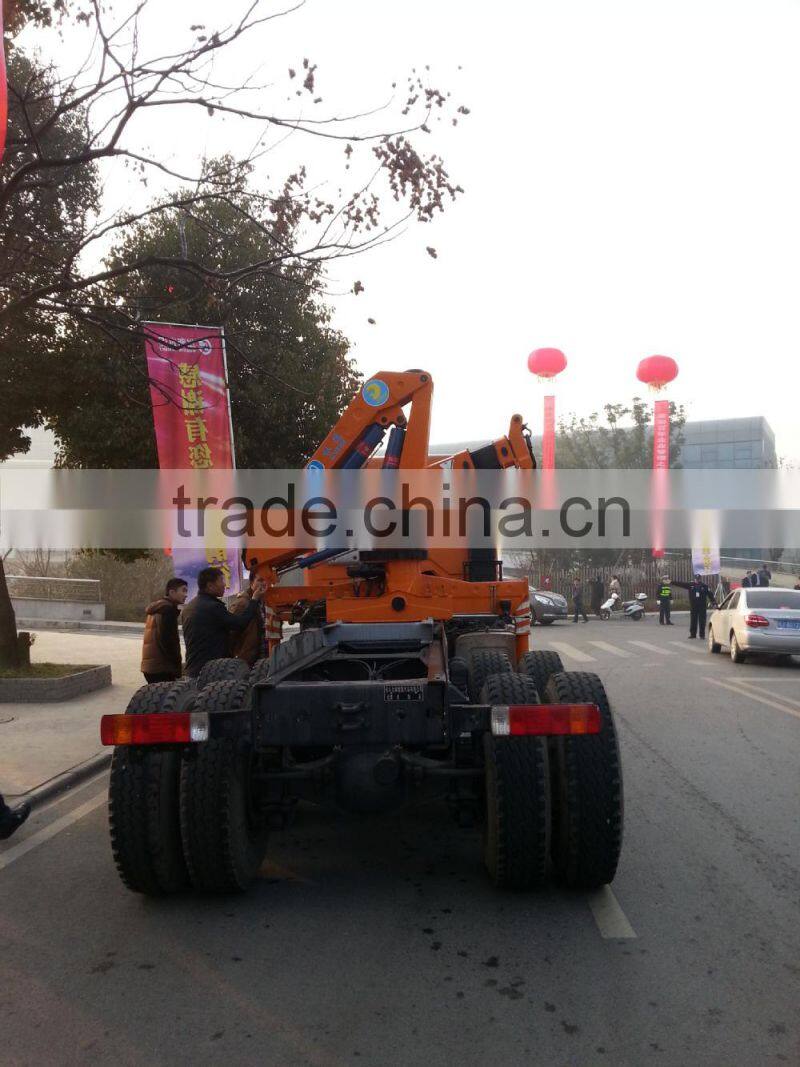

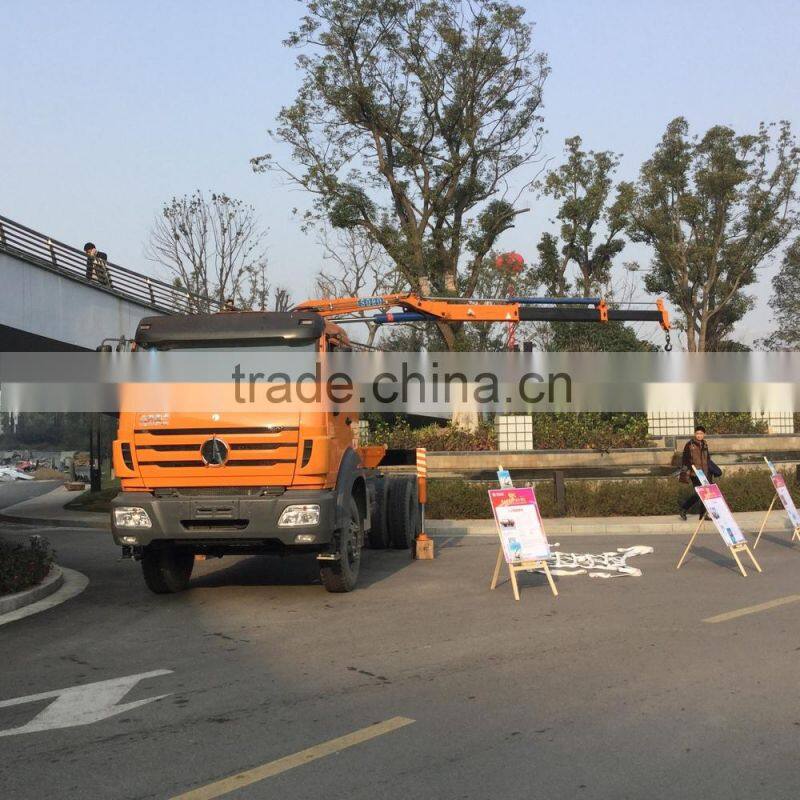

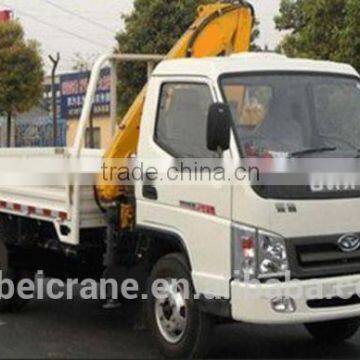

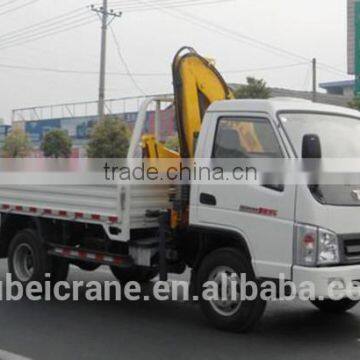

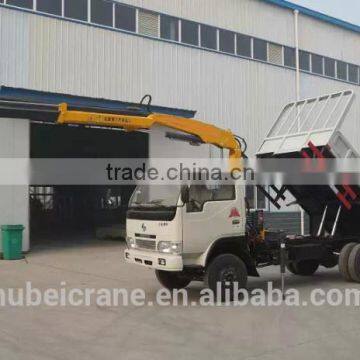

3.2ton Knuckle Boom Crane and Accessories,SQ80ZB2, Hydraulic Truck Mounted Crane.
US$ 7,500 - 9,500
/ Set
1 Set(Min. Order)
- WUHAN SHANGHAI TIANJIN GUANGZHOU
- T/T Credit Card PayPal
You May Like
-
8ton Knuckle Boom Crane and Accessories,SQ160ZB4, Hydraulic Truck Mounted Crane.
-
18ton Knuckle Boom Crane and Accessories,SQ360ZB4, Hydraulic Truck Mounted Crane.
-
120ton Quicklift Compact Cranes,SQ2400ZB6, Hydraulic Truck Crane With Knuckle Booms.
-
80ton Quicklift Compact Cranes,SQ1600ZB6, Hydraulic Truck Crane With Knuckle Booms.
-
30ton Quicklift Compact Cranes,SQ600ZB4, Hydraulic Truck Crane With Knuckle Booms.
-
3.2ton Quicklift Compact Cranes,SQ80ZB2, Hydraulic Truck Crane With Knuckle Booms.
Product Details
| Condition | New | Application | truck mounted crane | |
| Rated Loading Capacity | 1500kg | Rated Lifting Moment | 80 Kn.m | |
| Max. Lifting Load | 3.2 ton at 2m | Max. Lifting Height | 10.5m | |
| Span | 2160-3330mm | Place of Origin | Hubei, China | |
| Brand Name | HUBEI HBQS | Model Number | SQ80ZB2 | |
| Certification | ISO9001:2008; TS16949 | Warranty | one year | |
| After-sales Service Provided | Overseas third-party support available |
Product Description

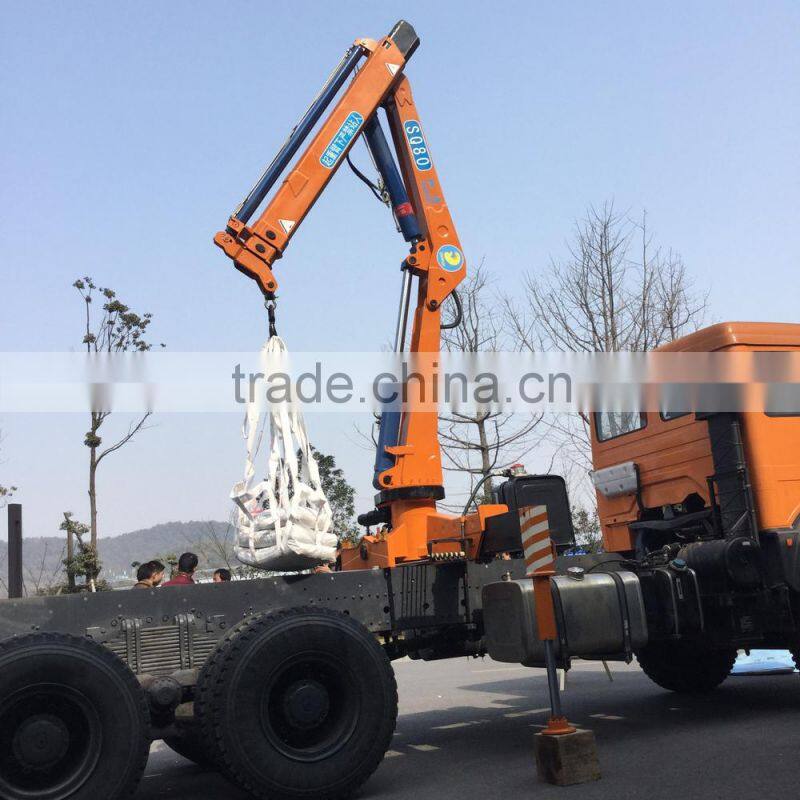

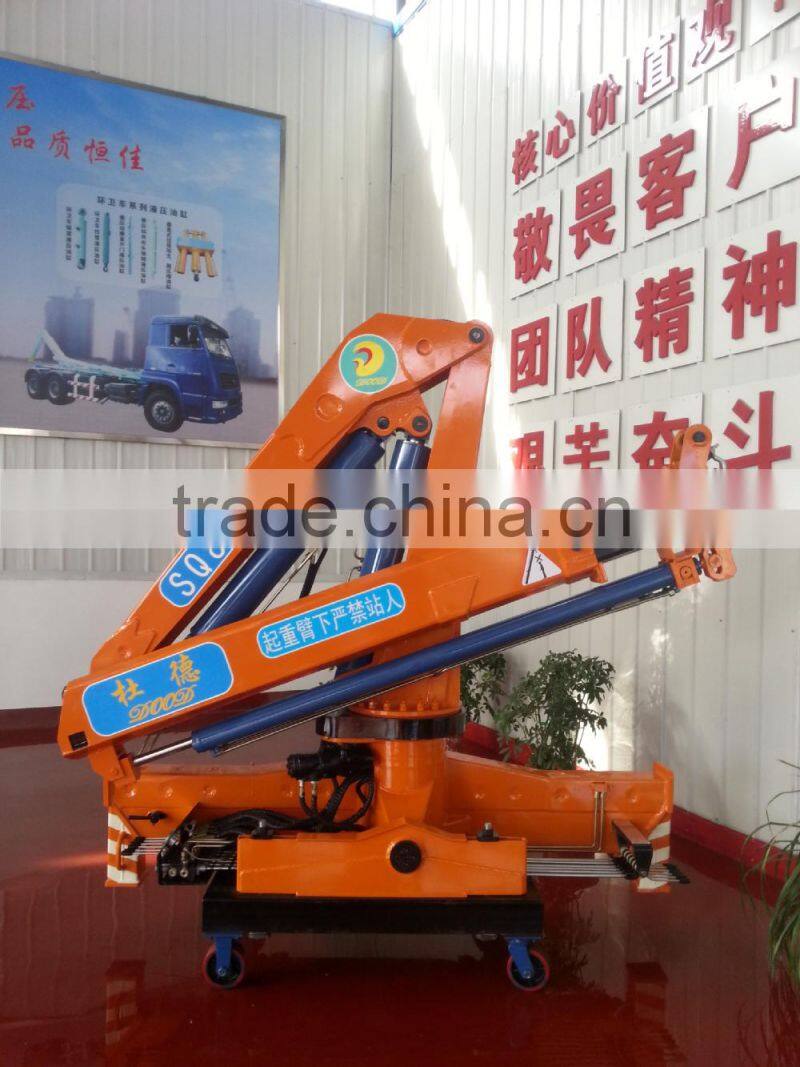

SQ80ZB2 (3.2T) Knuckle Boom Crane
| Telescoping Boom Truck Mounted Crane | ||||||||||
| Model # | SQ3.2S3 | SQ5S3 | SQ6.3S3 | SQ8S4 | SQ10S4 | SQ12S4 | SQ14S4 | SQ16S5 | SQ18S5 | SQ20S5 |
| Max Lifting Moment | 80 Kn.m | 125 Kn.m | 160 Kn.m | 200 Kn.m | 250 Kn.m | 300 Kn.m | 350 Kn.m | 400 Kn.m | 450 Kn.m | 500 Kn.m |
| Max Lifting Capacity | 3.2 T | 5 T | 6.3 T | 8 T | 10 T | 12 T | 14 T | 16 T | 18 T | 20 T |
| Max Lifting Height | 10 m | 11 m | 11.5 m | 13.7 m | 14.7 m | 17 m | 18.6 m | 20.1 m | 20.1 m | 20.1 m |
| Working Radius | 7.4 m | 9.4 m | 10.1 m | 12.5 m | 13.7 m | 15.5 m | 16.5 m | 20 m | 20 m | 20 m |
| Boom Section | 3 stages | 3 stages | 3 stages | 4 stages | 4 stages | 4 stages | 4 stages | 5 stages | 5 stages | 5 stages |
| Rotation Angle | 360º continuous | 360º continuous | 360º continuous | 360º continuous | 360º continuous | 360º continuous | 360º continuous | 360º continuous | 360º continuous | 360º continuous |
| Working Pressure | 16 Mpa | 16 Mpa | 16 Mpa | 20 Mpa | 20 Mpa | 20 Mpa | 20 Mpa | 20 Mpa | 20 Mpa | 20 Mpa |
| Rated Oil Flow | 30 L/min | 50L/min | 50L/min | 63L/min | 63L/min | 80L/min | 90L/min | 90L/min | 90L/min | 90L/min |
| Outrigger Span | 1750-3550mm | 2215-5014mm | 2215-5014mm | 2200-5400mm | 2200-5400mm | 2298-5900mm | 2190-5600mm | 2190-5390mm | 2400-7270mm | 2400-7270mm |
| Crane Weight | 1500 kg | 2300 kg | 3200 kg | 4200 kg | 4800 kg | 5800 kg | 6500 kg | 6900 kg | 7600 kg | 8100 kg |
| Installation Space | 800 mm | 950mm | 1100mm | 1200mm | 1300mm | 1300mm | 1450mm | 1450mm | 1450mm | 1500mm |
| Knuckle Boom Truck Mounted Crane | |||||||||||
| Model # | Max Lifting Moment | Max Lifting Capacity | Max Lifting Height | Working Radius | Boom Section | Slewing Angle | Working Pressure | Rated Oil Flow | Outrigger Span | Crane Weight | Installation Space |

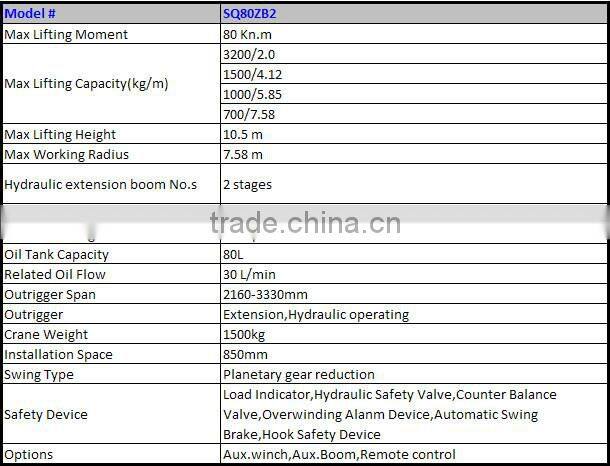

| SQ80ZB2 | 80 Kn.m | 3.2 T | 10.5 m | 7.58 m | 2 stages | 360º continuous | 28 Mpa | 30 L/min | 2160-3330mm | 1500kg | 850mm |
| SQ160ZB3 | 160 Kn.m | 8 T | 12.5 m | 10 m | 3 stages | 360º continuous | 28 Mpa | 60 L/min | 2300-5220mm | 2900kg | 1100mm |
| SQ160ZB4 | 160 Kn.m | 8 T | 13.1m | 11.3m | 4stages | 360º continuous | 28 Mpa | 60 L/min | 2330-5630mm | 3100kg | 1100mm |
| SQ200ZB4 | 200 Kn.m | 10 T | 13 m | 11.1 m | 4 stages | 360º continuous | 28 Mpa | 60 L/min | 2300-5600mm | 3300kg | 1100mm |
| SQ240ZB4 | 240 Kn.m | 12 T | 13 m | 11.2 m | 4 stages | 360º continuous | 28 Mpa | 60 L/min | 2300-5600mm | 3500kg | 1250mm |
| SQ360ZB4 | 360 Kn.m | 18 T | 14.5 m | 11.4 m | 4 stages | 360º continuous | 28 Mpa | 60 L/min | 2320-5820mm | 4600kg | 1250mm |
| SQ400ZB4 | 400 Kn.m | 20 T | 15 m | 11.55 m | 4 stages | 360º continuous | 28 Mpa | 80 L/min | 2300-5900mm | 5100kg | 1250mm |
| SQ500ZB4 | 500 Kn.m | 25 T | 14.7 m | 11.5 m | 4 stages | 360º continuous | 28 Mpa | 80 L/min | 2300-5900mm | 6250kg | 1450mm |
| SQ600ZB4 | 600 Kn.m | 30 T | 14.5 m | 11.5 m | 4 stages | 360º continuous | 28 Mpa | 80 L/min | 2308-6120mm | 6900kg | 1450mm |
| SQ700ZB4 | 700 Kn.m | 35 T | 14.7 m | 11.5 m | 4 stages | 360º continuous | 28 Mpa | 80 L/min | 2308-6120mm | 7200kg | 1450mm |
| SQ1600ZB6 | 1600 Kn.m | 80 T | 17 m | 15.2 m | 6 stages | 360º continuous | 28 Mpa | 110 L/min | 2472-7967mm | 14100kg | 2540mm |
| SQ2400ZB6 | 2400 Kn.m | 120 T | 14 m | 13 m | 6 stages | 360º continuous | 28 Mpa | 110 L/min | 2490-7985mm | 18500kg | 2570mm |
| SQ3200ZB6 | 3200 Kn.m | 160 T | 16.3 m | 15.44 m | 6 stages | 360º continuous | 28 Mpa | 110 L/min | 2490-7985mm | 25500kg | 2910mm |
