Direct Cooling Block Ice Machine with PLC program system
Negotiable
/ Set
1 Set(Min. Order)
- Guangzhou Port
- T/T D/P D/A Credit Card PayPal
You May Like
-
Koller 3 tons ice block machine--Directly Evaporated in short time DK20
-
Direct Cooling Block Ice Machine for Human Consumption
-
Koller Directly Evaporated Aluminum Plate Ice Block Machine--2000kg per day
-
Direct evaporating Block Ice Machine for Human Consumption
-
2016 Koller 2000kg Directly cooling Ice Block Machine For human consumption
-
Guangzhou Koller 5 Tons Per Day Direct Cooling Ice Block Machine
Product Details
| Condition | New | Capacity | 1 tons capacity per day | |
| Place of Origin | Guangdong, China | Brand Name | Koller | |
| Model Number | DK10 | Ice Shape | Ice Block | |
| Voltage | 380V, 50/60 Hz, 3P or 220V, 60Hz, 3P | Power(W) | 3000 | |
| Dimension(L*W*H) | 1820mm*1070mm*1365mm | Weight | 2500kg | |
| Certification | CE | Warranty | 12 months after delivery | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Human consumption Block Ice Machine Canton factory
Product Description
1. Specifications
- ice block machine Capacity: 1000kg ice blocks per day;
- Without brine water for freezing ice;
- freezing time: 2-3hrs newest tech;
- ice block size: 5kg per piece.
2. Advantages:
Our DK series ice block machine adopt aluminum plate as ice can, the refrigerant will evaporate inside the aluminum plate so the plate can freeze ice making water quickly. This is the intergrated system, meanwhile, we design the lifting system to harvest ice blocks directly, no need hands to harvest ice blocks one by one.
3. Features:
| DK10 Block ice machine | ||
| Technical parameters | ||
| NO. | Description | Details |
| 1 | Freezing time per cycle | 2-3 hours(approx) |
| 2 | Weight of each ice block | 5kg,11×9.3×50cm |
| 3 | Outdimensions | 1820×1070×1365mm |
| 4 | Ice making capacity | 1000kg/day |
| 5 | Evaporator for ice tank | Aluminum plate |
| 6 | Cover | Stainless steel sheet |
| 7 | Compressor | Copeland (ZB45KQ/ZB45KQE) or Danfoss (MT-80/MTZ-80) |
| 8 | Refrigerant | R22 |
| 9 | Condenser | Air cooler |
| 10 | water inlet temperature | 20-25°C |
| 11 | ambient operating temperature | 35-40°C |
| 12 | Control and safety devices | autormatic electic control panel box; |
| HP/LP switch with automatic reset | ||
| 13 | Cooling systerm | Copper pipes, liquid separator, |
| solenoid valve,filter and so on | ||
| 14 | Install power | 4.5KW,380-450V/3ph/50HZ |

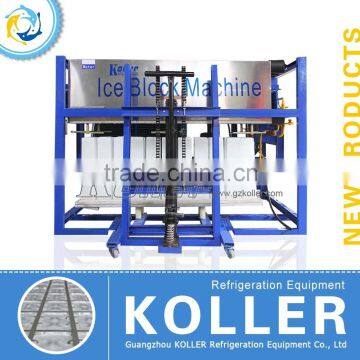

4. Pictures:
