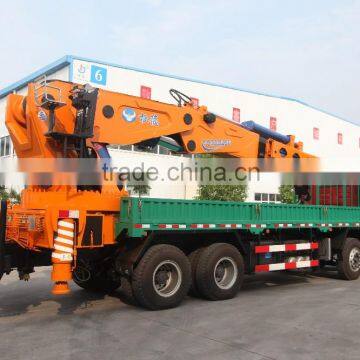

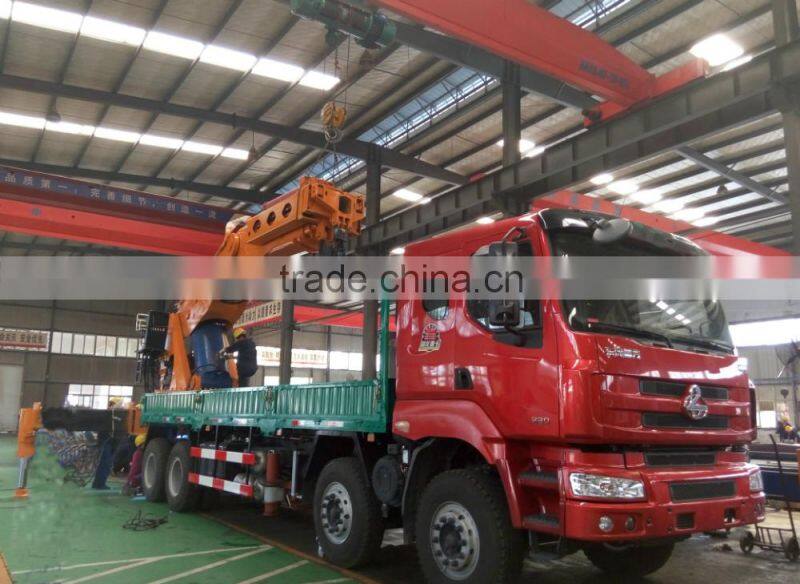

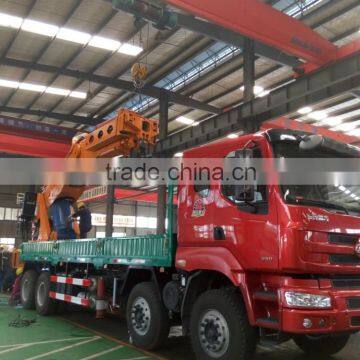

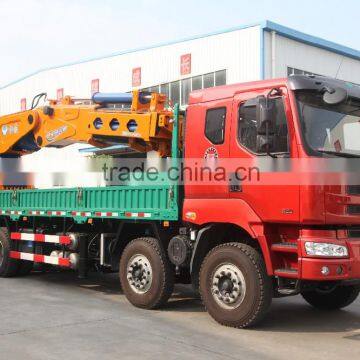

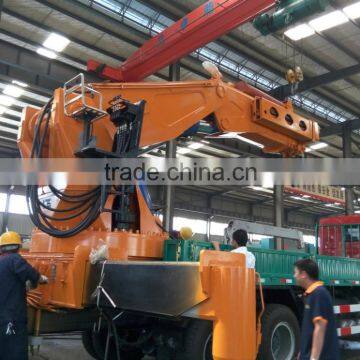

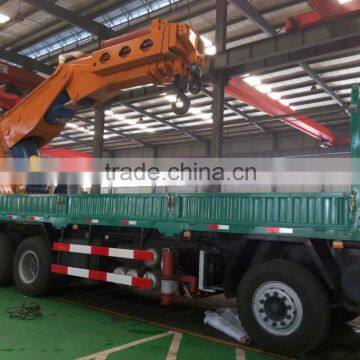

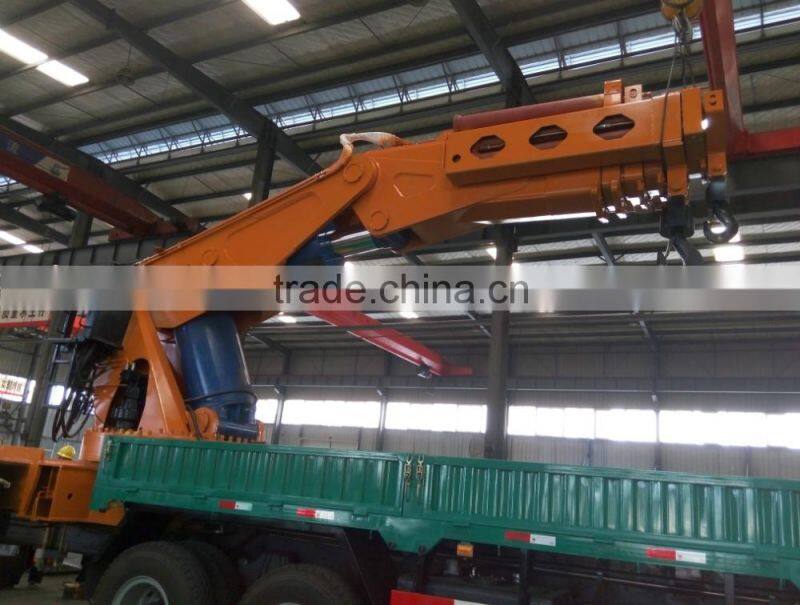

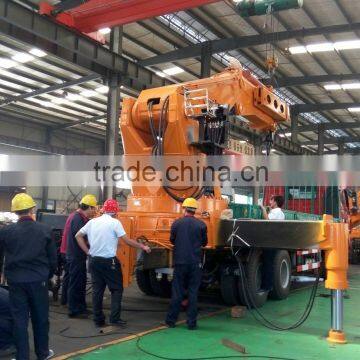

High Quality 160ton Knucle Boom Truck Mounted Crane for Sale,SQ3200ZB6
US$ 96,900 - 97,000
/ Set
1 Set(Min. Order)
- shanghai/tianjin/wuhan/guangzhou
- T/T
You May Like
-
High Quality 120 Ton Knucle Boom Truck Mounted Crane for Sale,SQ2400ZB6
-
High Quality 90on Knucle Boom Truck Mounted Crane for Sale,SQ1800ZB6
-
30 Ton Knucle Boom Truck Mounted Crane for Sale,SQ600ZB4,high Quality
-
20ton Cargo Crane Truck on Truck or Boat , Model No.: SQ400ZB4, Crane With Hydraulic Knuckle Boom
-
High Quality 80 Ton Knucle Boom Truck Mounted Crane for Sale,SQ1600ZB6
-
High Quality 18 Ton Knucle Boom Truck Mounted Crane for Sale,SQ360ZB4
Product Details
| Condition | New | Application | Construction Industry | |
| Rated Lifting Moment | 3200 Kn.m | Max. Lifting Load | 160 ton at 2 m | |
| Max. Lifting Height | 14.7m | Span | 2170-8000mm | |
| Place of Origin | Hubei, China | Brand Name | HBQZ | |
| Model Number | SQ3200ZB6 | Certification | ISO9001:2008 TS16949 | |
| Warranty | 1year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

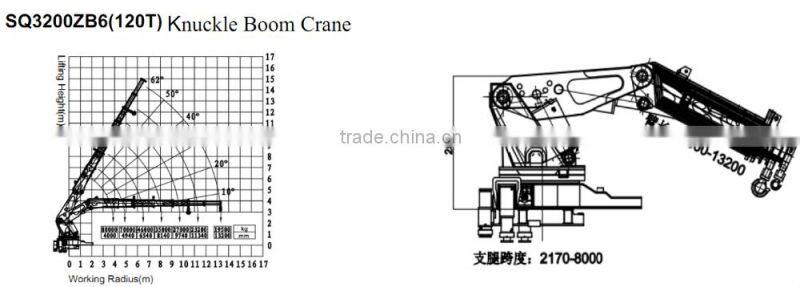

THE PEFORMANCE ON CRANE MODEL No. SQ3200ZB6
| Model # | SQ3200ZB6 /knuckle crane 160 ton at 2 m | |
| Max Lifting Moment | 3200 Kn.m | |
| Max Lifting Capacity | 80000/4.0 | |
| 70000/4.94 | ||
| 46000/6.54 | ||
| 35000/8.14 | ||
| Max Lifting Height | 14.7m | |
| Max Working Radius | 13.2m | |
| Hydraulic extension boom No.s | 6 stages | |
| Rotation Angle | 360º continuous | |
| Rated Working Pressure | 28 Mpa | |
| Oil Tank Capacity | 400L | |
| Related Oil Flow | 110 L/min | |
| Outrigger Span | 2490-7985mm | |
| Outrigger | 5 ,Extension, Hydraulic operating. | |
| Crane Weight | 24700kg | |
| Installation Space | 2910mm | |
| Swing Type | Planetary gear reduction | |
| Safety Device | Load Indicator,Hydraulic Safety Valve,Counter Balance Valve,Automatic Swing Brake,Hook Safety Device | |
| Options | ch,Aux.Boom,Remote control | |
| Material | HG785 |
