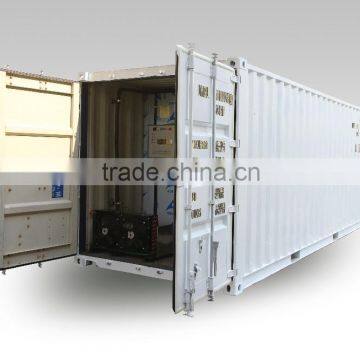

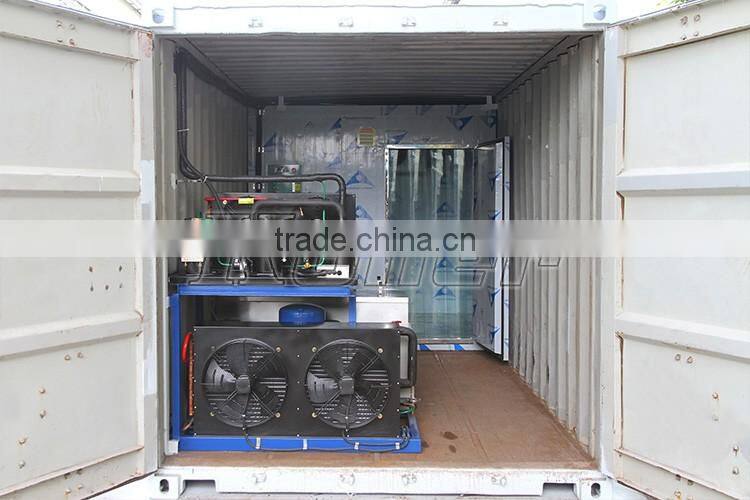

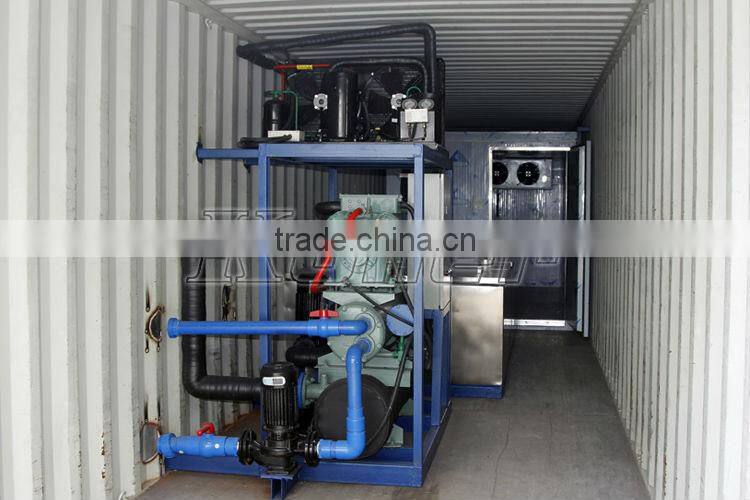

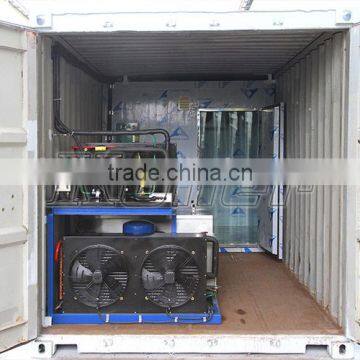

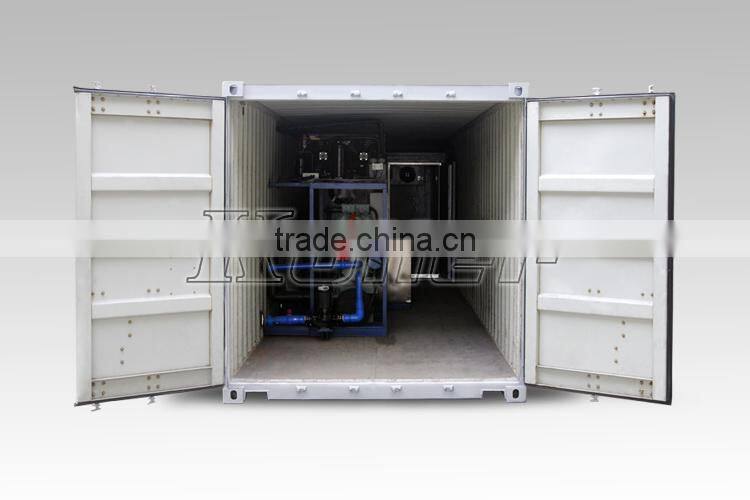

5 Tons Block Ice Making Plant Built in Container

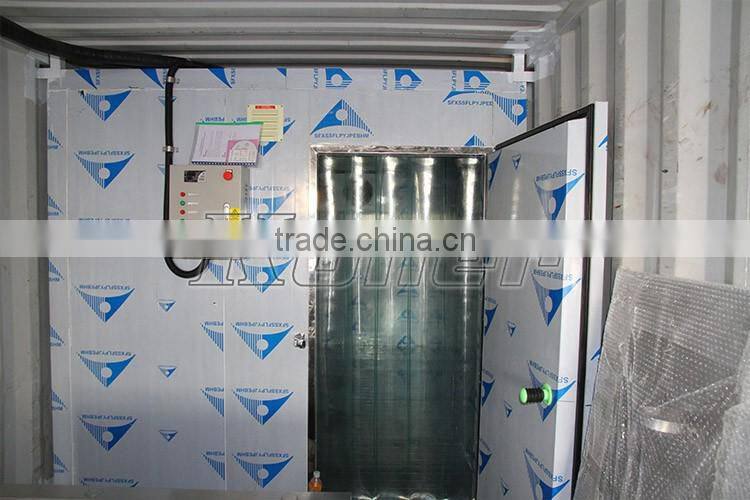

JMB50 Containerized Ice Block Machine with Cold Room

1. Product Description

(1). Special design for the Africa, Middle East and Oceania market, performance well in the hot environment;

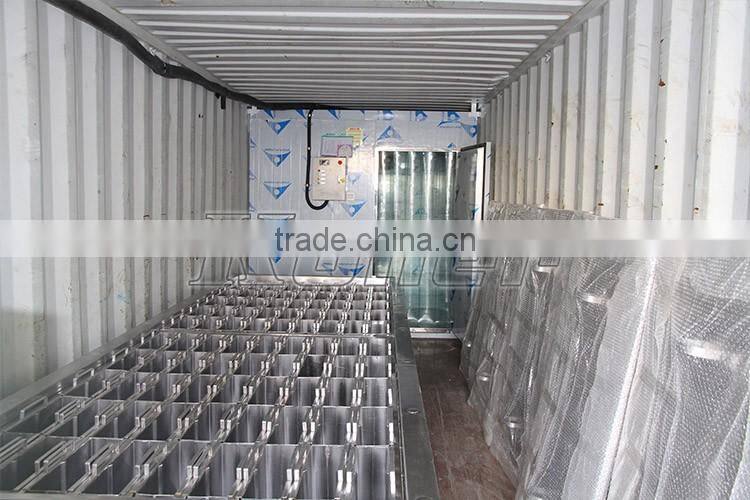

(2). Adopt stainless steel SUS304 for the salt water tank and ice moulds, no corrosion and low maintenance;

(3). Reasonable and separated design for the structure, save space, easy to install;

(4). All dimensions of ice block machine are designed according to international standard size of the container, very easy and convenient for transportation;

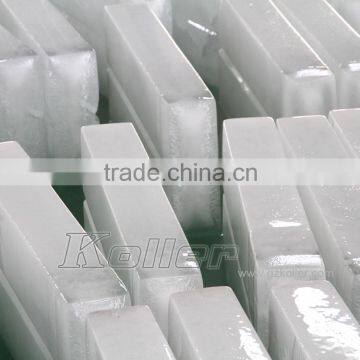

(5). Ice block size: 10kg/piece;

(6). Install according to the operation manual and CD, Supply failure alarming system, and no need worker to monitor.

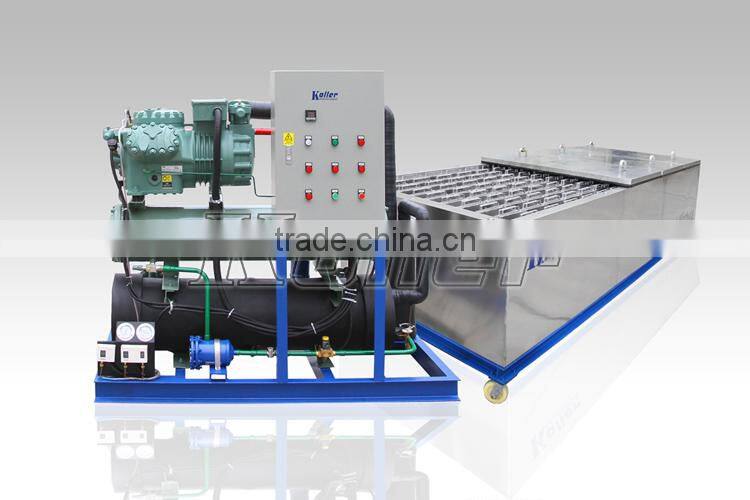

2. Specification for MB50 ice block machine:

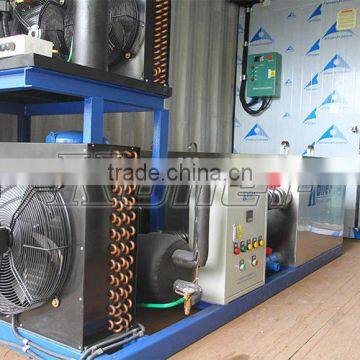

Block ice machinery unit: 1690mm * 890mm*1600mm;

Water tank: 3900mm* 1450mm*1000mm;

3. Supply Power Form:  380V, 50Hz, 3P or 220~240V, 60Hz, 3P.

4. Cooling System:  Water cooled system, Air cooled system.

5. Installation: The machine has been installed and tested before delivery, only needs customer to connect water pipes and power, the accessory spared parts are offered free of charge.

6. Guarantee Period:

During 12 months after selling, maintenance and parts free of charge.

7. Working condition for ice block machine:

Warranty:

• 12 months warranty after delivery.
• Professional after-sales department to provide 24/7 technical support, all complaints should be replied within 24 hours.
• Over 10 engineers available to service machinery overseas.
• Free spare parts replacement within warranty period.
• Beyond guarantee period, we will charge market price for spare parts.

Koller customers:

Our clients is widely-spread in over 120 countries like Malaysia, Philippine, Indonesia, Vietnam, Papua New Guinea, Australia, Fiji, French Polynesia, South Korea, Cyprus, Greece, Belgium, Croatia, Ireland, UK, Jordan, Iran, Syria, Saudi Arabia, Bahrain, Lebanon, Sudan, Nigeria, Angola, Congo, Guinea, Guinea Bissau, Ghana, Cote D'Ivoire, South Africa, Mozambique, Tanzania, Venezuela, Surinam, Chile, Haiti and so on.

FAQ:

1. How to choose a true manufactuerer among hundreds of suppliers?

Step 1: A good supplier should be at least 5 years history and have export/import business at least 3 years. We are 8 year gold supplier in alibaba and specialized in ice machine export since 2004.

Step 2: Request your suppliers to provide their certification of corresponding machines such as CE, ISO9001, UL and so on, it wil help you tell that they are ture manufacturer, trading company or SOHO.

Step 3: Ask supplier to provide more pictures about their facotry and products with their company logo on it. Don't define a manufactuerer with simple picture, they can download some picturers on the internet and claim it is their machines. If the suppliers only show pictures without any logo on it, just pass them.

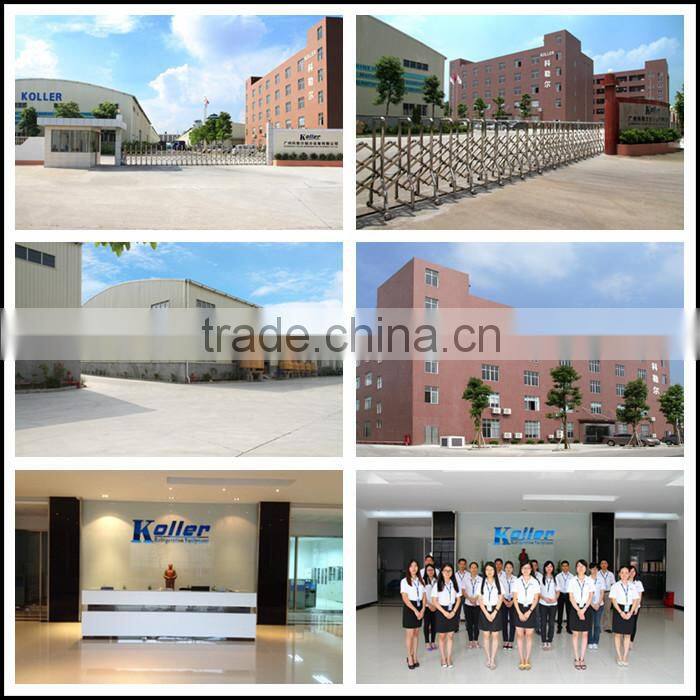

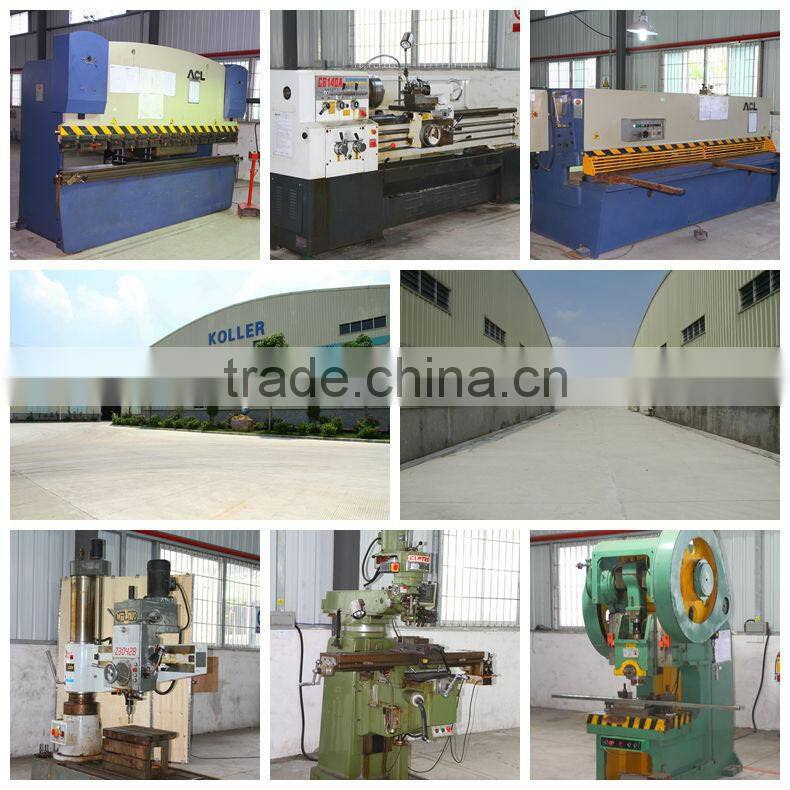

Step4: If possible and you are willing to, visit the factory and see the workshop.

2. What is the power consumption to produce 1 ton ice blocks?

75-80KWH to produce 1 ton ice blocks.

3. Can your ice block maker work with 220V, 50Hz, single phase power?

No, all our ice block machines adopt 3 phases industrial power, such as 380V, 50/60Hz, 3 phases or 220V, 60Hz, 3 phases supply power.

4. Would inlet water temp affect production?

Yes. Our standard input water temperature for the ice block machine is 21 degree, higher the inlet water temperarature, less the capacity.

5. Why adopt 304 stainless steel for water tank and ice cans?

We will adopt insdustrial salt water in the water tank to freeze the fresh water in the ice cans and turn them into ice blocks. As brine system has great corrosion to the machine, all material contacting salt water incluidng water tank and ice moulds is made of SUS304 stainless steel, it is the best material in anti-rust and anti-corrosion. SUS304 stainless steel is much better than galvanized steel, carbon steel (iron plate) and coated steel. If with 304 stainless steel, the machine's working life can be over 10 years under proper maintenance, while galvanized steel and carbon steel will easily corroded in 3-4 years.
