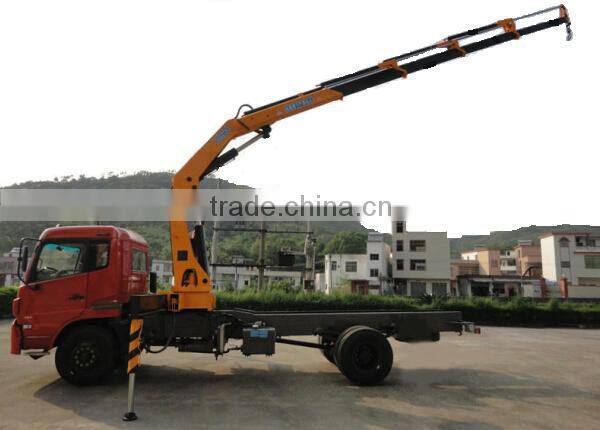

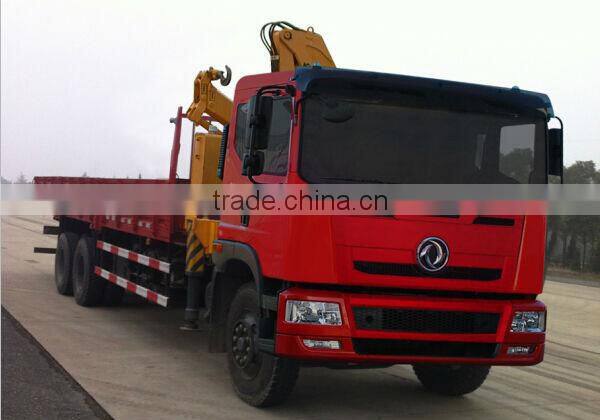

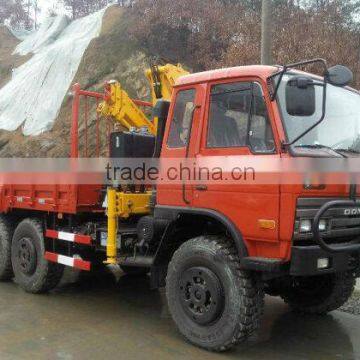

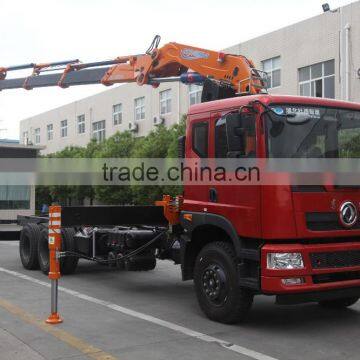

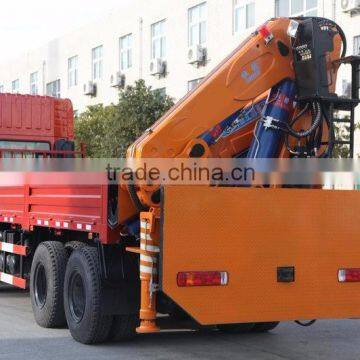

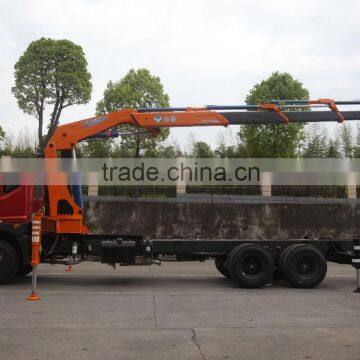

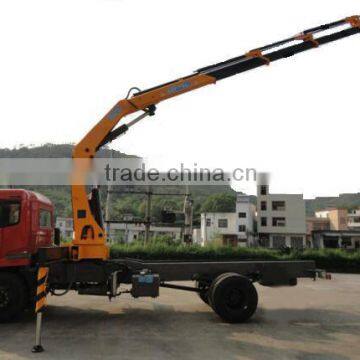

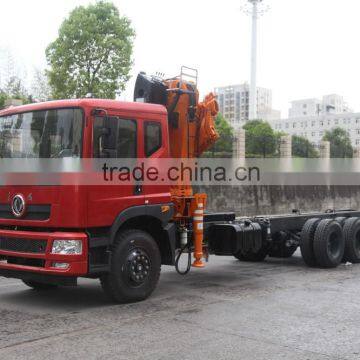

High Quality 12 Ton Knucle Boom Truck Mounted Crane for Sale,SQ240ZB4

FOB Price

US$ 22,600 - 22,700 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Construction Industry
Rated Lifting Moment	240 Kn.m	Max. Lifting Load	12 ton at 2 m
Max. Lifting Height	13 m	Span	2330-5630mm
Place of Origin	Hubei, China	Brand Name	HBQZ
Model Number	SQ240ZB4	Certification	ISO9001:2008 TS16949
Warranty	1year	After-sales Service Provided	Engineers available to service machinery overseas

THE PEFORMANCE ON CRANE MODEL No. SQ240ZB4

Model #	SQ240ZB4/knuckle crane 12 ton at 2 m
Max Lifting Moment	240 Kn.m
Max Lifting Capacity	12000/2.0
	5200/4.23
	2750/7.85
	1700/11.18
Max Lifting Height	13 m
Max Working Radius	11.2 m
Hydraulic extension boom No.s	4 stages
Rotation Angle	360º continuous
Rated Working Pressure	28 Mpa
Oil Tank Capacity	200L
Related Oil Flow	60 L/min
Outrigger Span	2330-5630mm
Outrigger	4 ,Extension, Hydraulic operating.
Crane Weight	4500kg
Installation Space	1420mm
Swing Type	Planetary gear reduction
Safety Device	Load Indicator,Hydraulic Safety Valve,Counter Balance Valve,Automatic Swing Brake,Hook Safety Device
Options	ch,Aux.Boom,Remote control
Material	HG785
