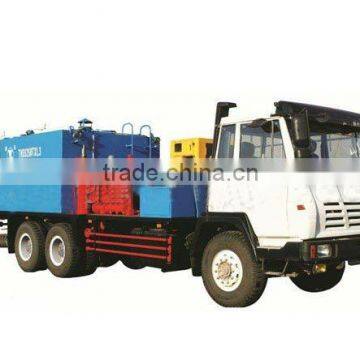

Well Flushing & Dewaxing Unit

Specifications

specifications:

Well Flushing

                                                                                   Technology parameter

1. The Max. lifting load :  10112lbs(in Min. drum spooling diameter).

2. The Max. operation depth of Recovery : 8200ft (2500m)

3. Depth of oil bailer submergence:  350m

4. Operation speed:   11.25ft/s(3.43m/s )(in Max. drum spooling diameter)

                      4ft /s (1.22m/s )(in Min. drum spooling diameter)

5. Derrick height: 45.93ft ( 14m) (from ground to bottom of crown block)

6. The Max. load :26966 IBS

7. Dip angle : 5°

8. Diameter of brake rim×width: φ34.25inch×7.48inch

9. Wrap angle of brake strap: 345°

10. Engine power: 340HP/2200r/min

11. Working pressure of hydraulic system:  12Mpa

12. Model of master hydraulic pump:  CB-F40C-FL

13. Working pressure of pneumatic system: 0.8Mpa

14. Volume of air drum :  98L

15.Overall Dimension (L×B×H)ft : 46.57×8.2×12.79 (move state)

16.Gross Weight: 52910lbs

                                                                           why choose us

1. Description :

This is the best oil bailing and recovery truck you can find on Chinese market. It is mainly used in oil pumping operation of margin oil well and  stripper oil well ,it is applicable in oil pumping operation with well depth within 2500m, it is also can be used in dredging ,through well operations and so on.

2. Welcome to our factory!!!

3. Our product range:

♦ pumping unit/ tubing pump/ sucker rod/ X-mas tree/ casing head/ casing pipe/ tubing pipe/ drill pipe/ polished rod/ coupling

♦ production packer/ water flow regulator/ tubing anchor/ safety joint/ screen pipe/ sand screen

♦ float collar/ float shoe/ casing centraliser/ stop collar/ cementing head/ stage collar/ cement basket/ cementing plug

♦ air cannon/ diesel fuel tank/ water jacket heater/ multifunction pressure vessel/ air tank

♦ mud tank/ shale shaker/ vacuum degasser/ desilter/ desander/ gas-luiquid separater/ mud gun/ centrifuge/ sand pump/ slurry agitator/ shear pump/ cyclone mixing device

♦ container house/ color steel sandwich panel house

♦ belt feeder
