Auto-fill casing float collars and float shoes for substructure of casing string
- 50000 Set / Sets per Month
- China port
- T/T
You May Like
-
high quality floating shoe and floating collar for substructure of casing string
-
Carbon steel Single-valve Float collar with PDC drillable
-
Durable and Reliable Float Shoe and Float Collar for Substructure of Casing String
-
Cement Float Collar&Float Shoe
-
PDC Drillable Float Shoe with API Certificate and Competitive price
-
API 5CT float shoe & float collar for casing, factory price
Product Details
| Brand Name | puyang zhongshi | Model Number | ZS-FS38 | |
| Type | Hydraulic Support | Machine Type | Drilling Equipment | |
| Certification | API | Material | Iron | |
| Processing Type | Forging | Use | Well Drilling |
Product Description
Auto-fill casing float collars
Float collar applications:
Float collar is installed on the casing and up the float shoe. Like float shoe, it also provide buoyancy to the casing string when it’s lowered, reducing the load on the drilling rig. A build-in check valve provides buoyancy to the casing string also prevents cement from re-entering the casing after it’s displaced. It’s a receptacle to cement plug.
Float collar features:
1. All inner parts are made of easily drillable aluminum alloy.
2. The device can be connected directly to the casing of the same type.
3. Reliable back-pressure leak proof structure, enable grout or slurry flow with less resistance.
4. Valve seat and valve disk can effectively prevent grout from flowing back.
5. Non-rotating landing plate is available on request.
6. Either PDC or rock bit drillable.
Float collar technical parameter:
| Size (in) | Bore O.D (in) | Bore I.D (in) | Min.Bore Parameter (in) | Thread Type | Ib (in 2) |
| 5 1/ 2” | 6” | 4 3/ 4” | 2” | 5 1/ 2” LCSG | 4351 |
| 7” | 7 5/ 8” | 6 1/ 4” | 2 3/ 8” | 7” LCSG | 3626 |
| 9 5/ 8” | 10 5/ 8” | 8 5/ 8” | 2 3/ 8” | 9 5/ 8” LCSG | 3626 |
| 13 3/ 8” | 14 3/ 8” | 12 3/ 8” | 2 3/ 8” | 13 3/ 8” LCSG | 3626 |
Float collar API certification :

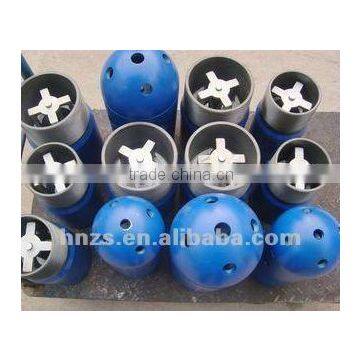

Float collar pictures:
Float collar drawing :
Float collar packaging :
