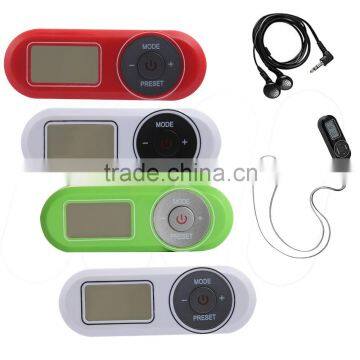

Hot sales FM Scan with PLL digital tuner and auto memory station radio

Hot sales cheapest radio for promotion

1.fm radio
motion gifts radio
fessional radio manufacturer

Digital Display FM Clock Alarm radio

1.       Display                                      12. Alarm 1
2.       “-“button                                   13. Alarm 2
3.       “MODE” button                        14. SCAN
4.       “+” button                                 15. SNOOZE function
5.       strap                                         16. Frequency, time or alarm time
6.       “On/Standby” button                 17. Low battery power
7.       “PRESET” button                     18. Unit of frequency for radio mode
8.       Earphone jack ( at the side)       19. SLEEP timer
9.       Battery compartment cover        20. VOLUME
10.       Opening for buzzer                    21. PRESET
11.       Radio mode                              22. AM/PM (only for 12- hour display)

Battery Installation:

Open the battery compartment at the back of device by sliding the battery compartment cover (9) to the side in the direction of the imprinted arrow and removing it. Insert the battery AAA with the correct polarity.

Connecting the earphones

Insert the jack plug of the supplied earphones as far as possible into the earphone jack(8) on the side of the device.

Setting the time

Press the “MODE” button (3) when the device is switched off. The display (1) indicates the current hour format:”12HR” or “24HR”. Set your desired hour format by pressing the “-” button (2) or “+”button (4). Press the button (3) again. The hour display flashes and you can set it by pressing the button (2) or button (4). Then press the button (3) again. The minute display the flashes and you can set it by pressing the button (2) or button (4). Finally, press the button (3) again. The set time is now indicated on the display (1).

Switching on / off

Briefly press the “ON/Standby” button (6) to switch on the scan radio. Press the button (6) to switch off the scan radio.

Setting the volume

Briefly press button (3) in radio mode. By press button (2) or button (4) to reduce or increase the volume. The setting has no effect on the volume of the buzzer for the alarm clock function, the buzzer volume is always the same.

Automatic station scan with auto store function

Switch on the scan radio with button (6), press the button (3) for approx. 2 seconds to start the automatic station scan. The automatic station scans always start at the lowest frequency. The first 10 stations found are stored directly in the presets 01 to 10 and saved.

Manual station scan

Switch on the scan radio with the button (6), press the button (2) or button (4) for approx. 2 seconds to start the manual station scan downwards or upwards.

Manual saving stations

Press the button (7) for approx. 1 second until “PRESET”(21) flashes on the display(1). Use the button (2) or (4) to select a preset between 01 and 10.

SLEEP timer

With the SLEEP timer, you can set a time between 10 and 90 minutes after which your scan radio automatically switches off. The setting is made in intervals of 10 minutes. Process as switch off the scan radio with the button (6) until the display (1) indicates the number 90 ( for 90 min.) Then press the button (6) repeatedly until you reach the desired number of minutes. You can delete the SLEEP timer by switching off the scan radio.

Setting the alarm time (Alarm 1 / Alarm 2 )

You can set the alarm time only when the device is switched off. Briefly press the button (7). The display (1) indicates “Alarm 1 (12), and when you briefly press the button (7) again, the display indicate “Alarm 2” (13). Select alarm 1 and alarm 2 and briefly press the BUTTON (3) again. The minute display then flashes and you can set it by pressing the button (2) and button (4). Finally press the button (3) again. The display indicates the current time and alarm you just set is active. To deactivate the alarm function, briefly press button (7) until no alarm symbol (12,13) is indicated on the display (1). The alarm function is then deactivated.

SNOOZE function

To pause the alarm tone of approx. 5 minutes, briefly press the button (3) during the signal tone. During these 5 minutes, the corresponding alarm symbol flashes on the display and the “SNOOZE” symbol (15) is indicated. After approx. 5 minutes, the alarm tone starts again. To switch off the alarm tone, briefly press the button (6)

Packing:

White paper box,200pcs/ctn

Carton meas:61.2*47.5*33.5cm

N.W.:11KGS

G.W.:13.5KGS
