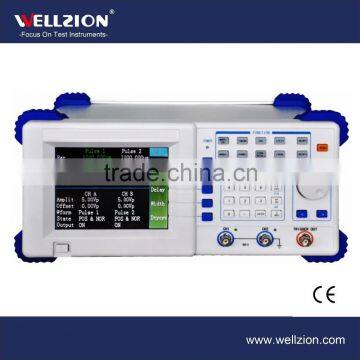

SU5202G,Pulse Generators

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin

Fujian, China

Model Number

SU5202G

Pulse Function;
DDS technology, crystal oscillation reference,high accurate time and frequency;
Data storage and recall

Features and Benefits:

DDS technology, crystal oscillation reference,high accurate time and frequency
Output kinds of pulse signal, continuously or in trigger way
Burst and output the pulse signal singly or with count
Multi-channel of output, external trigger input channel and external standard frequency input channel
5.7” TFT true-color display screen
Chinese-English user-interface

SPECIFICATIONS

Waveform	Pulse waveform	single pulse and double pulse, logical positive and negative pulse
	Rising/Falling time	≤10ns
	Overshoot	≤ 10 % (amplitude: 2.5Vp)
Time	Pulse period range	20ns~10000s
	Time interval range	5ns~10000s
	Resolution	5ns(T≤4s) 10μs(T≥4s)
	Time interval error	±(T×5×10^(-5)+ 5ns) (T≤4s)
Amplitude offset (CH1 and CH2)	Amplitude	Amplitude range	50mVp~5Vp
		Amplitude error	±(2% + 50mV)
		Amplitude resolution	1mVp
		Amplitude stability	±2%/ 3 hours
	Offset	range	±(50mV~5V)
		Offset resolution	1mVp
		Offset error	±(5% + 50mV)
	Output	Output impedance	50Ω
		Output protection	over-heat protection
TTL amplitude (TRIGGER OUT)	TTL/CMOS level	low level≤0.3V,high level≥3V( high-impedance load)
	Output impedance	50Ω
Trigger	Trigger mode	internal, external, manual
	External trigger input	frequency	1Hz~10MHz(square)
		amplitude	1Vp-p~20Vp-p
	Input impedance	≥100kΩ
Burst	Burst count	2~65535 periods
	Burst mode	continuous, single
External standard frequency input	Frequency	10MHz
	Amplitude	≥0.5Vrms
Display	5.7” TFT colorful liquid display, comfortable visually, large information content.
Dimension	330 mm×155 mm×300 mm
Weight	4.2 kg
