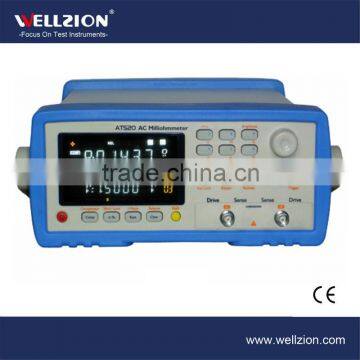

AT520,3.2k Ohm AC Resistance Tester,AC Low ohm Meter,Battery Internal Resistance Meter

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	OEM
Model Number	AT520	Display Type	Digital Only
Measuring Range	1μΩ~3.2kΩ	Testing Voltage	100μV - 60V
Accuracy Class	Resistance: 0.3% Voltage: 0.05% Inductance: 1%	Operating Temperature	- -
Dimensions	264mm(W)107mm(H)350mm(D)

AT520,3.2k Ohm AC Resistance Tester,AC Low ohm Meter,Battery Internal Resistance Meter

Features and Benefits

Four Colors VFD Display
Vector Measurement, 3 Parameters Dispaly
Calibration: Short circuit zero-setting for all ranges
Comparator (sorting) Function): Build-in 30 sets comparators, HI/IN/LOW/GD/NG Display and Output
Four-terminal resistance measurement
Beeper and brightness can be adjusted
Internal,Manual,External and Remote Trig
Build-in RS232C and Handler
Optional GPIB Interface
Compatible with SCPI command sets
Keypad lock and Data Hold functions

Applications:

Specifications

Parameters	AC resistance, DC voltage, X, Z, θ, L,
Accuracy	Resistance: 0.3% Voltage: 0.05% Inductance: 1%
Measurement Range	Resistance: 1μΩ - 3.2kΩ
Measurement Range	Voltage: 100μV - 60V DC Inductance: 10nH - 1H
Signal Source	AC 1kHz, open-circuit voltage < 20mV,measurement current: < 10mA
Range	Automatic and manual with 6 ranges
Speed	20 times/second, 6 times/second, 1 time/second
Result Display	Show, ΔABS, Δ%, θ, sorting results
Max Reading	Resistance: 32,000, Voltage: 60,000
Adjustment	Short-circuit reset for all range, REL function
Comparator	30 groups record, NG-LO, GD-IN, NG-HI display and output.beep is adjustable
Trigger	Internal, manual, and external
Interface	RS232C,Handler interface (PLC)
Others	Detection of damage test wire,four-color vacuum fluorescent screen VFD display, keypad lock and data hold function
General Features
Power Supply	Voltage: 198V AC - 240V AC Frequency: 50Hz, Power: Max 15VA
Dimension & Weight	264mm (Width)x107mm (Height)x350mm (Depth), 4kg
