Home > Products > SMD Buzzer > 7525 SMD BUZZER Magnetic Buzzer Smallest Buzzer
7525 SMD BUZZER Magnetic Buzzer Smallest Buzzer
Negotiable
/ Piece
1000 Pieces(Min. Order)
- shenzhen
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | COSSON | |
| Model Number | SMD-075025H-03027 | Type | Buzzer |
Product Description
7525 SMD BUZZER magnetic buzzer smallest buzzer
1. Type:SMD Magnetic buzzer;
2. Resonant Frequency:2700±300Hz;
3. SPL:min.75dB;
4.Size:7.5*7.5*2.5mm;
5.Rated voltage:3V;
6.Operating voltage:2~5Vp-p;
7.Rated current:MAX.100mA;
8.Coil resistance:12±3Ω;
9. Operating Temperature:-25°c~+70°c;
10. Storage Temperature:-30°c~+80°c;
11.Weight:0.3g;
12.Case material and colour:LCP(black);
13.Environmental Protecti Regulation:RoHS;

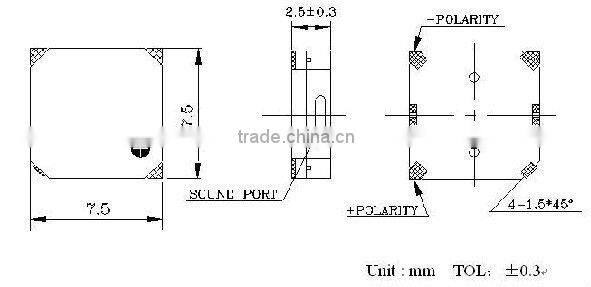

14.OUTLINE DRAWING:

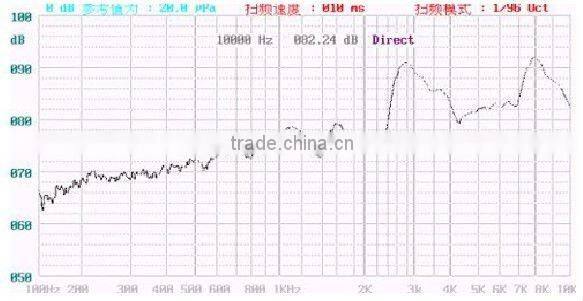

15.FREQUENCY characteristics:
