10mm,1MHz Piezoelectric Ceramic Transducer
Negotiable
/ Piece
1000 Pieces(Min. Order)
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | COSSON | |
| Model Number | KS-10-1.0BY | Type | Other, ultrasonic transducer |
Product Description

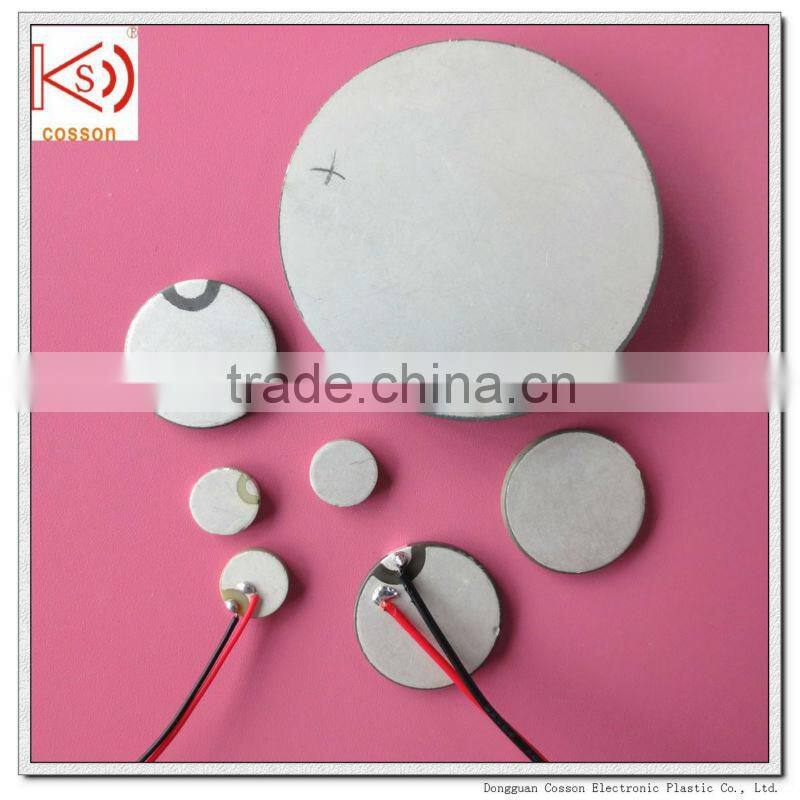

1mhz piezoelectric ceramic transducer
1. Diameter:10mm;
2.Thickeness:2mm
3.Electric-:≥0.62
4.Coupiing:≥0.47
5.Relative:1800±200
6.QM:1400±300
7.Curie:300°C
8.Density:7.6*103KG/m2
9.Piezoelectric:≥290*10+2C/N
10.resonance frequency:1MHZ±10%(160±5KHZ)
11.Resonant impedance:≤5 Ω
12.electrostatic capacity:1900±20% pF
13.Disspation:≤0.4%
14. Dimension :
KS-10-1.0BY | |
D | 10 |
δ | 2.0 |
15.Other similar products:
