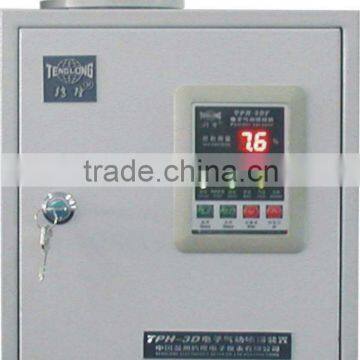

TPH-3DF offset printing spray powder Electronic powder spray machine for pvc film making machine

Specifications

TPH-3DF Series Electronic pneumatic powder spray equipment

Main parameters

Powder system TPH-3    1 voltage: AC220V±10%, DC24V

                                         2 frequency: 50/60HZ

                                         3 rating: 120W(AC220V), <72W(DC24V)

                                         4 current: 1A(AC220V), <3A(DC24V)

                                         5 protection category: IP52

System pressure            1 powder jet: 9mbar±1mbar

                                        2 jet guard: 5mbar±0.5mbar

Operating condition        1 temperature: 0-+40°c

                                        2 relative humdity: ≤93%/+40°c

                                        3 altitude: ≤1000m

Storage condition           1 temperature: -25-+80°c

                                        2 relative humdity:≤93%+40°c

                                        3 altitude: ≤1000m

Powder application module   1 operating temperature: ≤+80°c

Storage conditions                1 relative humdity: ≤93%+40°c

Compressor                          1 voltage: 3×AC220V ±10% or single-phase AC220V

                                              2 frequency: 50HZ

                                              3 connecting load: 370W

                                              4 current: 0.97A three-phase, 2.8A single-phase

                                              5 motor protection switch setting: 1A three-phase, 2.9A single-phase

Features

1: Max printing speed can be up to 20000 sheets per hour

2: The quantity of the powder, the length of paper and the width of the paper can be set and kept for reuse;

3:  The  quantity of the powder can be saved 70% with obvious less pollution to the printer and the environment;

4: Operating procedure display his symbol and graphics by the LCD or set by the digital tube and touch switch; it  is convenient to operate and intuitive;

5: Add the powder no need to stop the machine

6: The quantity of powder can be compensated automatically according to the printer's speed and the width of the paper

7: Modulare construction with optimum case of servicing

8: Spray bar mit circuit-jet spray nozzle provides a stable powder jet substantial reduction of the proportion of powder that sprays.
