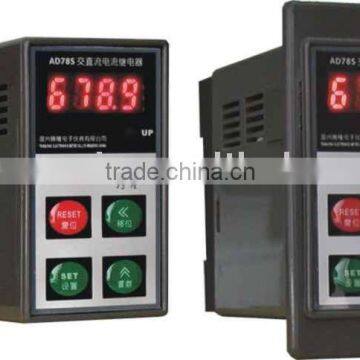

AD78S Intelligent current relay

Specifications

AD78S Intelligent current relay

Main parameters

1 type: AD78S-1 Electronic DC undercurrent relay and AD78S-2 Electronic AC overcurrent relay

2 rated voltage:  AC110-240V, AC24V,50/60HZ, 85-110% of rated voltage

3 working temperature: -10-45°c

4 output contact capacity: AC240V3A (resistive load)

5 power consumption: 240V50HZ≤3W

6 measuring accuracy: 5% of rated voltage

7 operating setting accuracy: 2.5% of rated voltage

8 release setting accuracy: 2.5% of rated voltage

Feaures

1 AD78S-1 can be matched with current mutual inductor among AC5-5000A/5A and DC under 5A;

   AD78S-2 can be matched with all the diverter among 10-10000A/75mv

2 with 4 digits of LED digital tube display, matched with touch switch, the set point can be set in all

  the ranges and all the parameters can be set accurately;

3 over-current and under-current can be both protected set by touch switch;

4 starting delay and over-current can be set separately;

5 AC frequency 50/60hz are available;

6 2 types of reset mode: automatic and handle are available

Abstract

   AD78S Intelligent electric current relay is our latest researched product on the basis of JL18S DC relay and GL28S AC relay; compared with JL18S and GL28S., it has more function, high setting accuracy and is more convenient to operate.

   AD78S Intelligent electric current relay can be divided into 2 types of AD78S-1 and AD78S-2. It is applied to AC5-5000A and over-current or under-current under DC 5A; AD78S-2 is applied to all the places where need control the over-current or under-current between DC10-10000A.

  This product is widely used in electrical machinery, transformer and the electric transmission line of over-load and short-circuit as a protecting component.
