5V 10KA video low voltage surge protection device
- 10000 Set / Sets per Month
- guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
5KA low voltage video signal surge protection device
-
3KA low voltage video surge protection device
-
36V 10KA kilomega computer spd surge protective device
-
5KA POE rj45 surge protection device
-
6.8V/12V/24V Data line lightning arrester surge protection device
-
Data line lightning arrester 12V - 24V surge voltage protector price trade assurance
Product Details
| Place of Origin | Guangdong, China | Brand Name | Haide | |
| Model Number | HD-XH |
Product Description
Specifications
low voltage surge protection device1.CE certificate &ISO9001& Test report
2.Convenient to maintain
3.Video signal spd

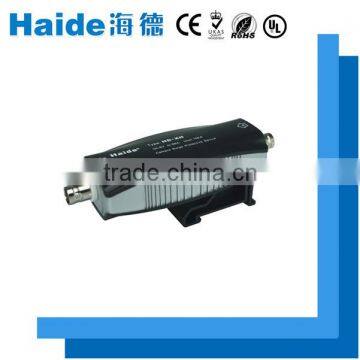

5V 10KA video low voltage surge protection device
The product has the advantages of fast action time, little insertion loss, accurate clamping and low output residual voltage, can effectively restrain over-voltage pulse inducted on the signal transmission line of a camera gun to protect a video monitoring device from damage due to over-voltage pulse, is a new video signal protection product, and is suitably used in video monitoring devices such as the camera gun, a video distributor and a video matrix switcher.
| Model | HD-XH |
| Nominal working voltage Un | ±5V |
| Maximum continuous working voltage Uc | ±6.8V |
| Nominal discharge current In(8/20 us) | 5KA |
| Maximum discharge current Imax(8/20 us) | 10KA |
| 1KV/us Voltage protection level Up | 26V |
| 90V | |
| Response time Ta | ≤1ns |
| Band width FG | 40MHZ |
| Operating temperature range Tup | -40℃ to +80 ℃ |
| Insertion resistance | ≤4Ω |
| Insertion loss | ≤0.2dB |
| Protection grade | IP30 |
| External dimension | 74*25*25mm |
| Interface mode | BNC |
| Sheathing material | shielded metal aluminum |
1.. ISO9001&CE certificate &Test Report
2..Any inquiries will be replied within 24 hours.
3..Professional manufacture. Welcome to our website:http://gzhaidefanglei.cn.china.cn/
4..High quality, fashion designs, reasonable &competitive price, fast lead time.
5..OEM available.
6..After-Sale Service:
- Provide technical advice and maintenance knowledge and installation guide.
- Customers response time for one working time.
- All the products provide five year commitment to service.
- All the products are accompanied by China Pacific property insurance co;ltd.
7..Fast delivery
Sample order in stock, and 7-15 days for full production.
8..Terms of payment
You can pay for the order via: T/T, Western Union, PayPal &Money Gram.
9..Shipping
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Port. You also can choose your own shipping forwarder.
10.Quality warranty
one year replacement, five years warranty.
low voltage surge protection device
