220V 40KA parallel connection spd lightning arrester price trade assurance
US$ 5 - 10
/ Set
10 Sets(Min. Order)
- guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
220V 20KA parallel connection spd price trade assurance
-
220VAC 5KA 0.6KV LED streetlights surge protector trade assurance
-
220VAC 10KA 1000V LED streetlights power surge protector trade assurance
-
277VAC 10KA 1200V LED protector surge price trade assurance
-
220v 10ka PDU 6 outlet whole house surge supressor protective
-
220v 10ka PDU 6 outlet whole house surge supressor protective
Product Details
| Place of Origin | Guangdong, China | Brand Name | Haide | |
| Model Number | HD-D220X-XS40/20 |
Product Description

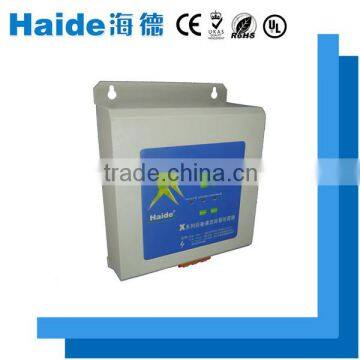

220V 40KA parallel connection spd lightning arrester price trade assurance
spd lightning arrester price trade assurance
Electric surge protector of backup protection low-voltage distribution system, which is the form of a box, is designed according to IEC standard. It adopts advanced backup through-flow capacity technology and MOV matrix power supply lightning protection technology, and can restrain the ultraharmonics when the discharge path of lightning arrester is working normal as well as cooperate with discharge path to reduce the residual pressure effectively. It has the function of invalidation detection indication. With large discharge capacity of lightning current and low residual pressure, it’s applicable to the protection of buildings’ power system against lightning .This lightning arrester is very convenient to be maintained. It connects with the circuit in parallel and has no limit to the power of equipment fixed later. It has been registered as the patent product of Haide Lightning Protection Corporation.
| Model | HD-D220X-XS40/20 | HD-D220X-XS20/10 |
| Nominal working voltage Un | 220V | 220V |
| Maximum continuous working voltage Uc | 275V | 275V |
| Lightning surge current Imax(8/20us) | 40KA | 20KA |
| Nominal discharge current In(8/20us) | 20KA | 10KA |
| Backup through-flow capacity Imax(8/20 us) | 20KA | 1oKA |
| Voltage protection level Up | 1.2KV | 0.9KV |
| Response time Ta | ≤25ns | |
| Operating temperature range Tup | -40℃ to +80℃ | |
| Working order indication | green light means normal working,red light is fault indication | |
| Protection grade | IP20 | |
| External dimension | 220x310x105mm | |
| Sheathing material | mellozing | |
| Mode of connection | parallel connection | |
| Protection mode | 4+0/3+1/1+1/2+0 | |
1.. ISO9001&CE certificate &Test Report
2..Any inquiries will be replied within 24 hours.
3..Professional manufacture. Welcome to our website:http://gzhaidefanglei.cn.china.cn/
4..High quality, fashion designs, reasonable &competitive price, fast lead time.
5..OEM available.
6..After-Sale Service:
- Provide technical advice and maintenance knowledge and installation guide.
- Customers response time for one working time.
- All the products provide five year commitment to service.
- All the products are accompanied by China Pacific property insurance co;ltd.
7..Fast delivery
Sample order in stock, and 7-15 days for full production.
8..Terms of payment
You can pay for the order via: T/T, Western Union, PayPal &Money Gram.
9..Shipping spd lightning arrester
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Port. You also can choose your own shipping forwarder.
10.Quality warranty
one year replacement, five years warranty.
spd lightning arrester price trade assurance
