Design Steam Fin Tube Heat Exchanger

Stainless Steel Industrial Heat Exchanger

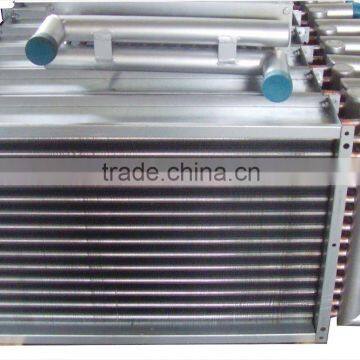

The heat exchanger (radiator) is equipped inside the stenter heating chamber, a  stenter chamber is usually equipped with 1 0r 2 heat exchangers.A blower motor outside will boost the circular hot air through a heat exchanger to dry the cloths.

Technical information:

1. Heat exchanger is made by φ21X2.0-45mm GB8163 seamless steel tube with extruded aluminum fin;

2. Surface tube No.:15 tubes, row No.:4 rows;

3. Design pressure:1.5MPa,design temperature:300°C;

4. Connector:∅60X3.0mm connecting tube;

5. Fin height:12mm,thickness of fin:0.3mm,fin distance:3.0mm;

6. Material: fin is aluminum, others are all carbon steel;

7. tube pass: 4 paths;

8. Surface treatment: Sprayed with high temperature silver paint;

9. Way of use:2 heat exchangers in 1 series;

10. Working condition:Blower:7.5KW,temperature:230°C,hot medium:300°C thermal oil;

11. Recommended boiler: 1.2 million kilocalorie thermal oil boiler.

We specialized in deisigning and manufacturing heat exchanger for about 10 years,

we can not only supply the equipment parts for you, but also supply good solution for your heating/cooling system. Any enquiries from you are warmly welcome.
