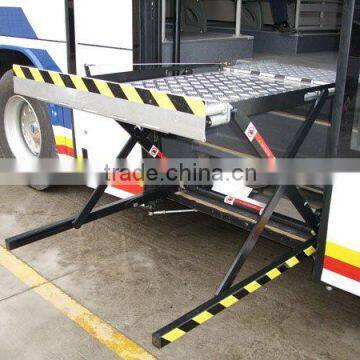

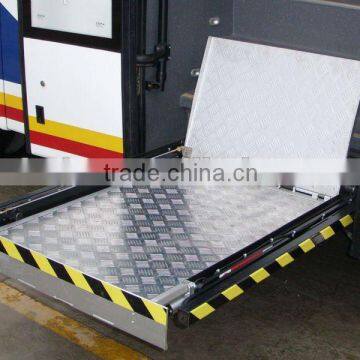

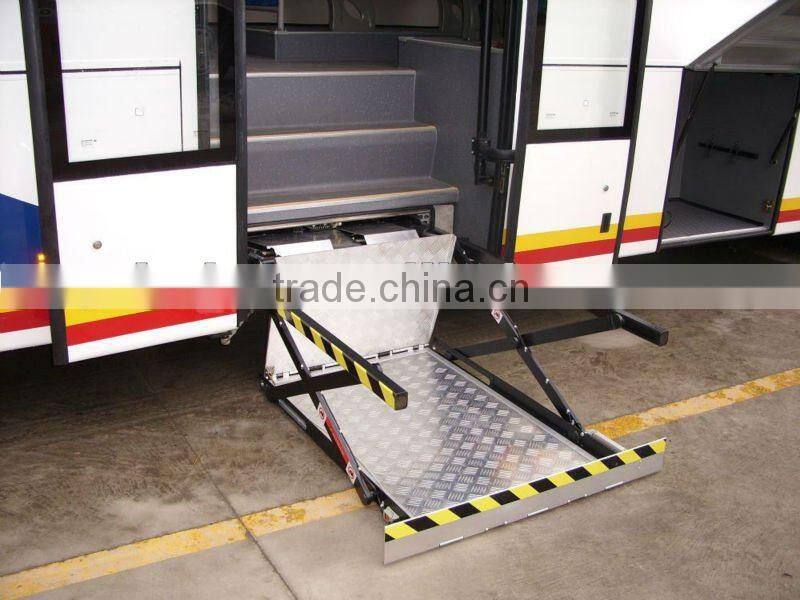

CE Hydraulic Platform Lift Under Vehicle Floor

1. INFORMATION

WL.UVL Series wheelchair lift is installed under vehicle floor. It is operated easily, safe and reliable,

with load capacity 350KG. The wheelchair occupant, attendant or driver can operate it by operating

switches.

It uses hydraulic power unit, stable when hydraulic lift up, save up electricity when gravity decline. With optional standard kit manual emergency devices, if the lift without power, it will be operated manually by more than 2 staffs.

It is important to user safety that lift operator.be completely familiar with the operating instructions. Once the lift is installed, it is very important that the lift be properly maintained by following the Xinder recommended cleaning, lubrication, and inspection instructions. If there are questions about this series lift, or additional copies are needed, please contact Xinde-Tech.

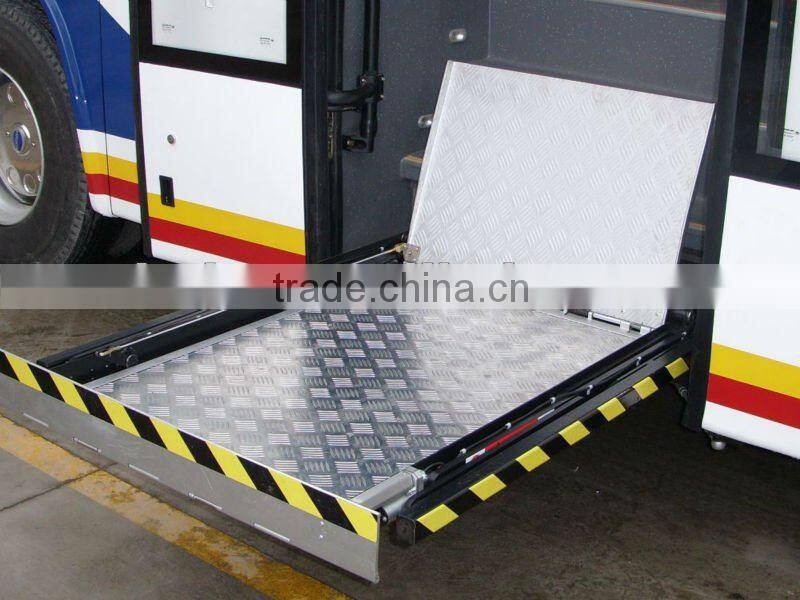

2.PRODUCT SHOW:

3. ADVANTAGES

Ø Electric outboard rollstop and automatic inboard rollstop

Ø Super thin compact design

Ø No-skid aluminum honeycomb platform

Ø Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs

Ø Dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.

Ø Side handrails (Option), for increased comfort and security

Ø Sound and flash light alarm during operation of platform

Ø Built in manual backup system

4.TECHNICAL SPECIFICATION

¨ Raise lift platform: motor drive, hydraulic function;

¨ Lower lift platform: pressure release valve of power unit control velocity of flow to provide gravity function;

¨ Raise platform manually: operate manual pump;

¨ Lower platform manually: rotate button of manual pressure release valve with specialized tool;

¨ Movement of front & rear rollstop: electric drive(front rollstop), mechanical drive (rear rollstop);

¨ Model & Capacity of hydraulic oil: L-HV46
