WL-UVL Series Wheelchair Lift for Bus
- SHANGHAI
- Credit Card
You May Like
-
CE Hydraulic Platform Lift Under Vehicle Floor
-
WL-UVL Series Under Vehicle Wheelchair Lift for Bus
-
XINDER WL-STEP Series Power Tailgate Lift Wheelchair Lift for Bus
-
Chinese CE Product WL-T-1000G Rotating Series Wheelchair Lift on Tourist Bus Coach for Disabled
-
WL-UVL-1300-S Hydraulic Wheelchair Platform Lift for the Elder
-
WL-UVL-700S-1090 Hydraulic Platform Disabled Elevator Lift for Van Loading Electric Wheelchair
Product Details
| Place of Origin | Jiangsu, China | Brand Name | XINDER | |
| Model Number | WL-UVL | Lift Drive / Actuation | Hydraulic | |
| Power | 0.8w | Rated Loading Capacity | 350kg | |
| Min. Lifting Height | 700mm | Max. Lifting Height | 1600mm | |
| Table Size | 751*1220/751*1297mm | Overall Dimensions | 1995*1135*166/2070*1135*166 | |
| Weight | 195KG | Certification | CE | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1. INFORMATION

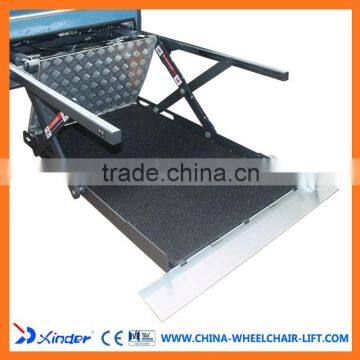

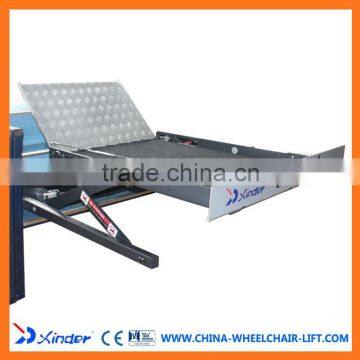

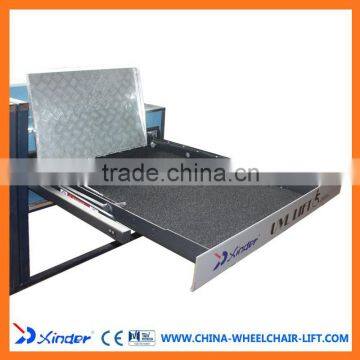

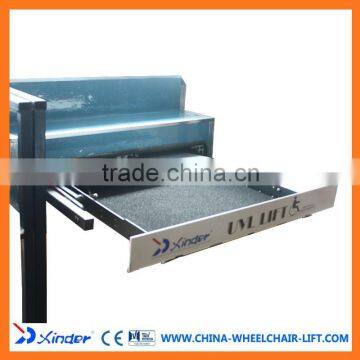

WL.UVL Series wheelchair lift is installed under vehicle floor. It is operated easily, safe and reliable,
with load capacity 350KG. The wheelchair occupant, attendant or driver can operate it by operating
switches.
2. ADVANTAGES
Ø Electric outboard rollstop and automatic inboard rollstop
Ø Super thin compact design
Ø No-skid aluminum honeycomb platform
Ø Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs

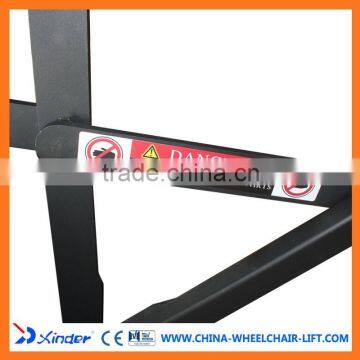

Ø Dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.
Ø Side handrails (Option), for increased comfort and security
Ø Sound and flash light alarm during operation of platform
Ø Built in manual backup system
3.TECHNICAL SPECIFICATION
Model | Voltage | Motor power | Pressure | Cylinder diameter&stroke |
UVL-700/1000 /1300 | 12V/24V | 0.8Kw | 2500Psi | Φ60X70 unidirectional operation |
Max lifting load | Max lifting height | Voltage | Len & width of platform |
350 Kg | 700 -1600mm | 12/24 V | 751*1220/751*1297mm |
