Home > Products > Drilling Equipment > Kaishan KT20 Bore Well Drilling Machine Price
Kaishan KT20 Bore Well Drilling Machine Price
- ShangHai or NingBo
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Brand Name | KaiShan | |
| Model Number | KT20 | Usage | Ore | |
| Power(W) | 239 | Dimension(L*W*H) | 11500*2700*3200mm | |
| Weight | 23000 | Certification | ISO9001 | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Welcome to SHAANXI KAISHAN EQUIPMENT CO.,LTD. Best quality goods, lowest price, perfect service.
Cooperation terms:
1. Price: FOB any port in china.
2. Minimum order: 1set.
3. Payment: T/T, L/C, O/A ect.
4. Shipping: 15-20days.

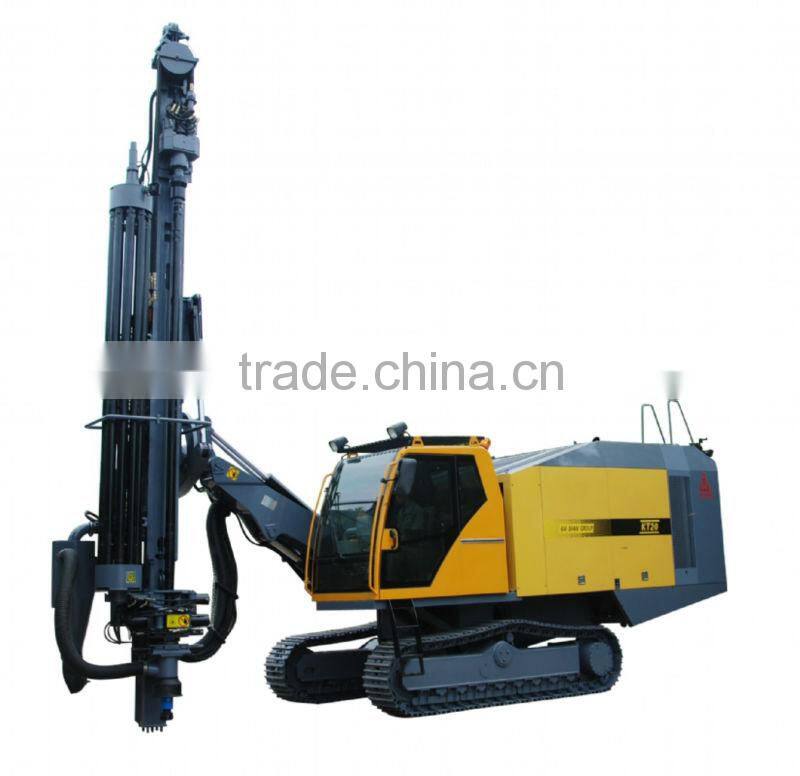

Kaishan kt20 crawler drilling rig machine
• Automatic releasing rod system disk type, automatic releasing rod drilling depth of 36
meters.
• he caterpillar engine, a strong driving force, reliable performance.
•The single engine two ends of the output layout, compact structure,convenient repair.
•High pressure and large discharge air compression system (22m3/min, 20bar) to ensure fast
drilling hammer.
•Adopting imported hydraulic parts and electrical.
KT20 Specifaication | |||
Rock Hardness | f=6-20 | Carriage pitch angle | 125° |
Hole diameter (mm) | 135-190 | Carriage swing angle | R97°L33° |
Drill Depth(m) | 36 | Sliding frame lateral swing angle | R42°~15° |
Walking speed(Km/h) | 3.0 | Drill arm swing angle | R42°L5° |
Climing capacity | 22° | Frame leveing angle | UP42° Down20° |
Ground clearance(mm) | 430 | advacing srroke mm | 4000 |
Power(Kw) | 287 | compreation length mm | 1200 |
Diesel | C11 | Drill rod | φ102x4000mm |
Screw machine exhaust aolume(m³/min) | 22 | Dust collecting mode | Dry |
Screw machina exhaust pressure(bar) | 20 | Collecting rod | Atomatic loading and unloading mode |
Dimension(mm) | 11500×2700×3200 | Atomatic protection card | Electro-hydraulic control card |
Weight(Kg) | 23000 | Drill pipe lubrication | Atomatic lubrication |
Rotating speed (r/min) | 0-107 | Drill pipe thread protection | With the floating joint protection drill pipe thread |
Rotary torque N*m | 4100 | Drilling angle indicator | Two dimensional electron angle indicator |
Our Company:
1. Shanxi Kaishan Mechanical & Electrical Equipment Co., Ltd. is located in a
Beautiful ancient City - Xi'an. Since founded more than 10 years ago, our
company has accumulated much experience in the business of air compressors
and drilling rig machines
2. National Free-inspection Product,Have passed ISO9001 certification.
3. Good Service, competitive price, high quality, fast shipping and perfect after
sale service.
Welcome to visit our factory and would like to start the cooperation with you in the near future.
