Kaishan KY120 New Rock Drilling Rigs for Sale

Welcome to SHAANXI KAISHAN EQUIPMENT CO.,LTD.

Best quality goods, lowest price, perfect service.

Cooperation terms:

 1. Price: FOB any port in china.

 2. Minimum order: 1set.

 3. Payment: T/T, L/C, O/A ect.

 4. Shipping: 15-20days.

Kaishan high efficiency KY120 Quarry Mining blasting  drilling rigs equipment

1.Drill Depth :18-40m

2.Drill Diameter : 76-165mm

Moving type : crawler mounted

Power type : hydraulic-pneumatic type , pneumatic type,

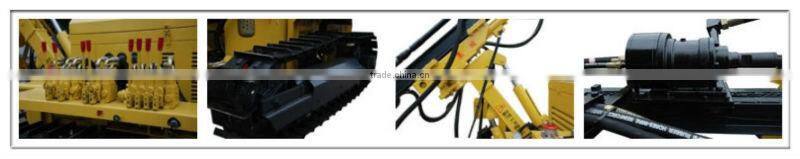

A. Powerful feeding mechanism and rotating system
1. Rotating system driven by high power hydraulic motor provides strong torque reserve and reduces the sticking drilling probability.
2. Feeding mechanism driven by high power hydraulic mot or can generate 20KN lifting power. Adjusting the pressure regulating valve on the control valve can get favorable driving power required by the working condition.

B. Adjustable boom
Boom is adjustable. The angle of drilling hole and height of horizontal hole can be adjusted by controlling the stretch-out and draw-back of the hydro-cylinder.

C. Reliable Hydraulic Pump System

1. Oil supplied by two independent gear pumps, reliable operation, strong adaptability, easy maintenance. 2. Adopt gear transmission and soft connection, possessing compact structure and stable operation.
3. Adopt special hydraulic components. That improves the system’s stability and reliability.
4. Install oil liquid cooling device, to eliminate the exothermic hydraulic oil’s influence to the system.

D. Centralized Operating System

1. Designed with advanced hydraulic system and functional gas supply system, all actions can be centralized controlled, easy to operate.

2. Running the hydraulic operating valve can lift or swing the boom, and adjust the pitching, swing angle and forward or backward moving of drilling rig, and also level the crawler.

3. Running the pneumatic operating valve can open the oil pump, and realize the crawler drilling rig’s function of lifting, rotating and impacting, to ensure the high efficiency rock drilling.

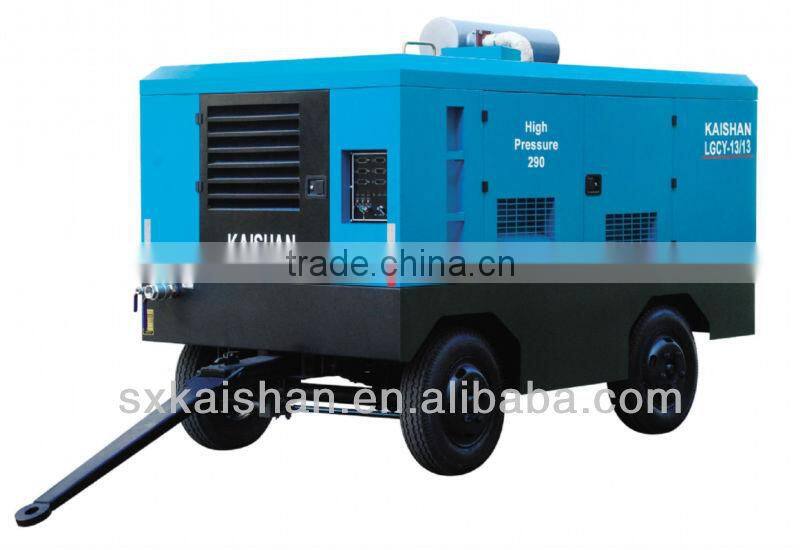

Auxiliary Power:  KaiShan LGCY13/13 Diesel mobile screw air compressor

Our Company:

1.  Shanxi Kaishan Mechanical & Electrical Equipment Co., Ltd. is located in a

     Beautiful ancient City - Xi'an. Since founded more than 10 years ago, our

     company has accumulated much experience in the business of air compressors

     and drilling rig machines

2.  National Free-inspection Product,Have passed ISO9001 certification.

3.  Good Service, competitive price, high quality, fast shipping and perfect after

     sale service.

Welcome to visit our factory and would like to start the cooperation with you in the near future.
