main pipe and branch pipe orthogonal intersecting 6 axis cnc plasma square pipe cutting machine
- Qingdao
- T/T Credit Card
You May Like
-
automatic irregular steel tube cnc plasma cutting machine
-
branch pipe and outer wall intersection carbon steel square tube cnc plasma cutting machine for steel structure
-
china best selling Square Steel tube/pipe profile cutting machine
-
multiple branch pipes intersecting Square tube cnc plasma bevel cutting machine
-
china high quality automatic cnc square pipe plasma cutting machine
-
cnc square and rectangular tube/ pipe plasma cutting machine
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Jisheng | Model Number | FG series | |
| Voltage | 380V | Rated Power | upon actual model | |
| Dimension(L*W*H) | upon actual model | Weight | upon actual model | |
| Certification | ISO9001,CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

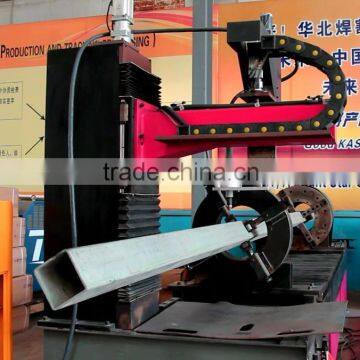

main pipe and branch pipe orthogonal intersecting 6 axis cnc plasma square pipe cutting machine
6 axis cnc plasma square pipe cutting machine is a special pipe cutting equipment.different shapes can be well cut on irregular pipes automatically after data input via control system,with calculation and programming unnecessary,This machine is widely used for pipeline cutting in industries such as construction,Chemical, shipbuilding, machinery engineering, metallurgy,electricity etc.
Feature:
1.3D space cutting solutions, can cut rectangular, conical, polygonal fittings and profiles and other three-dimensional cutting tasks.
2. Systems can be customized to special specifications and applications.
3. User-friendly interface design, easy operating, visualized cutting and calibration process, DSTV NC standards included.
4. expandable raw materials library(including GB, JIS, and ASTM).
5.Rich and extensible raw material library covering GB, JIS, ASTM; complete bevel types such as fixed angle, fixed point, fixed,AWS,etc.
Technical Parameters:
6 axis cnc plasma square pipe cutting machine | |||||||
1 | model | FG-4 series | FG-5series | FG-6 series | |||
2 | Effective cutting length | 4-12 m or as required | |||||
3 | Effective lifting stroke | 200mm or as required | |||||
4 | wall thickness | Oxy-fuel:6-60 mm; | |||||
5 | Applicable material | Square tube,rectangular tube,round pipe,etc | |||||
6 | Cutting mode | Plasma cutting,oxy-fuel cutting | |||||
7 | Idle running speed | max.8 m/min | |||||
8 | Cutting speed | 10~6000 mm/min | |||||
9 | Number of axis | 4 axle | 5 axle | 6 axle | |||
10 | Max. Axial swing angle of torch | N/A | α=±60° | ||||
11 | Max. radial swing angle of Torch | N/A | β=±65° | ||||
12 | accuracy | Cutting accuracy | ±1.5 mm | ||||
Repositioning Accuracy | ≤±0.2 mm/1000mm | ||||||
13 | Supported Drawing software | SolidWorks, AutoCad | |||||
14 | Clamping type | chuck | |||||
15 | Loading/uploading | manual | |||||
16 | Control system&software features | Windows interface; | |||||
Working videos:
6 axis cnc plasma square pipe cutting machine
/watch?v=O1BGhJ7DMgg
/watch?v=UbOiZGhZNNM
/watch?v=U8ckiDUi_yE
/watch?v=g-_-6l3y4q4
Application & Sample Products:
Applicable Industries:
Packaging:6 axis cnc plasma square pipe cutting machine packaged in standard export plywood case
Delivery:25 working days after payment.
Warranty:
One year warranty for the whole machine;
After-sales Service
1.Free operation video for installation,any technical problems can be well settled via email,telphone and other online communication tools.
2.Oversea service by our engineers can be provided,if required,foreign customers are welcome to our factory for free on-site traning on installation and operation.
3.Free upgradion of nesting softwares.
4.Free technical recommendation and solution for welding and cutting by experienced engineers
We,Jinan Jisheng CNC Equipment Co.,Ltd,are professional manufacturer and exporter specializing in R&D,production and sales of CNC equipments.Our products include CNC oxy-fuel cutting machines,CNC plasma cutting machines,CNC laser cutting machine,CNC pipe profile cutting machines,cnc square/rectangular tube plasma cutting machine,etc.
Dedicated to the principle of quality always comes first,now we can provide high quality CNC machines for customers home and abroad,which have been exported to more than 20 countries worldwide.
Why Us:
1.Professional manufacturer specializing in CNC cutting machines;
2.Trusted gold supplier of Alibaba;
3.Experienced and professional sales and service team;
4.Professional solutions on cnc cutting and welding;
5.Years experiences of sales,repair and oversea service.
