Home > Products > Microphone unit > Electret Condenser Microphone Element For Electronic Sound Product

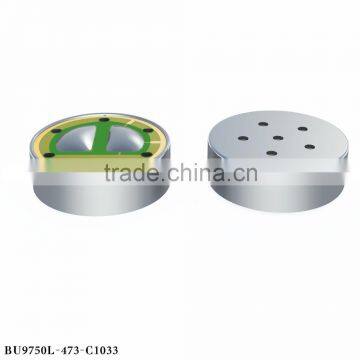

Electret Condenser Microphone Element For Electronic Sound Product
- shekou Shenzhen
- T/T Credit Card
You May Like
-
1662 Uni-directional Electret Condenser Microphone Element for Recording Microphone
-
6mmx3.5mm 6015 mic high sensitivity -47dB microphone unit omnidirectional
-
Uni-directional Electret Condenser Microphone for Recording Mic
-
8050 Electret Condenser Microphone for Noise Cancelling Function
-
4015 Microphone Capsule,Electret Condenser Mic Component
-
Condenser Large Diaphragm Microphone Capsule,Mic Component for Studio Music Recording Microphone
Product Details
| Place of Origin | Guangdong, China | Brand Name | Rayking | |
| Model Number | BU9750L-473 | Type | Microphone |
Product Description
Product Specifications
MODEL
BU9750L-473
Electro Acoustic Specifications
Directional Characteristic: UNI-Directional
Sensitivity:-47±3 dB
Operating Voltage:1.0~10V
Impedance:0.68(Max) KΩ
Current Consumption: <500μA
S/N Ratio ( A weighted network):70(Min) dB
Maximum Input Sound Pressure Level:115dB
MEASUREMENT CIRCUIT
RL=680Ω |
Vs=1.5V |
C1=10pF |
C2=33pF |
TYPICAL FREQUNENCY RESPONSE
APPEARANCE DRAWING
Advantages:
1.Stable performance ,reliable quality and competitive price
2.Professional in R&D
3.Quality system certification
Package :
1.Sample in stock.
2.Goods package in box with foam and delivery by discout expresss
Shipping:
It depends on the quantity ,please email us for concret date.
1. The price depends on the quantity.We can offer you the best competitive price at the market with the same even better quality.
2.We can provide technology support
3. Top Quality+Reasonable Price+Responsible After Service=Successful & Win.
4. Help you design OEM&ODM or any your customized parameters and put into production.
5. Distributorship are offered for your unique design and some our current models
1.What about minimum order quantity?
A:10 piece,1000pcs for our regular package and delivery.
2.Can i have the free sample test?
A:yes,if you need ,we can provide the regular product for your test first.
3.How about the delivery time?
A:Generally,we use express to delivery since our product is very small,and for the exact shipment time,pls email us.
4.While supplying the same products, why is the quotation of other manufacturers lower?
A:The products we have are high-end ones with good quality, so the price is relatively high.
5.How will you control product quality?Are your products environmental ? Could you please provide ROHS report?
A: We strictly control every detail of production ,and every product is inspected byour QC team before delivery.Our products are environmental and we could provide ROHS report
