Home > Products > Wood Working Machine > Double Side Calibrating Sander Model SR2A 16D

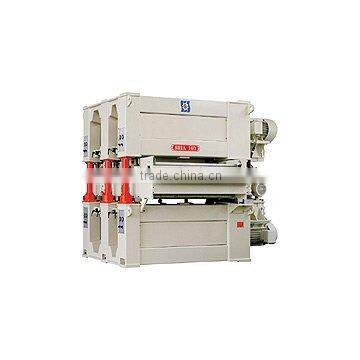

Double Side Calibrating Sander Model SR2A 16D
USD $2,600 - $3,000
/ Set
1 Set(Min.Order)
- 300 Set / Sets per Month
- qingdao
- T/T D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | tlead | Model Number | SR2A 16D | |
| After-sales Service Provided | No overseas service provided |
Product Description
Parameter
| Parameter | SR2A 16D | |||
Working Width | 100~~1600mm | |||
Working Length | >900mm | |||
Working Thickness | 3~~120mm | |||
Sanding Belt | Front | 26 m/s | ||
Rear | 24 m/s | |||
Size of Sanding Belt (W × P) | 1670 × 2850 mm | |||
Feeding Speed | 6~~30m/min | |||
Power | Main Motor | Front | 90kW × 2 | |
Rear | 75kW × 2 | |||
Feeding Motor | 15kW | |||
Lifting Motor | 3kW | |||
Brush Motor | 1.1kW × 2 | |||
Compressed Air | Pressure | 0.6 MPa | ||
Air Consumption | 0.3 m 3 /min | |||
Suction Air Consumption | Volume | 42000m 3 /h | ||
Pressure | 1300Pa | |||
Average Air Speed | 25~~30m/s | |||
Net Weight | 33T | |||
All rights for technical modifications reserved.
Characteristics
The sanding roller is disposed by using foreign technology.
The machine adopts the advanced computer terminal that makes the operation easy and clear.
The conveyor table is supported by precision ball screws, providing extremely smooth and accurate table elevation.
The main parts is foreign technology of no weldment.
Workpiece is in ± 0.1 mm.
The machine adopts the advanced computer terminal that makes the operation easy and clear.
The conveyor table is supported by precision ball screws, providing extremely smooth and accurate table elevation.
The main parts is foreign technology of no weldment.
Workpiece is in ± 0.1 mm.
