Home > Products > Wood Working Machine > Wide Belt Planer/sander

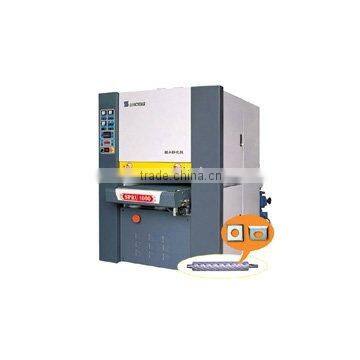

Wide Belt Planer/sander
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Bench Planer | |
| Place of Origin | Shandong, China | Brand Name | TLead | |
| Model Number | SPRU 1000 | Voltage | 380V | |
| Power(W) | 3kw | Dimension(L*W*H) | 1300*1100*1500 | |
| Weight | 600KG | Certification | ISO | |
| Warranty | 1 year | After-sales Service Provided | No overseas service provided |
Product Description
Characteristics:
It is high efficient and econmy that sanding after planing comes from the combination of planing drum,roller sanding unit and combinatory sanding unit.
Conversioning speed-adjusting bevel-worm driving and high quality conveyer belt make transmission smooth and stable.
Spiral plane drum is equipped with four–edge cutter blades(14×14×12 mm ),which are non-resharpen, super stiff and convenient for replacing.
Model | SPRU 1300 | SPRU 1000 | SPRU 600 |
Working width | 40~1300mm | 40-1000mm | 40~600mm |
Working thickness | 3~100mm | 3-100mm | 3~100mm |
Working length | ≥ 590mm | >500mm | >500mm |
No.1 abrasive belt speed | 19m/s | 18m/s | 18m/s |
No.2 abrasive belt speed | 18m/s | 16m/s | 12m/s |
Feed speed | 4~20m/min | 4~20m/min | 4~16m/min |
Size of abrasive belt (W × P) | 1330 × 2500mm | 1030×2200mm | 630×1900mm |
Total motor power | 77.12kW | 58.6 kW | 30.32 kW |
Main motor power | 22, 30, 18.5kw | 18.5, 18.5, 18.5,kw | 11, 11, 5.5kw |
Working air pressure | 0.55MPa | 0.55MPa | 0.55MPa |
Consumption of compressed air | 0.1 m3/min | 0.1 m3/min | 0.1 m3/min |
Volume of sucked air | 12000 m3/h | 10000 m3/h | 10000 m3/h |
Speed of sucked air | 25~30 m/s | 25~30 m/s | 25~30 m/s |
Overall dimension(L × W × H) | 3090 × 2060 × 2310mm | 2810×1670×2230mm | 2240x1280x2020mm |
Net weight | 5200kg | 4600kg | 2500kg |
***All rights for technical modifications reserved.
