Power Reach Forklift Truck Stacker
                            US$ 4,000 - 7,000
                                                            / Piece


                                                1 Piece(Min. Order)

                    - Shanghai
 - T/T

You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | NU-LIFT | Model Number | Y1025SZ, Y1033SZ, Y1325SZ, Y1333SZ | |
| Dimension(L*W*H) | 2000x1000x2000 | Certification | CE | |
| Warranty | One year | After-sales Service Provided | Overseas third-party support available |
Product Description
Newly designed available within our range with capacity 1300kg with lift heights from 2.5m to 3.3m.
Configured to provide the optimum chassis/battery/mast combination according to the Ergonomic requirements of the application.
The fork can be up/down forward/backward and tilt.

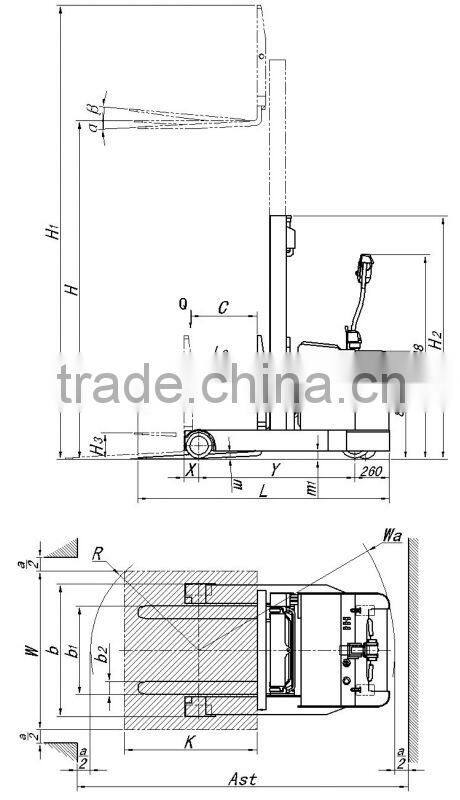

| Model | Y1025SZ | Y1033SZ | Y1325SZ | Y1333SZ | ||||
| Operation type | Stand | |||||||
| Load capacity | Q | (kg) | 1000 | 1300 | ||||
| Load center | C | (mm) | 500 | |||||
| Overall length | L | (mm) | 1900 | 2015 | ||||
| Overall width | b | (mm) | 1000 | |||||
| Overall height | H2 | (mm) | 1840 | 2240 | 1840 | 2240 | ||
| Reach length | L2 | (mm) | 550 | |||||
| Lift height | H | (mm) | 2500 | 3300 | 2500 | 3300 | ||
| Max working height | H1 | (mm) | 3431 | 4231 | 3431 | 4231 | ||
| Free lift height | H3 | (mm) | 200 | |||||
| Fork dimensions | (mm) | 900x100x35 | ||||||
| Maximun fork width | b1 | (mm) | 230-670 | 230-750 | ||||
| Fork obliquity | α/β | (º) | 3/5 | |||||
| Minimum ground clearance | m1 | (mm) | 60 | |||||
| Wheelbase | Y | (mm) | 1180 | |||||
| Front overhang | X | (mm) | 110 | |||||
| Turning radius | Wa | (mm) | 1485 | 1595 | ||||
| Travel speed | loaded | (Km/h) | 7.1 | |||||
| unloaded | (Km/h) | 7.9 | ||||||
| Lift speed | loaded | (mm/s) | 98 | |||||
| unloaded | (mm/s) | 132 | ||||||
| lowering speed | loaded | (mm/s) | 191 | |||||
| unloaded | (mm/s) | 157 | ||||||
| Brake type | Electro-magnetic | |||||||
| Drive motor power | (KW) | 2 | ||||||
| Lift motor power | (KW) | 2 | ||||||
| Battery capacity/voltage | (Ah/V) | 240/24 | 300/24 | |||||
| Weight without battery | (kg) | 1201 | 1250 | 1300 | 1770 | |||
| Battery weight | (kg) | 135 | 275 | |||||
