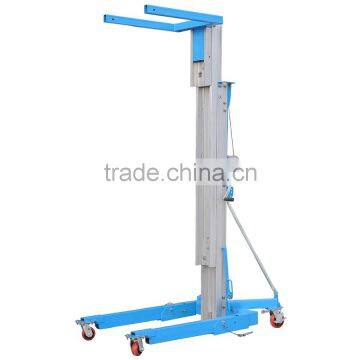

Aluminium Manual Aerial Winch Lifter Work Platform
- Shanghai
- T/T
You May Like
-
Walkie Full Electric Forklift Stacker 1Ton and 1.2Ton Capacity
-
Roll Carrier Manual Winch Lifting Stacker
-
Electric Lifting Roll Work Positioner Stacker
-
Hydraulic Lifting Retractable Box Handling Truck
-
Light Duty Type Counter Balance Weight Electric Lifting Fork Stacker
-
Hydraulic Foot Pedal Type Fork Lifting Stacker
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | NU-LIFT | Model Number | LGA10, LGA15, LGA20, LGA25 | |
| Dimension(L*W*H) | 2000x750x750mm | Certification | CE | |
| Warranty | One Year | After-sales Service Provided | Overseas third-party support available |
Product Description
Forks up is for supporting, Forks down is for loading goods.
Lifting height Max. 7.9 meters
Designed specifically for the construction industry.
These heavy-duty units can be operated by one person and can lift, lower and move.
Glide rails allow one person to easily load or unload the unit, as well as lift it in or out of a pickup truck.
Model | LGA10 | LGA15 | LGA20 | LGA25 | ||
Capacity(kg) | Load Center | 40cm | 350 | 350 | 250 | 200 |
60cm | 350 | 350 | 200 | 150 | ||
80cm | 250 | 250 | 150 | 100 | ||
100cm | 150 | 150 | 100 | 75 | ||
Max working height(m) | 3.5 | 5 | 6.5 | 7.9 | ||
Height-stowed A(m) | 2 | 2 | 2 | 2 | ||
Length-stowed B(m) | 0.75 | 0.75 | 0.75 | 0.75 | ||
Length-operating C(m) | 1.5 | 1.88 | 2.08 | 2.08 | ||
Width-straddle min | D(m) | 0.75 | 0.75 | 0.75 | 0.75 | |
Width-straddle max | 1.88 | 1.88 | ||||
Load height-min Em | 0.15 | 0.15 | 0.15 | 0.15 | ||
Ground clearance Fm | 0.05 | 0.05 | 0.05 | 0.05 | ||
Net weight kgs | 120 | 145 | 185 | 205 | ||
