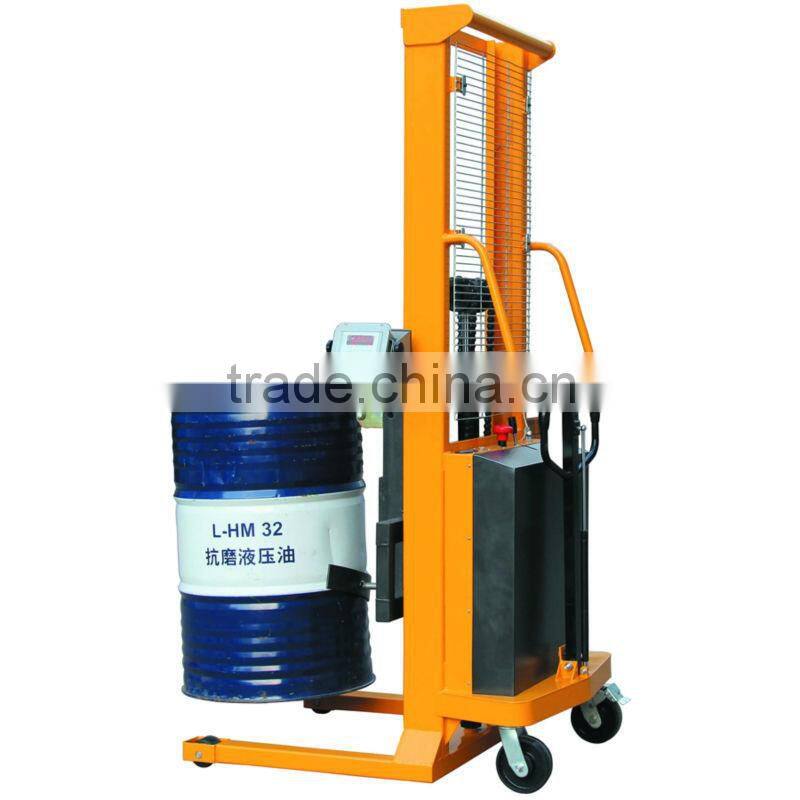

Electric Powered Drum Lifting Stacker 500KG Capacity
- Shanghai
 - T/T

You May Like
-


Hydraulic Electric Drum Lifting Stacker With Manual Tilting
 -


Manual Hydraulic Lifting and Tilting Drum Stacker With Weight Scale
 -


Hoist and Forklift Mounted Drum Lifter
 -


Hoist and Forklift Mounted Type Drum Lifter
 -


Drum Dispenser - Power Lifing and Tilting Drum Stacker (Two-Stage)
 -


Forklift Truck Mounted Type Drum Positioner

Product Details
| Place of Origin | Jiangsu, China | Brand Name | NU-LIFT | |
| Model Number | DT500, DT500-1 | After-sales Service Provided | Overseas third-party support available |
Product Description
Single-stage vertical-lift drum Stacker allow you to stacker a drum up to 1450 mm high.
With power lift.
Model DT500-1: Be equipped with weighing scale.

DT500

DT500-1
Model  | DT500  | DT500-1  | |
Rated Capacity  | KG  | 500  | 500  |
Max. Lifting Height  | mm  | 1450  | 1450  |
Acceptable Drum Type  | steel ,plastic,fiber  | ||
Powered Lifting  | yes/no  | yes  | |
Drum Tilting (electric/manual)  | without dumping device  | ||
With Weighing Scale  | yes/no  | no  | yes  |
Lifting Speed  | mm/s  | 120  | 120  |
Load Rollers Size  | mm  | Ø80x60  | Ø80x60  |
Steering Wheel Size  | mm  | Ø150x50  | Ø150x50  |
Size Between Legs(Inner/Out)  | mm  | 630/810  | |
Leg Length  | mm  | 630  | 630  |
Turning Radius  | mm  | 1750  | 1750  |
Lifting Motor Power  | KW  | 1.5  | 1.5  |
Battery  | V/AH  | 12/120  | |
Charger for Stacker  | V  | 12  | |
Charger for Weighing Scale  | V  | 6  | |
Overall Size(LxWxH)  | mm  | 1500x950x2100  | 1500x950x2100  |
Net Weight  | KG  | 208  | 228  |
