Waterproof Pet GPS Tracker Which is Used for Dogs,cats and Assets

 [   Waterproof Pet GPS Tracker which is used for dogs,cats and assets ]

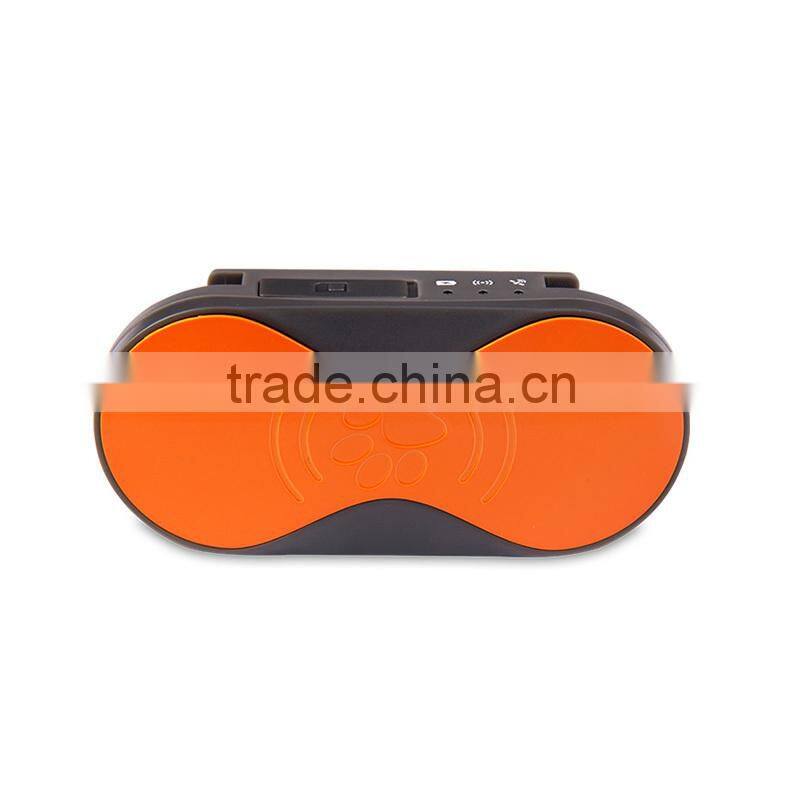

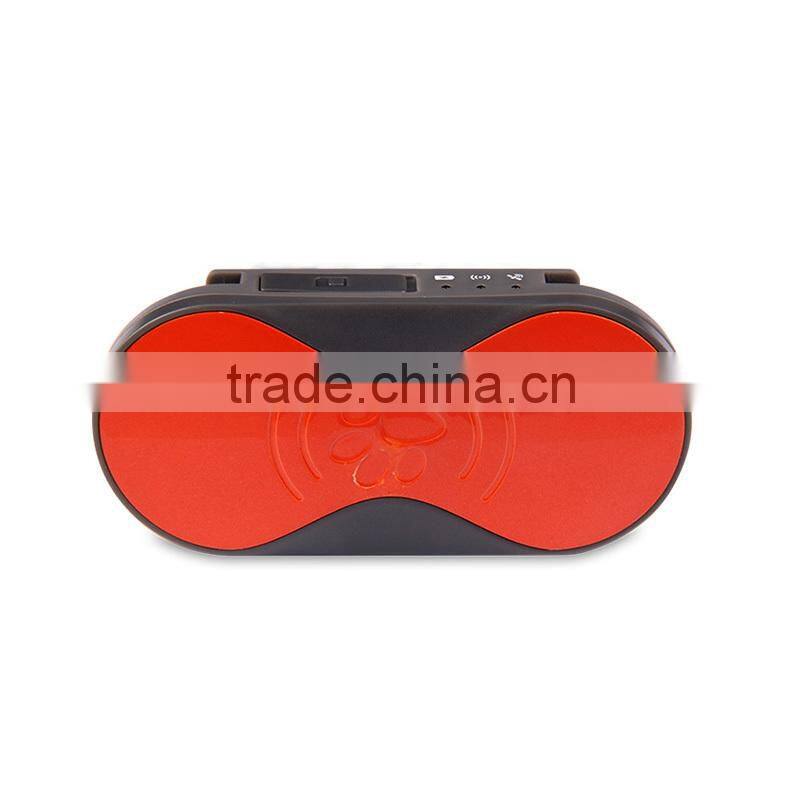

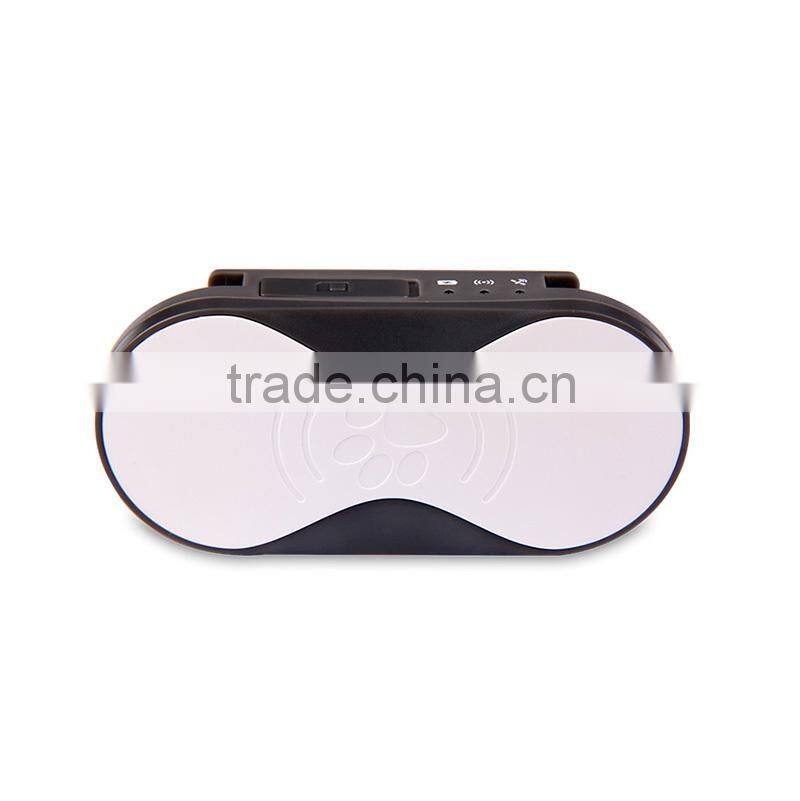

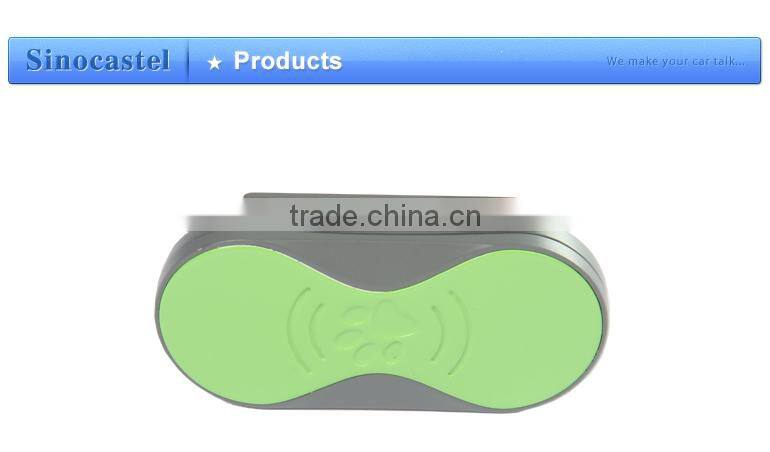

PT-690 is a compact and light designed GPS Tracker which is easy to hang in the neck for pets. It
can support GSM and SMS dual mode communication, give low battery and geo-fence
management alert to owner to ensure pets safety. All location can be conveniently viewed on
android/iOS Smartphone APPs.

 Features

1. Compact & light design, easy to hang in the neck
2. GSM and SMS dual communication mode
3. Android and iOS Smartphone APPs surveillance
4. Real-time tracking and positioning on web-based monitoring software
5. Long time working lithium battery
6. Low power and Geo-fence management alarm
7. Blind area data store and re-upload

Technical Parameters

Operation voltage: 3.7~4.2V
Battery capacity: 500mAH
Max working Current: ~200mA
Standby Current: <5mA
Charging Current: 600mA
Charge duration: ~2H
GSM frequency: 900MHz/1800MHz/850MHz/1900MHz
Chipset: SIMCOM SIM800H
Network communication protocol: TCP/IP
RX sensibility: -107dBm (typ.)@850/900MHz,-106dBm (typ.)@1800/1900MHz
GPS chipset: U-blox GT-1612-MT
Frequency: 1.57542GHz(L1)
Cold Start time: ~ 40S(Outdoor):
Warm Start time: <15s(Indoor)
Hot start time: <3S(Outdoor Patio)
Positional Accuracy: 15M (Typical)
