Long Standby Personal GPS Tracker With GSM Module

FOB Price

US$ 45 - 50 / Piece

1 Piece(Min. Order)

Port SHENZHEN
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	One Way	Function	GPS / GSM
Voltage	Other, 5V	Frequency (MHz)	850/900/1800/1900MHZ
Place of Origin	Guangdong, China	Brand Name	SINOCASTEL
Model Number	PT-718	Warranty	1 Years

Product Description

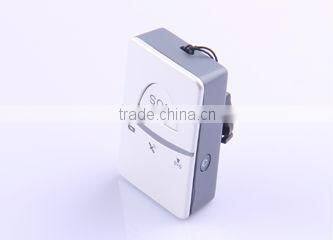

[ Long standby personal GPS tracker with GSM module ]

PT-718 is an individual GPS tracker developed by CASTEL. It adopts 2 communication modes: GPRS and SMS. PT-718 can be precisely located, easily operated. It is easy to take with good appearance. It adopts terminal+ APP+ cloud system to manage GPS data scientifically, which suits for the old& children in family, community and school.

Timing positioning: In normal working mode, tracker can upload GPS information to
APP& cloud by preset time interval. The emergency contactor bound with tracker can
monitor in real time.

---------------------------------------------------------- Features ----------------------------------------------------------

Real-time positioning
Timing position
Support Geo-fencing alert
SOS panic buttons
Free Android and IOS app.
Low standby time with low energy consumption technology

---------------------------------------------------------- Specifications----------------------------------------------------------

Electrical surroundings parameters	Battery	Voltage 3.7V,Currency 1200mAh
	Max.currency	~260mA
	Normal currency	PEAK(120mA)while GPRS DATA EMISSION OTA
	Sleep mode currency	average(5mA),min(80uA)
	Charge currency	400mA
	Charge time	About 2H
GPS receiver	Channels	66
	GSM frequency	1.57542GHz(L1)
	RX code	C/A
	Cold start	≤50S
	Warm start
	Hot start	<3S
	horizontal ensitivity	5M CEP without SA
	Speed sensitivity	0.1m/s without SA
	Angle sensitivity	5m(according to the environment)
	Capture sensitivity	-120
	Tracking sensitivity	-135
	update frequency	1 Hz
GSMreceiver	GSM/GPRS frequency	GSM850/EGSM900/DCS1800/PCS1900
	Communication protocol	Embedded tcp/ip stack
	GSM850	-95
	EGSM	-99
	DCS1800	-103
	PCS1900	-102
	Max. TX frequency	CLASS4(2W)@GSM850,EGSM900
	Max. TX frequency	CLASS1(1W)@DCS1800,PCS1900
Indicator	SOS button	SOS (press more than 3secs)
	Power LED	Red LED
		Charging:On
		First time start without location:On
		Position success:Off
		Press SOS : sharp blinking,1s on,1s off,lasting 20secs
		Low voltage:slow blinking:1s on.7s off
	GSM indicator	Yellow LED register unsuccessful no blink,register success, blink every 2secs
	GPS indicator	Green LED no blink without position,blink per 2secs when position
	Power button	Pree button ON/OFF(every 3secs exchange the status)
