IGBT 200KW Mid Frequency Hardening Induction Heating
- Shanghai Qingdao Tianjin Guangzhou or as you request
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Camshaft Hardening Induction Heating Machine/equipment
-
50KW Super Audio Steel Hardening Furnace
-
120KW High Frequency Induction Shaft Axle Hardening Machine
-
Best Sale Hardening Induction Heating Machine
-
Vertial Type Shaft Axis Hardening Quenching Induction Heating Machine
-
IGBT Induction Heating Shaft Quenching
Product Details
| Place of Origin | Henan, China | Brand Name | Yongda | |
| Model Number | IGBT 200KW/2-10KHZ | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Mid frequency hardening induction heating1. igbt system
2. Hardening 3-10mm
3. save energy
4. easy operation

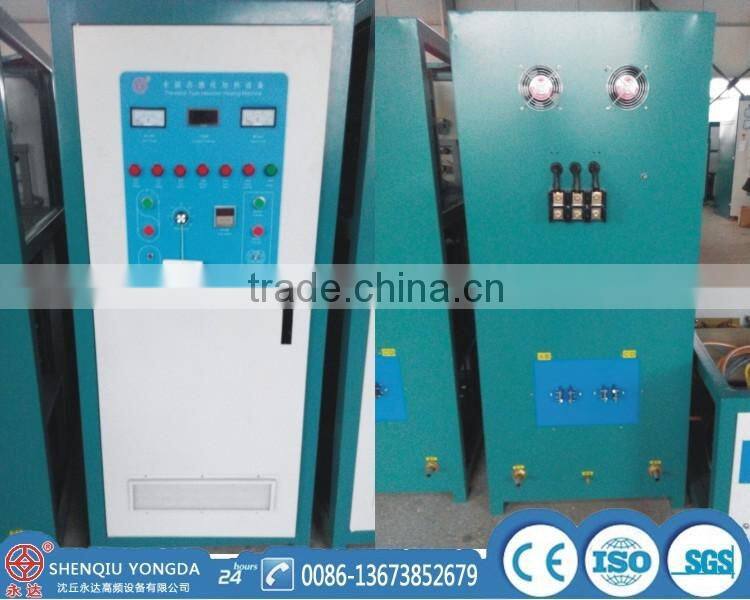

IGBT 200KW Mid frequency hardening induction heating
Introduction of IGBT Mid frequency hardening induction heating
100-600KW New type medium frequency induction heater is based on modern international advanced electric technology theory, adopts Infineon IGBT modules,with strict process technology requirements to produce high-tech products.The product main circuit adopts three-phase bridge rectifier circuit without adjusting voltage, after capacitor filter, half-bridge inverter .main circuit is series resonance,duty cycle adjustable power.
Mid frequency hardening induction heating
Mid frequency hardening heating depth: 3-10mm ,is deeped than high frequency,supersonic frequency induction heating machine.
Technial specifications of Mid frequency hardening induction heating
Model | Input voltage | Output power | Oscillation frequency (KHZ) | Cooling water amount (T/H) | Cooling water pressure (MPA) |
IGBT100KW/4-10KHZ | 3-380V | 100KW | 4-10KHZ | 3 | 0.2-0.3MPA |
IGBT160KW/4-10KHZ | 3-380V | 160KW | 4-10KHZ | 4 | 0.2-0.3MPA |
IGBT200KW/4-10KHZ | 3-380V | 200KW | 4-10KHZ | 5 | 0.2-0.3MPA |
IGBT250KW/4-10KHZ | 3-380V | 250KW | 4-10KHZ | 6 | 0.2-0.3MPA |
IGBT350KW/4-10KHZ | 3-380V | 350KW | 4-10KHZ | 8 | 0.2-0.3MPA |
IGBT400KW/4-10KHZ | 3-380V | 400KW | 4-10KHZ | 12 | 0.2-0.3MPA |
IGBT500KW/4-10KHZ | 3-380V | 500KW | 4-10KHZ | 15 | 0.2-0.3MPA |

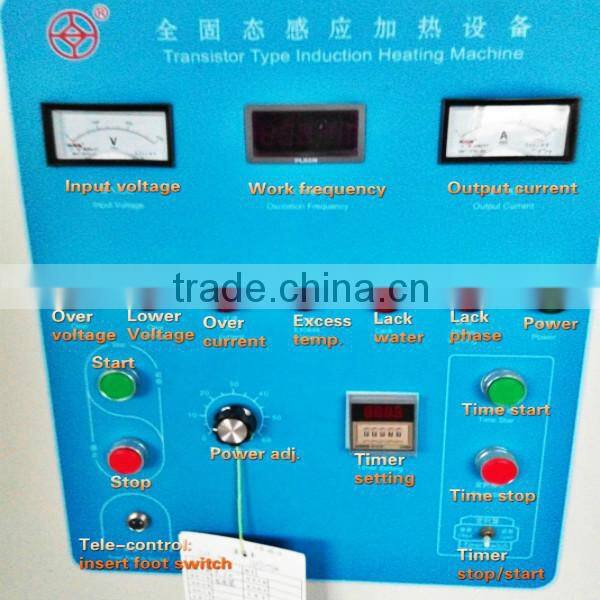

Control panel of IGBT Mid frequency hardening induction heating
PS: The machine itself has many protection functions, over ten alarm lamps, such as over voltage, lower voltage, over current, water temperature is high, lack of water, lack of phase, when any of the lamps light, machine stop heating, prevent machine further damaged, until trouble shooting.

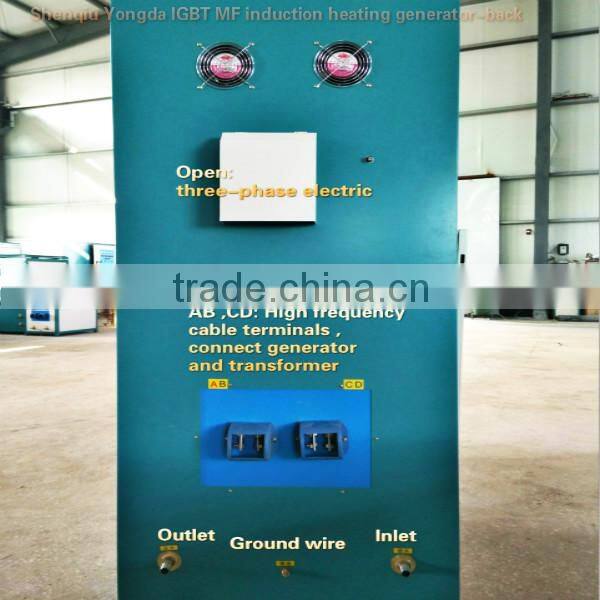

Back of Mid frequency hardening induction heating generator

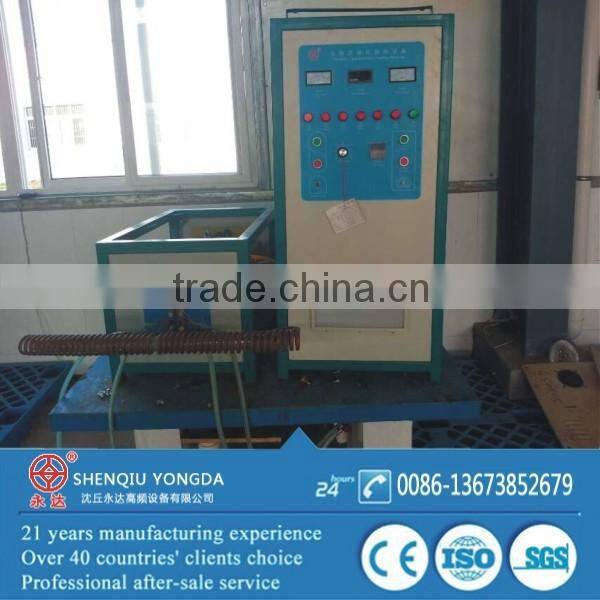

Mid frequency induction hardening heating generator and transformer:
the induction coils can be changed. It is tailor-made, according to specifications of your workpieces
Applications of medium frequency induction heating
1, auto parts, motorcycle accessories quenching.
2, the mechanical parts of the heat treatment. Such as the various gears, sprockets, all kinds of shafts, spline shafts, pins, etc. quenching.
3, the machine tool industry, the rail surface hardening treatment.
4, pliers, wrenches, screwdrivers, hammers, axes and other heat treatment.

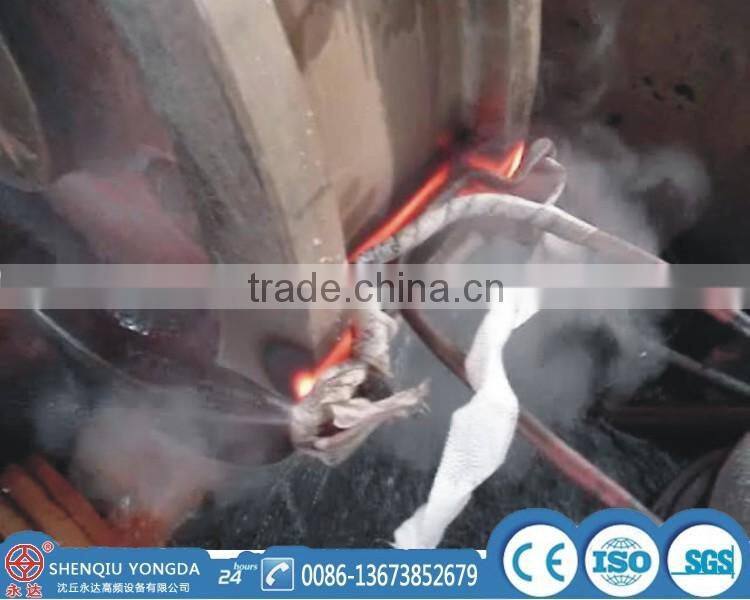

Wheel hardening

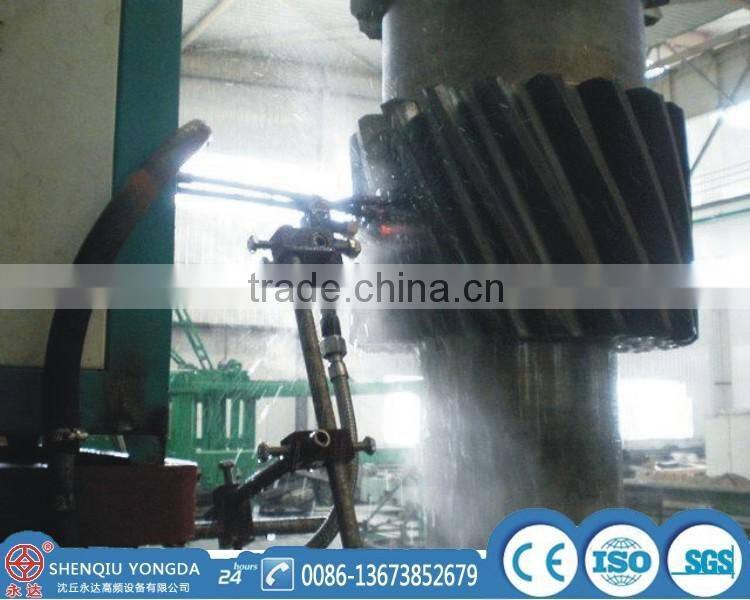

Big gear single teeth hardening

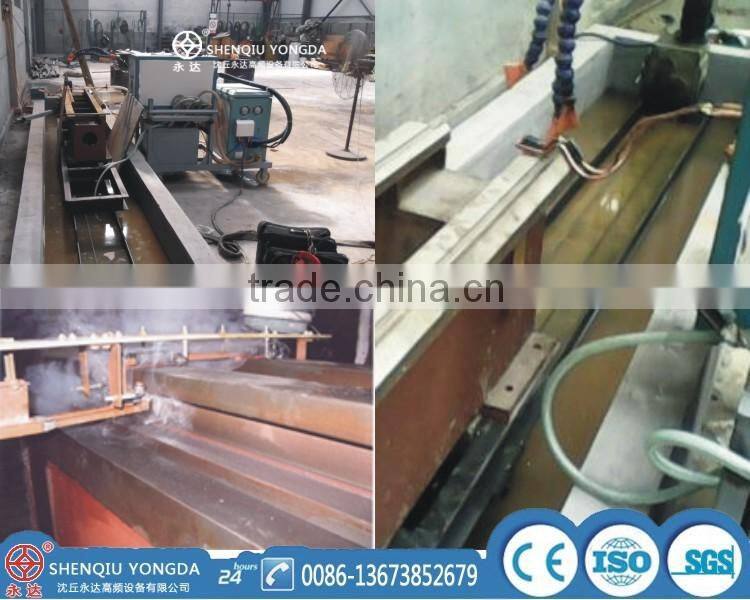

Guide rail hardening
1.Warranty: one year free replacement spare parts.Excess warranty period, you also can buy spare parts with very low cost.
2. Provide install and technology instruction by sending drawings, email, or telephone,video.
3.If you need, will arrange one engineer to your place,instruct install machine and training operators.
4.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
5.Provide long-terms technical support
Packing for Mid frequency hardening induction heating
1.Wooden cases (plywood) or carton, as you request.
Inside,will be filled with plastic foam,for waterproof and shockproof.
2.Accessories: induction coils, and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
Professional medium frequency induction hardening heating machine manfuacturer, High frequency, Supersonic frequency induction heating equipment, first-class quality,competitive price,Shenqiu Yongda - since 1996 Sincerely provide service for you !
Waitting for you !
