Product Details

Type	Gps Tracker	Use	Automotive
Screen Size	Other	Function	Other
Place of Origin	Guangdong, China	Brand Name	CASTEL
Model Number	IDD-213E/N 3G	Warranty	1 Years

Product Description

car gps tracker reviews

IDD-213G is an intelligent on-board diagnostic device compatible with passenger and commercial vehicles, it features plug-and-play technology,could read diagnostic info from vehicle ECU and capture location data, then send them to backend server for real-time remote diagnostic and tracking purpose.

	PLUG AND PLAY		ERROR CODE CHECK
	DRIVING BEHAVIOR ALARM		FUEL CONSUMPTION
	REALTIME TRCAKING		LOW VOLTAGE MONITORING
	ENGINE READING		CO2 EMMISSION MONITOR

Mechanical	Size		63mm (L) x 48mm (W) x 28mm (H)
	Weight		50g
Interface			OBD interface: 16 pin standard OBD II Configuration interface: Mini-USB SOS button interface: MMCX SIM card interface: Push-Push Type
Data transmission			Packet data (GPRS or HSPA) and SMS
Positioning method			GPS
Storage			2MB FLASH, up to 24,000 GPS data storage
OBD protocol			SAE J1850 PWM SAE J1850 VPW ISO 9141-2 ISO 14230-4 ISO 15765-4 SAE J1939 SAE J1587/J1708
Power	Working Voltage		9-36VDC
	Working Current		Max.: <200mA 13.8/27.6VDC Average: <150mA 13.8/27.6VDC Sleep mode: <10mA 12/24VDC
	Backup battery		3.7V/160mAH
GPS			Channels: 48 Sensitivity: -163dBm Accuracy: 5m CEP Time to first fix: Cold start: <35s (typ.) Hot start: <1s (typ.)
Cellular			Frequency: GSM/GPRS/EDGE: 900/1800MHz UMTS/HSDPA: 900/2100MHz Network protocol: Embedded TCP/IP stack Sensitivity: -111dBm UMTS -109dBm GSM 900MHz -110dBm GSM 1800MHz Output power: Class 4 (2W, 33dBm) GSM 900MHz Class 1 (1W, 30dBm) GSM 1800MHz Class 3 (0.25W, 24dBm) UMTS Class E2 (0.5W, 27dBm) EDGE 900MHz Class E2 (0.4W, 26dBm) EDGE 1800MHz Certification: CE, GCF (Europe)
3 axis Accelerometer			+/-2g, +/-4g, +/-8g, +/-16g, driving behavior detection
LED Indication			GPS/Cellular/OBD indication
Buzzer			System status/Alarm indication
Antenna		Cellular	Internal
		GPS	Internal
Accessories			Configuration cable OBD II extension cable 9-Pin deutsch wiring harness 6-Pin deutsch wiring harness Power cable SOS button
Environment		Working Temperature	-30℃ ~ +70℃
		Storage Temperature	-40℃ ~ +85℃
		Humidity	5%~95%(no frog)

Mechanical	Size		63mm (L) x 48mm (W) x 28mm (H)
	Weight		50g
Interface			OBD interface: 16 pin standard OBD II Configuration interface: Mini-USB SOS button interface: MMCX SIM card interface: Push-Push Type
Data transmission			Packet data (GPRS or HSPA) and SMS
Positioning method			GPS
Storage			2MB FLASH, up to 24,000 GPS data storage
OBD protocol			SAE J1850 PWM SAE J1850 VPW ISO 9141-2 ISO 14230-4 ISO 15765-4 SAE J1939 SAE J1587/J1708
Power	Working Voltage		9-36VDC
	Working Current		Max.: <200mA 13.8/27.6VDC Average: <150mA 13.8/27.6VDC Sleep mode: <10mA 12/24VDC
	Backup battery		3.7V/160mAH
GPS			Channels: 48 Sensitivity: -163dBm Accuracy: 5m CEP Time to first fix: Cold start: <35s (typ.) Hot start: <1s (typ.)
Cellular			Frequency: GSM/GPRS/EDGE: 850/1900MHz UMTS/HSDPA: 850/1900MHz Network protocol: Embedded TCP/IP stack Sensitivity: -111dBm UMTS -109dBm GSM 850MHz -110dBm GSM 1900MHz Output power: Class 4 (2W, 33dBm) GSM 850MHz Class 1 (1W, 30dBm) GSM 1900MHz Class 3 (0.25W, 24dBm) UMTS Class E2 (0.5W, 27dBm) EDGE 850MHz Class E2 (0.4W, 26dBm) EDGE 1900MHz Certification: FCC, PTCRB, IC
3 axis Accelerometer			+/-2g, +/-4g, +/-8g, +/-16g, driving behavior detection
LED Indication			GPS/Cellular/OBD indication
Buzzer			System status/Alarm indication
Antenna		Cellular	Internal
		GPS	Internal
Accessories (Optinonal)			Configuration cable OBD II extension cable 9-Pin deutsch wiring harness 6-Pin deutsch wiring harness Power cable SOS button
Certification			FCC (pending)
			PTCRB (pending)
Environment		Working Temperature	-30℃ ~ +70℃
		Storage Temperature	-40℃ ~ +85℃
		Humidity	5%~95%(no frog)

Sinocastel Co.,Ltd is a subsidiary of China Aerospace Science and Technology Corporation (CASC). As one of the co-founders of China GPS Association, CASTEL Group has more than 15 years experiences in GPS and LBS application, wireless, communication and access, and are engaged in R&D and manufacturing and provisioning of customized integrated solutions.

1.what is OBD&OBDII?
OBD(On-board diagnostics)is an automotive term referring to a vehicle's self-diagnostic and reporting capability. OBD systems give the vehicle owner or repair technician access to the status of the various vehicle sub-systems. Modern OBD implementations use a standardized digital communications port to provide real-time data in addition to a standardized series of diagnostic trouble codes, or DTCs, which allow one to rapidly identify and remedy malfunctions within the vehicle.
OBD-II is an improvement over OBD-I in both capability and standardization. The OBD-II standard specifies the type of diagnostic connector and its pinout, the electrical signalling protocols available, and the messaging format. It also provides a candidate list of vehicle parameters to monitor along with how to encode the data for each.

2.what is the obd gps tracker?
gps tracker intergrate with OBD protocol

3.what is the different OF 213GL, IDD-213E and IDD-213N?
213GL for GSM sim card,213E&213N for WCDMA sim card, 213E for Europ market,213N for North America market

4.You obd gps tracker support or doesn't support SIM card
All obd serial product Support SIM card

5.How does the device work?
download PCTOOL from Sinocatel website, use USB cable connect computer set APN and others data, plug and play with vehicle.

6.what is the Frequency of the simcard?GSM and WCDMA?
GSM Frequency: 850/900/1800/1900MHz, WCDMA Frequency:800/850/900/2100(Europ),800/850/1700/1900(North America)

7.Does your tracker have SMS alerts?
Yes, SMS alerts from phone

8.Does your system have demo test account?
yes, test account:demotest, password:123456

9.Does your system free to use?
free half year, get pay after half year, can provide the charge list if you need.

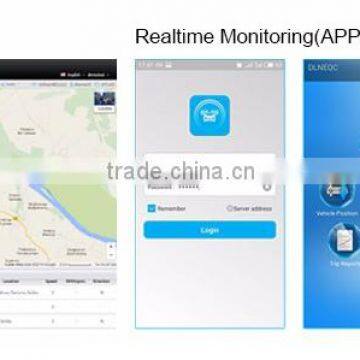

10.Does your system have smartphone APP?
yes, APP name UUAID and Palm fleet, download from wesbite.
