3G OBD GPS Tracker Can Support WCDMA/CDMA200 With J1939/J1708 Protocol Communication

[      3G OBD GPS tracker can support WCDMA/CDMA200 with J1939/J1708 protocol communication ]

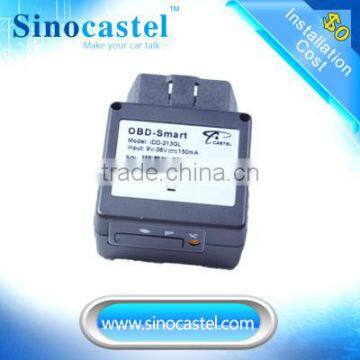

IDD-213E is an all in one box version with OBD diagnostic  ,The device support GSM/WCDMA/CDMA2000 networks with tracking anddiagnostic function. And there is an optional SOS button.

3G OBD GPS tracker can support WCDMA/CDMA200 with J1939/J1708 protocol communication

----------------------------------------------   Features   ---------------------------------------------------

· Compact design, Plug-and-play,
· Compliant with all cars with OBD II port
· Diagnostic trouble codes ,OBD code monitoring
· Car running condition parameters reading including RPM, speed, ECT, MAF, TP etc
· Real-time alarm for the hard acceleration, hard deceleration, idle engine, speeding etc
· Real time location tracking and history trace replay
· Accurate mileage and fuel consumptions monitoring
· Low voltage monitoring

------------------------------------------------------------  Parameters  ------------------------------------------------------

· GSM module: Quad band 850/900/1800/1900MHz
· Data transmission: GPRS / SMS
· GPS Chipset: UBlox NEO-6
· Position mode: GPS/AGPS
· GPS Location positioning accuracy: 5M CEP
· GPS Sensitivity: -160dBm
· Working voltage: 9V-16V DC
· Size: 63*50*28 mm ( L*W*H )

OBDII Navigation GPS tracker with free software android and IOS app
