Bathroom Wall Panel Plant
- shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Gerui | |
| Model Number | YF | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
bathroom wall panel plant1. material: PVC+ CaCO3+additives
2. width: 200-600mm
3. Turn-key project
   bathroom wall panel plant 1. material: PVC+ CaCO3+additives
2. width: 200-600mm
3. Turn-key project
PVC ceiling panel plant/plastic panel extruder/ PVC machine:

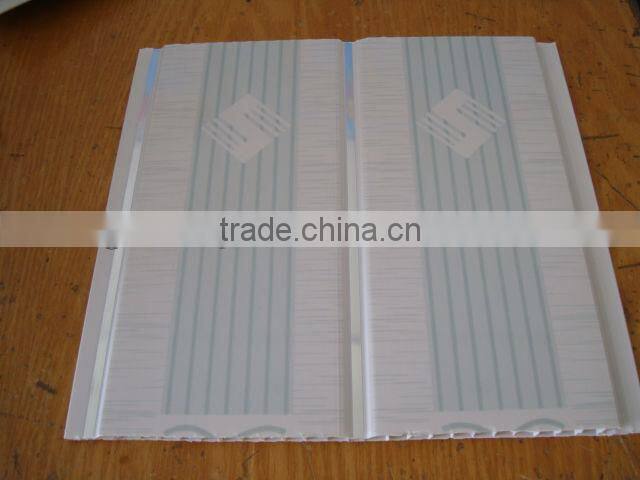

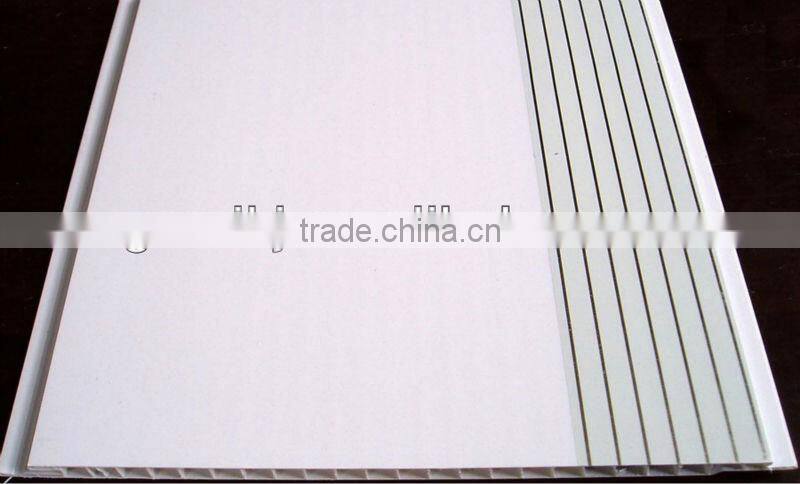

The PVC ceiling is made by PVC and some additives. It is mostly used in the kitchen and washroom decoration.
It has the characteristics of the light weight, moisture-proof, heat insulation and it is not easy to fire, absorb dust, but easy to paint, install.

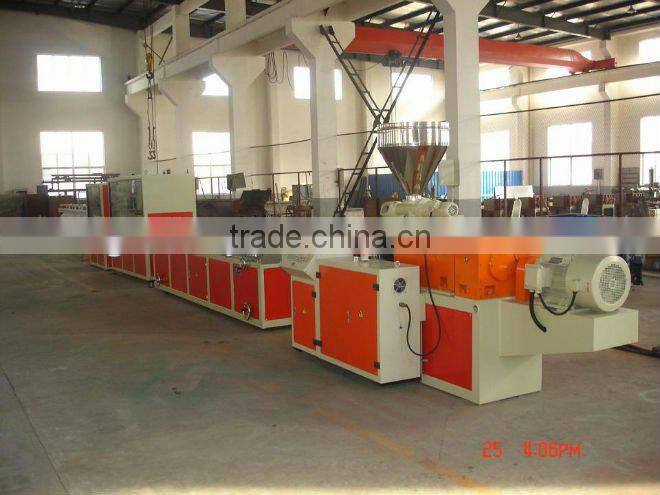

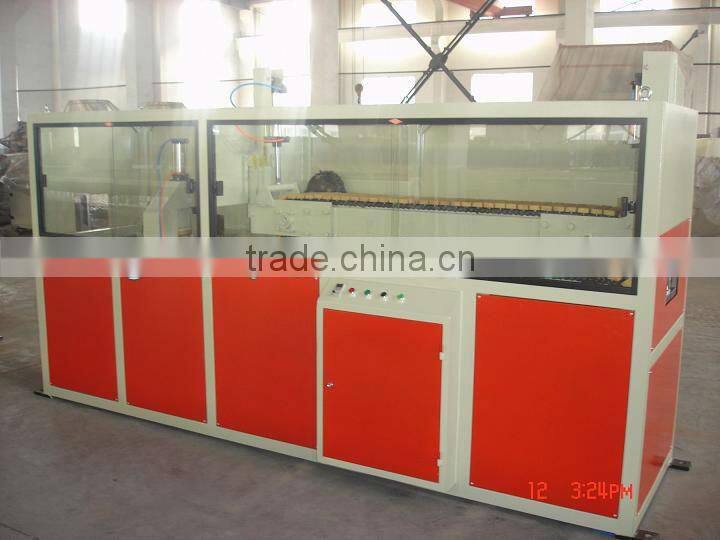

The PVC ceiling machine includes the extruder, mould, haul-off, cutting machine and tiling table.
And it has been tested for many times, so it has the advantages of saving energy and material, and increasing efficiency and profit by adopting advanced technology.
The product of the PVC ceiling machine is smooth, beautiful, and no harm odor, besides it is not easy to be out of shape.
There are many patterns of the PVC ceiling, such as the assortments of milky white, cream color, acid blue, and the patterns of flower, parquet, bamboo and peach. And of course, the patterns and colors of the PVC ceiling are done according to customers’ requirements.
Now we already have lots of customers at home and abroad.
Conical twin screw extruder technical parameters:
| Model | SJSZ51/105 | SJSZ55/120 | SJSZ65/132 | SJSZ80/156 |
| Power(kw) | 18.5 | 22 | 37 | 55 |
| Screw dia(mm) | ø51/Φ105 | ø65/Φ120 | ø65/Φ132 | ø80/Φ156 |
| No.of Screw | 2 | 2 | 2 | 2 |
| Rotational Speed | 36 | 36 | 36 | 36 |
| Screw torque(Nm) | 6000 | 7000 | 10000 | 10000 |
| Output(PVC powder kg/h) | 100 | 150 | 250 | 400 |
| Central height(mm) | 1000 | 1000 | 1000 | 1000 |
ceiling panel machine technical parameters:
| Model | YF180 | YF240 | YF400 |
| Max. width (mm) | 180 | 240 | 400 |
| Haul height (mm) | 140 | ||
| Haul force(KN) | 15 | 30 | 30 |
| Haul speed(m/min) | 0.5-5 | ||
| Auxiliary equipment total power(KW) | 18.7 | 31.6 | 31.6 |
| Compression air(MPa) | 0.6 | ||
