16mm-630mm Automatic PVC Pipe Socketing Machine
- Shanghai port
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Pipe Belling Machine | |
| Pipe Material | PVC | Application | Energy Supply Pipe | |
| Production Capacity | 1-10m/min | Place of Origin | Jiangsu, China | |
| Brand Name | great | Model Number | sgk-160 | |
| Voltage | 380V/220V/440V/415V | Power(W) | 50kw | |
| Dimension(L*W*H) | 8*2*1.8 | Weight | 2000kg | |
| Certification | CE & ISO | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

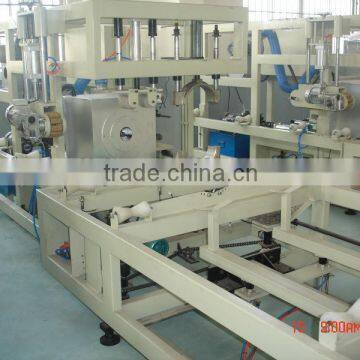

Machine: 16mm-630mm Automatic plastic pipe socketing machine/PVC pipe Belling machine
Feature:
This machine is suitable for the R type and U type belling machine plastic pipes.It can not only used in line with the pipe production line but also can be used as a single machine. The characteristics of this machine is full automatic, stable and reliable, easy to operate. It adopts vacuum calibration inside the mould.
Model | Pipe Diameter | Heating Method | Belling Method | Heating power | Dimension |
SGK110 | 50-110mm | Electric heating | Mould physical expansion | 10.5kw | 7500x1400x1750mm |
SGK160 | 50-160mm | Electric heating | Mould physical expansion | 10.5kw | 7500x1400x1750mm |
SGK200 | 50-200mm | Electric heating | Mould physical expansion | 10.5kw | 7855x1350x1900mm |
SGK250 | 110-250mm | Electric heating | Mould physical expansion | 10.5kw | 7830x1620x1700mm |
SGK315 | 160-315mm | Electric heating | Mould physical expansion | 14kw | 8050x1750x1900mm |
SGK450 | 200-450mm | Electric heating | Mould physical expansion | 18kw | 8290x2090x2080mm |
SGK500 | 315-500mm | Electric heating | Mould physical expansion | 18kw | 8500x3050x2100mm |
SGK630 | 400-630mm | Electric heating | Mould physical expansion | 22.5kw | 8615x3125x2500mm |
The information above is only for your consideration. For the exact information, please contact me.

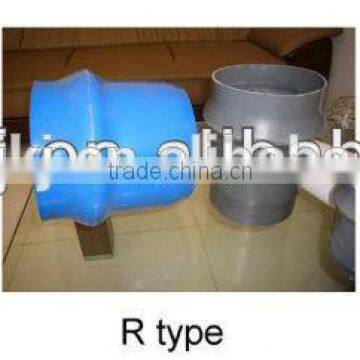

Mould types:

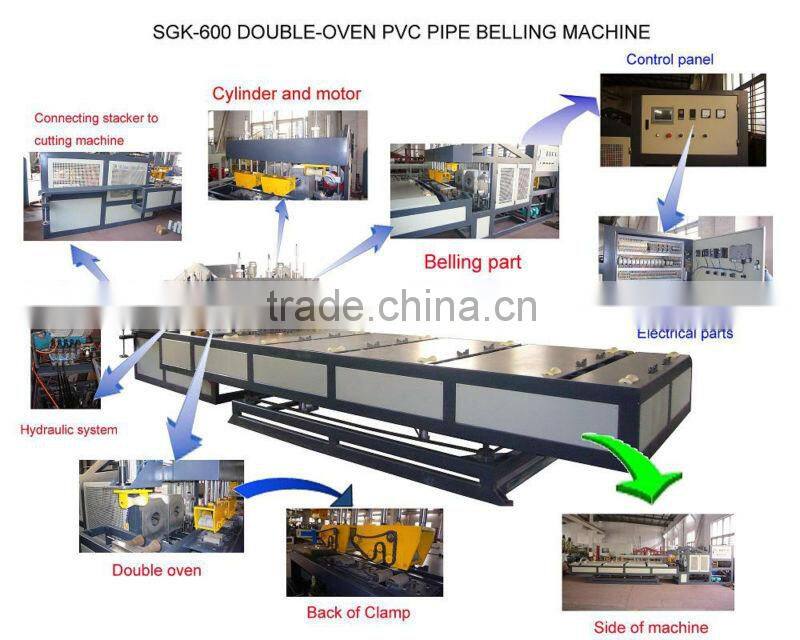

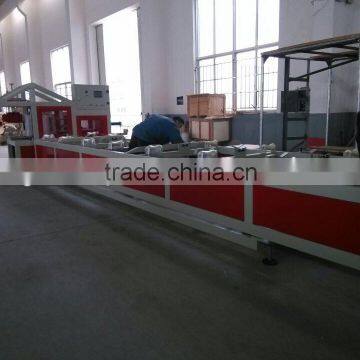

Machines (Double-OVEN) for reference:
For more information, please contact me now!
