Car Diagnostic Tool Bluetooth 4.0 OBD Reader

[     Car  Diagnostic tool Bluetooth 4.0 OBD Reader    ]

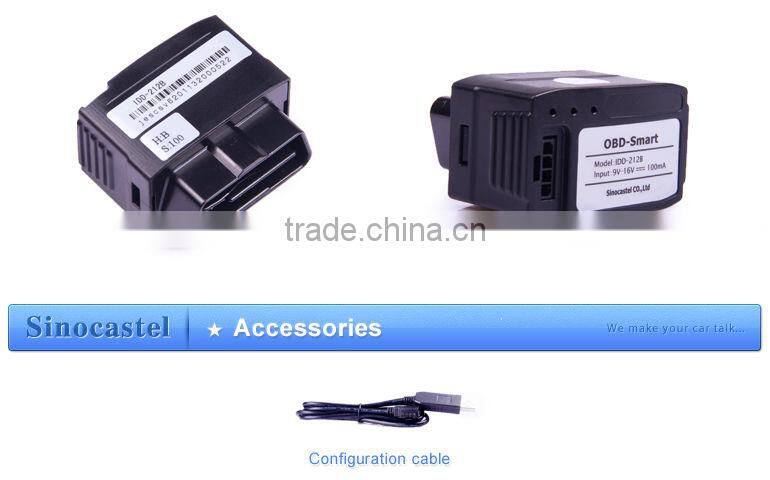

 IDD-212B is a MFI Certified Bluetooth 4.0 OBD Reader Diagnostic tool. It could read car engine data via OBDII protocol and diagnostic Error codes (DTCs) and tranmitted data to Android/IOS app for analyzing driving behavior, mileage, fuel consumption etc through Bluetooth.

With G-sensor and 16Mb flash built-in, it's the best low cost solution for Eco-driving & Eco-enviorment.

         --------------------------------------------------   Features   -------------------------------------------------------

• Support universal cars with EOBD/OBD II Protocols

• Bluetooth 4.0 support both iPhone & Android.

• Scan for Stored DTCs & Pending DTCs

• Clear pending DTCs

• Car Engine reading: speed, RPM, ECT etc.

• Fuel Consumption

• Mileage

• Driving Behavior Record

• Vehicle battery monitor

• Alarms including high ECT/RPM, hard bracking, idle engine, speeding etc.

        ------------------------------------------------   Parameters  --------------------------------------------------------------------

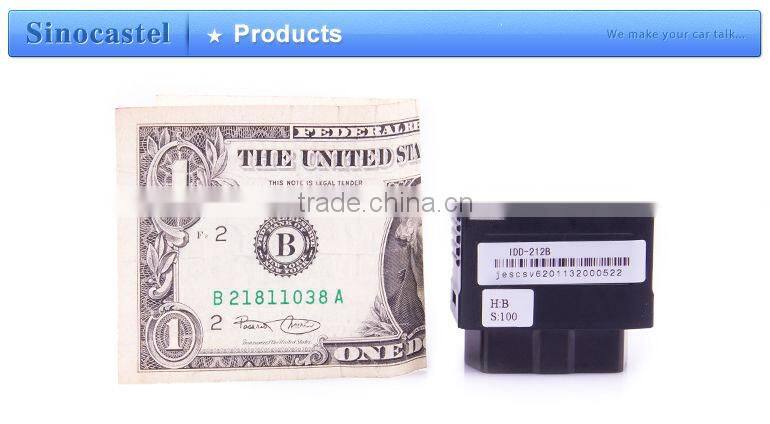

• Mechanical	Size	46mm (L) x 43mm (W) x 26mm (H)
  	Weight	35g
  Interface		OBD interface RS-232 interface
  Data transmission		Bluetooth
  Storage		16MB FLASH,store up to 300 hours trip data
  OBD protocol		SAE J1850 PWM SAE J1850 VPW ISO 9141-2 ISO 14230-4 ISO 15765-4
  Power	Working Voltage	9-16VDC
  	Working Current	Average: <50mA 13.8VDC Sleep mode: <20mA 12VDC
  Bluetooth		Specification: V3.0/4.0+EDR,Class II Frequency: 2.4-2.48GHz Range: 10m (Max. no shield) Sensitivity: -90dBm GFSK -90dBm@∏/4DQPSK -83dBm@8DPSK -92dBm@BLE Antenna: built in
  3 axis Accelerometer		+/-2g, +/-8g, driving behavior detection
  LED Indication		Bluetooth/OBD/Power indication
  Buzzer		System status/Alarm indication
  Environment	Working Temperature	-30°C ~ +70°C
  	Storage Temperature	-40 °C ~ 85°C
  	Humidity	5%~95%(no frog)
