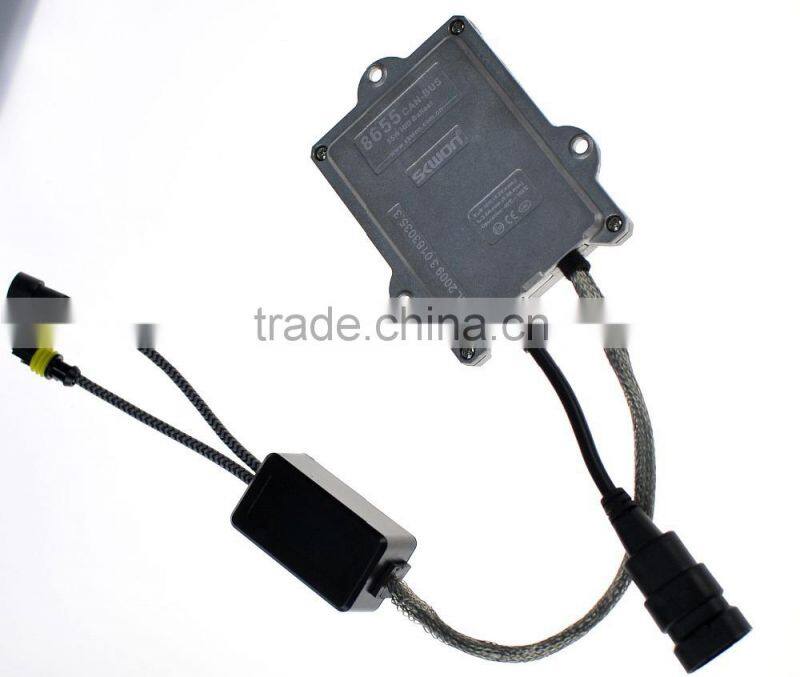

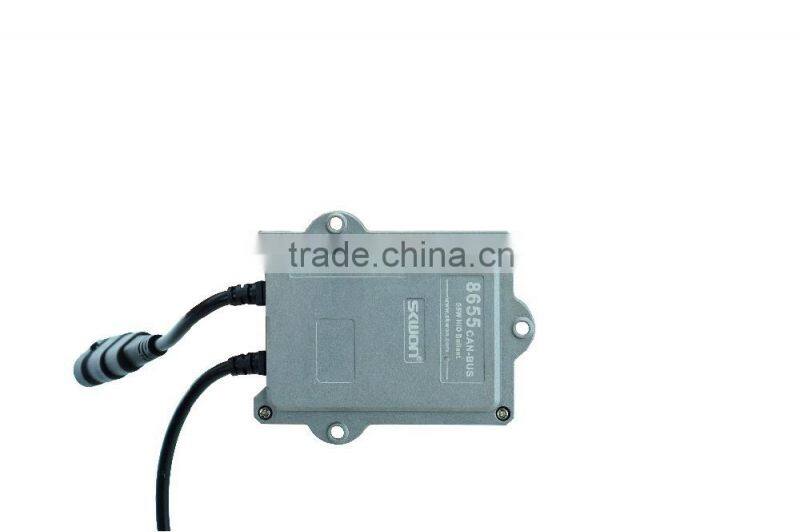

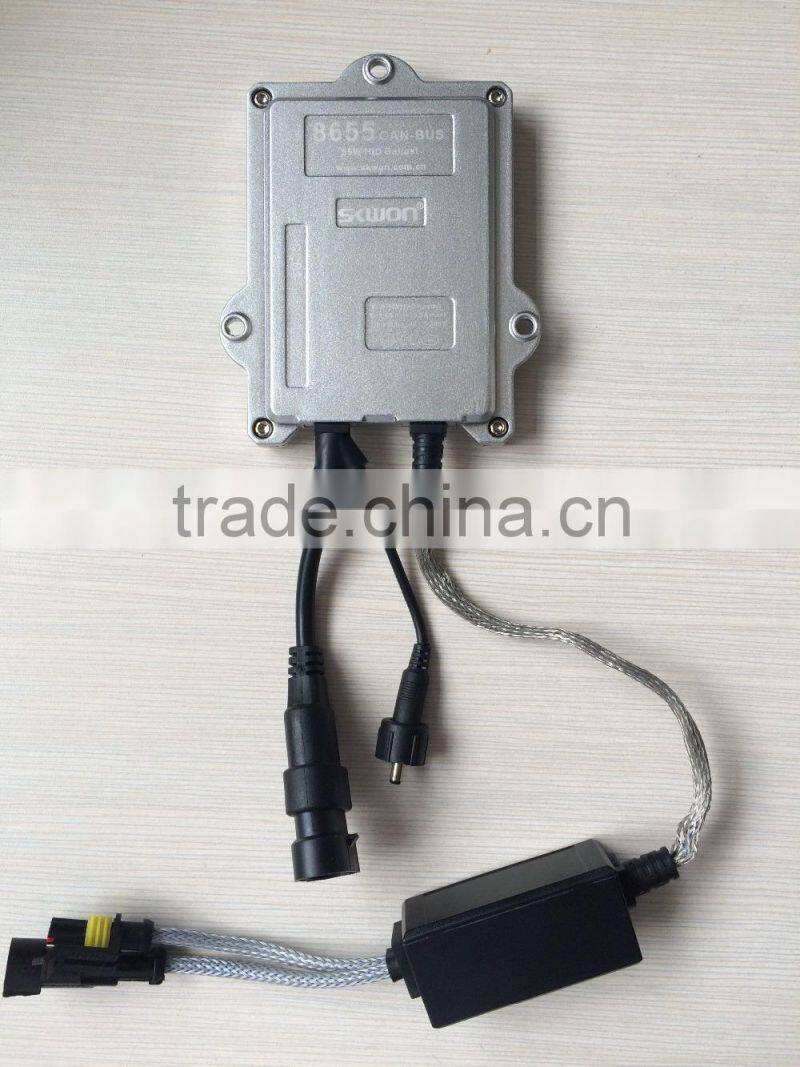

Xenon Replacement Ballast
- GUANGZHOU
 - T/T Credit Card PayPal

You May Like
-


Hottest New Canbus LED Headlight 45w 5400lm for Nissans Tidda Accessories, Peugeot 207 and Mazda CX9 Parts
 -


2016 LED Headlight Kit for Toyotas Avanzas 12v/24v 45w 5400lm Bulb
 -


New LED Headlight With American Version XHP-50 Chips for Hondas Civics 2008 Headlamps
 -


Hottest 45W 6000K LED Headlight 9005 for Hondas Elysions High Beam Headlight
 -


45W 6000K LED Headlight With 24 Months Warranty for VW Polo Headlight and PCX Headlight
 -


High Power Car Led Headlight H1 H3 H4 H7 H8 H9 H10 H11 9005 9006 9012 With Top Quality

Product Details
| Type | Other, Headlight, Headlight | Voltage | 12V | |
| Lamp Type | HID Xenon | Certification | IS09001:2008;CE;E-mark;TUV | |
| Car Make | All of cars | Place of Origin | Guangdong, China | |
| Brand Name | ADL-SSC | Model Number | ADL-8655 | |
| Warranty | 18 Months |
Product Description
HID Xenon Ballast from China
1.Product details:
HID ballast ,AV 12V 35W ADL--8617:
Specification of HID Conversion Kit
1) With CE & E-mark ISO certificate
2) Waterproof and shockproof with perfect performance
4) Super brightness: four-time brightness than normal halogen lamp
5) Color temperature: 3000k,-12000k
HID Advantages:
HID: Extension of life span of battery due to the low power consumption
HID: Excellent in signal and lane reflection due to the high-color temperature
HID: looks more luxurious than halogen lamp
HID: Fully compatible with original halogen system, easy to install
HID: Small orders are accepted
HID: Super brightness: four-time brightness than normal halogen lamp

| Item | Parameter | Remarks | |
| Electric Parameter | Efficiency | >83% | |
| Output Power | 34-36W | ||
| Input Voltage | ≥9V | ||
| Working Voltage | 9V-17V | ||
| Max Input Current | 5.0-7.5A | 12V Start-up | |
| Stable Current | 3.4-3.8A | 12V Input Voltage | |
| Bulb Voltage | 85V±17V | ||
| Bulb Flexible Voltage | <5V | ||
| Test under high temperature-90°C | Work normally,Current:3.3-3.6A | Low/High Temperature Alternating Chamber | |
| Bulb Voltage Wave form | Square | ||
| Bulb Working Frequency | 320HZ±5% | ||
| Max Output Current | <2.3A | ||
| Min Output Current | <0.25A | ||
| Discharge Protection Voltage | 400V | ||
| Ignition Voltage | 20KV-23KV | ||
| Stability Time | 40-60S | Cool Bulb | |
| Working Temperature | -40°C--105°C | ||
| Saving Temperature | -40°C--125°C | ||
| operating life | ≥3000hrs | ||
| Protect Performance | Bulb Discharge Protecting | Yes | |
| Bulb Short Circuit Protecting | Yes | ||
| Input mixed Collect Protecting | Yes | ||
| Input Low Voltage Protecting | <9V | ||
| Input High Voltage Protecting | ≥17V | ||
What makes these unique is the size of the ballast putting out so much power! Once you try out our Premium Slim Line HID kit you will never want to go back to your old halogens again!
All our HID upgrade kits are designed and manufactured to the highest quality and the components are tested thoroughly to ensure a very low failure rate. For this reason we are able to offer a fantastic 18 months warranty on both the Xenon bulbs and ballasts.
3.Why choose us
Quality
1) US All the materials of our hid kit can work in the temperature of: ~45°C~105°C,long lifespan, Others use lower level electronic components (even second-hand) , consumers are in the risk of faulty HID in very short time;
2) US Products testing: 13 QC procedures in production , 2 times(3 hous) anti-aging tests before delievry. Others take only 5-8 QC steps and only 1 time(one hour) anti-aging test,
3) Damage rate: <1% (all ballasts and bulbs), for more than 4 years, our quality is very stable, 1% is not just a just official saying but the real defective rate in our sales history;
Advantages
1) Full series HID: we produce AC normal/slim ballast, DC normal/slim ballast, CAN BUS ballast, 9~32V ballast, all in one HID kit, bulbs, adapter, socket, etc
2)One-Stop car lighting and electronic products supplier: besides HID products, we also produce parking sensors,push button(smart start systems),two way smart keys, supplying LED Headlight at competitive price
3) Worry-free after-sale service: all of our products have production lot#/ serial # and date on the surface, you just need to cut the wires and then send the photos to us(really easy to replace)
4) Leading time: we can delivery large order within 15~20 days after order confirmation
5) 8 years' export team: professional, efficient to know what you needs and make ideal solutions to speed up your purchase projects
6) Denso: our factory is under management of Japanese experienced professionals who worked for over 40 years in world 1st level company-Denso.
Our HID ballast will be shipped by:

our ballasts suitable for these cars:
The package of our HID ballast :

Basic Information
| Product/Service (We Sell): | HID xenon kit,OBD smart start system,Car parking sensor,Car DVR,HID ballast | |
| Number of Employees: | 501 - 1000 People |
Trade & Market
| Main Markets: | Western Europe Central America Mid East South America Oceania North America Eastern Europe Southeast Asia  | |
| Total Annual Sales Volume: | US$10 Million - US$50 Million | |
| Export Percentage: | 81% - 90% |
Factory Information
| Factory Size (ters): | 5,000-10,000 square meters | |
| Factory Location: | No.241 Huashan Commercial Road, Huadu District, Guangzhou 510880, China. | |
| Number of Production Lines: | Above 10 | |
| Number of R&D Staff: | 11 - 20 People | |
| Number of QC Staff: | 21 - 30 People | |
| Management Certification: | ISO14001 International Commerce Exportor | |
| Contract Manufacturing: | OEM Service Offered Design Service Offered |


FAQ:
1. How long will it take to execute my order?
This depends on the the order quantity and models. our normal lead time is 3-7 working days. We will let you know the estimated lead time after your deposit..
2. How much will the shipping cost be?
This will depend on the size and weight of your order and the method of shipping, small order can send it by DHL, about the fee , you need to tell me the address and what models you choose from our list.
3. Do you provide samples?
Yes, we can provide samples of all the items listed
We can send the samples by DHL, FEDEX, EMS, UPS or to your warehouse,
4. Do you have products in stock?
Because we only do wholesale, usually do not have stock, you can inquire me about the details models you want, then I can check if have stock or not for you,
5. Do I need to send the defective products back to you for warranty?
No, you don't need to send it back for warranty.
Pls provide us the pictures or videos if there is any quality problem during this period.
We will confirm the issues soon, then you need to cut wires or destroy the defective and show us picture and videos again.
If any damage happens not caused by misuse or vandalism, then we'll send you a new one.
| Contact information | |||||||
| Sales manager: Amy | |||||||
| Fax: 0086-20-37767041 | |||||||
| Tel: +86-20-37767041 | |||||||
| Mob/ whatsapp: +8613422295702 | |||||||
| Skype: aodelin.sales2 | |||||||
| Alibaba web: http://aodelin.en.china.cn/ | |||||||
| Web: | |||||||
Add:No.241 Huashan Commercial Road,Huadu District,Guangzhou 510880,China  |
welcome to visit our factory !
