Home > Products > HID Conversion Kit > ADL 2016 12V 35W HID All in One Xenon Kits for Headlight With 6000K 4800LM Hid Bulbs
ADL 2016 12V 35W HID All in One Xenon Kits for Headlight With 6000K 4800LM Hid Bulbs
US$ 39 - 50
/ Set
100 Sets(Min. Order)
- Huangpu Guangzhou
- T/T Credit Card
You May Like
-
Factory Manufactures Hid Headlight Kit 35w All in One Kits With 6000k, 4800lm for Buick, Skoda, H1,h4,h7,h11,h13,9005,9006,9012.
-
Factory Price, High Quality 12v/35w Hid Kit 6000k, 4800lm All in One Hid Xenon Headlight for Car Kits With Hid Bulbs
-
All in One Hid Xenon Kit 12v35w 55w Xenon Hid Ballast 6000k for Golf 6,golf 7 With 24 Months Warranty and H1,h4,h7
-
2016 New Product High Quality 12v 35W All in One Hid Xenon Kit
-
Automobile HID Ballast Hid Conversion Kit High Quality OEM AC Stable Slim Canbus Ballast 9-32V 35W 55W 75W Headlight Car Part
-
Reliable Quality Reasonable Price Canbus HID Ballast Accept Paypal
Product Details
| Type | Headlight | Voltage | 12V | |
| Lamp Type | HID Xenon | Certification | CE ROHS EMARK | |
| Car Make | All of cars | Place of Origin | Guangdong, China | |
| Brand Name | ADL | Model Number | All In One HID kit | |
| Warranty | 24 Months |
Product Description
ALL-IN-ONE HID KIT
Product Description
1. Product specification
1. No highline, overall shield radiation and interference;
2. Inside wire harness, no need to cut off wires or dig holes when install;
3. Overall digital frequency conversion, highly effective and reliable.(high voltage separate with low voltage)
4. Mini Round shape, can be all in one with more than 90% waterproof rubber ring.
5. Structure is compact, reasonable, shapely and fashion;
6. The color temperature is 6000K.

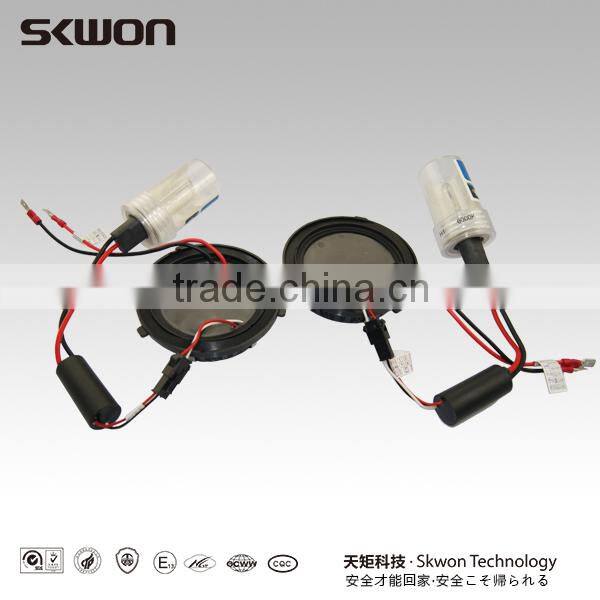

2. Pictures of product
3. Parameters of product
| Item | Parameter | Remarks | |
| Electric Parameter | Efficiency | >85% | |
| Output Power | 33-35W | ||
| Input Voltage | ≥9V | ||
| Working Voltage | 9V-18V | ||
| Max Input Current | 6.0-7.5A | 12V Start-up | |
| Stable Current | 3.1-3.5A | 12V Input Voltage | |
| Bulb Voltage | 85V±17V | ||
| Bulb Flexible Voltage | <5V | ||
| Test under high temperature-90°C | Work normally,Current:3.1-3.5A | Low/High Temperature Alternating Chamber | |
| Bulb Voltage Wave form | Square | ||
| Bulb Working Frequency | 320HZ±5% | ||
| Max Output Current | <2.3A | ||
| Min Output Current | <0.25A | ||
| Discharge Protection Voltage | 400V | ||
| Ignition Voltage | 16KV-23KV | ||
| Stability Time | 40-60S | Cool Bulb | |
| Working Temperature | -40°C--105°C | ||
| Saving Temperature | -40°C--125°C | ||
| operating life | ≥3000hrs | ||
| Protecting Performance | Bulb Discharge Protecting | Yes | |
| Bulb Short Circuit Protecting | Yes | ||
| Input mixed Collect Protecting | Yes | ||
| Input Low Voltage Protecting | <9V | ||
| Input High Voltage Protecting | ≥17V | ||
| Dimension | Outside diameter | Φ78mm | |
| Height | 15mm | ||
Our Services
1. We promise
- All inquiries will be replied immediately,online,email,skype,trade manager...ect
- Welcome to visit our website and factory
- Any your customized is available.(Function,Housing color,System language,Color box and user manual customized)
2. After-sales service
- All products will has been through strictly quality checked by our professional inspector before packing
- All products will be packed well before shipping
- All products have 24 months warranty

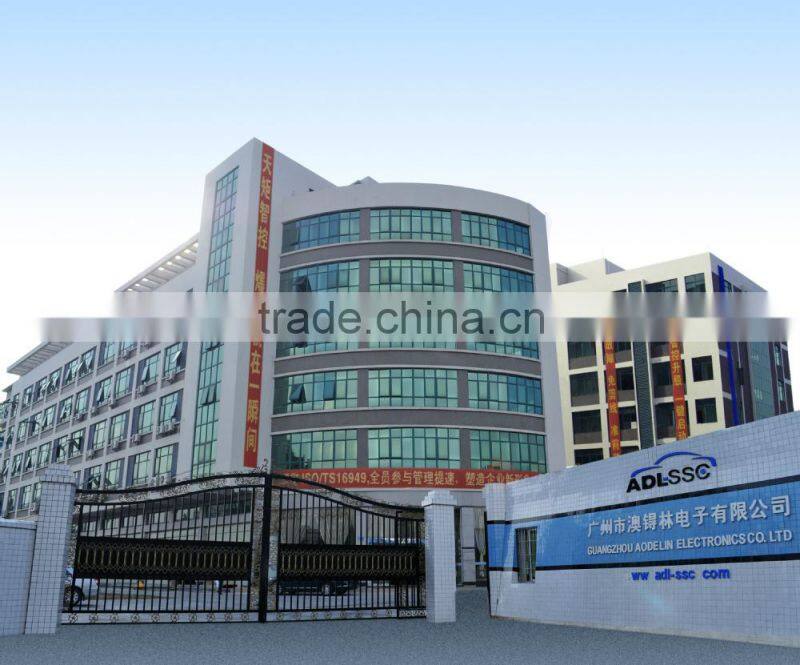

Company Information
| Factory Size (ters) | 5,000-10,000 square meters |
| Factory Location | No.241 Huashan Commercial Road, Huadu District, Guangzhou 510880, China. |
| Number of R&D Staff | 11 - 20 People |
| Number of QC Staff | 21 - 30 People |
| Management Certification | SO14001 International Commerce Exportor |
| OEM | Available |
| Main Market | Western Europe, Oceania, South America,Noth America, Southeast Asia |
You may ask: why buy from us? Because...
Quality:
1) We are the exclusive OEM supplier of HID light to Chinese Car manufacturers (Geely, Changan Suzuki,Lifan Motors), passed TS16949, ISO9001:2008, CE, E-Mark certifications, while others have no factory management systems;
2) Products testing: 13 QC procedures in production , 2 times (each for 3 hous) anti-aging tests before delievry. while others take only 5-8 QC steps and only 1 time (for one hour) anti-aging test;
3) All the materials of our hid kit can work between the temperature of -45°C and 105°C (long lifespan), while others use electronic components of poor quality (even second-hand) , consumers are in the risk of faulty HID in very short time;
4) Defective rate: <1% (all ballasts and bulbs), for more than 4 years, our quality is very stable, 1% is not just a just official saying but the real defective rate in our sales history;
5) Warranty: 18 months;
6) Our factory is under management of Japanese experienced professionals who worked in world-class company-Denso for over 40 years.
Packaging & Shipping

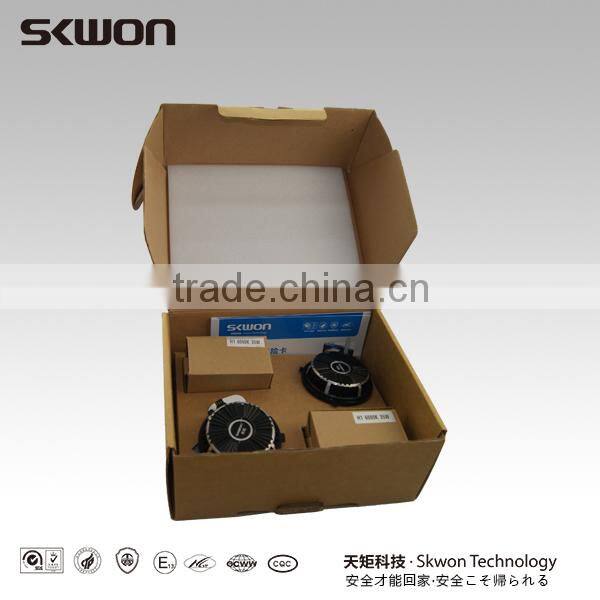

1. Packaging
- Kit size: 27*21*11.5cm
- G.W: 0.833 kg/kit
- 8 kits/Carton
- Carton size: 47*29*43.5cm
2. Shipping
FAQ
Q: Could you provide the sample?
A: Sure, and we can discuss the payment.
Q: What about your payment?
A: 30% deposit in advance, 70% balance should be paid before delivery.
Q: What's is your MOQ?
A: Usually 100 sets, for special requirement, please contact us.
Q: How long will you prepar for goods?
A: Usually in one week , if large quantity, pls contact us first and we could prepar for them in advance .
