Home > Products > HID Ballast > Waterproof 12V DC AC Error Free HID Xenon Ballast ADL5009
Waterproof 12V DC AC Error Free HID Xenon Ballast ADL5009
- 500000 Piece / Pieces per Month
- Guangzhou
- T/T Credit Card PayPal
You May Like
-
Best Fast Bright HID Ballast Super Canbus For HID Xenon Lamp
-
Auto Lighting Canbus Pro 12V 35W HID Ballast Repair Kit ADL9017
-
All Sales Thin 35W 12V/24V HID Adjustable Xenon Ballast
-
Slim Electronic HID Ballast 35W 23000V For UV Lamp HID Xenon Bulbs
-
Wholesale Error Light Canceller Canbus Pro HID Ballast Xenon Repar Kit
-
CE Emark Adjustable Xenon HID ballast For Xenon Light Bulb
Product Details
| Type | Headlight | Voltage | 12V | |
| Lamp Type | HID Xenon | Certification | CE ROHS EMARK CCC ISO | |
| Car Make | Cars | Brand Name | ADL-SSC/OEM/ODM | |
| Model Number | ADL-5009 | Warranty | 18 Months |
Product Description
ADL-5009 HID Electrionic Ballast

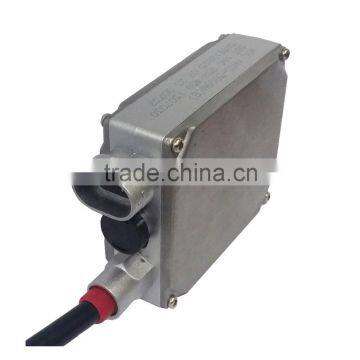

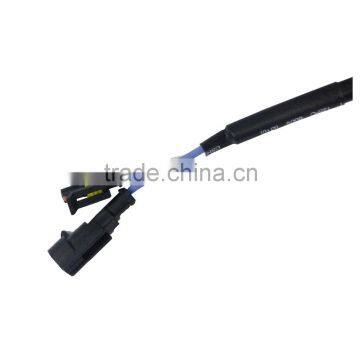

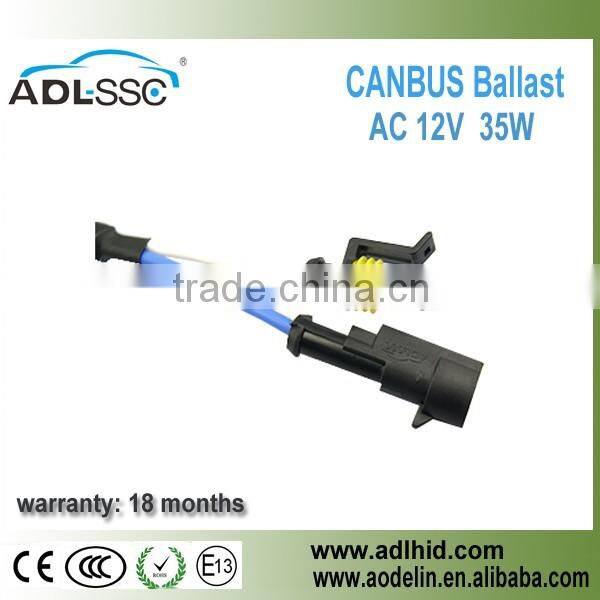

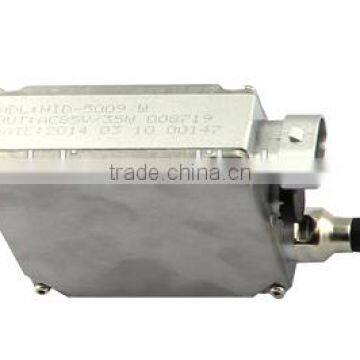

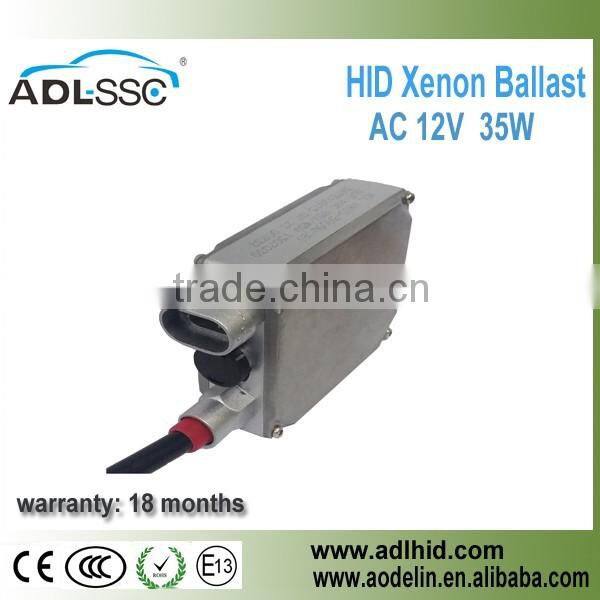

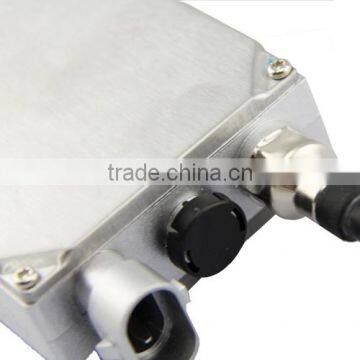

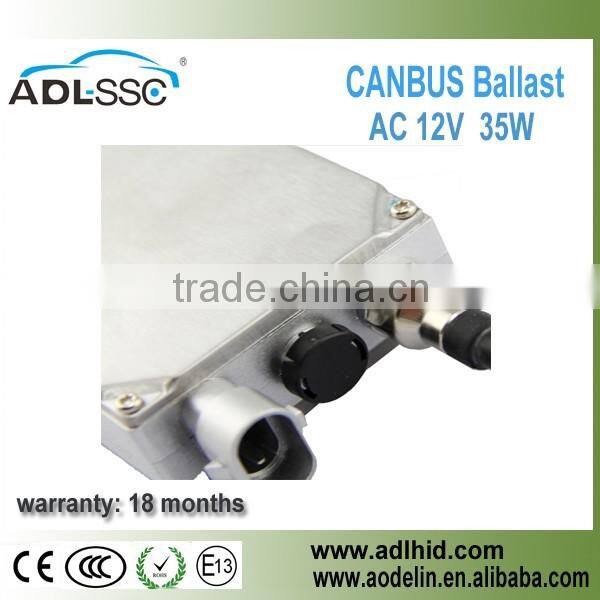

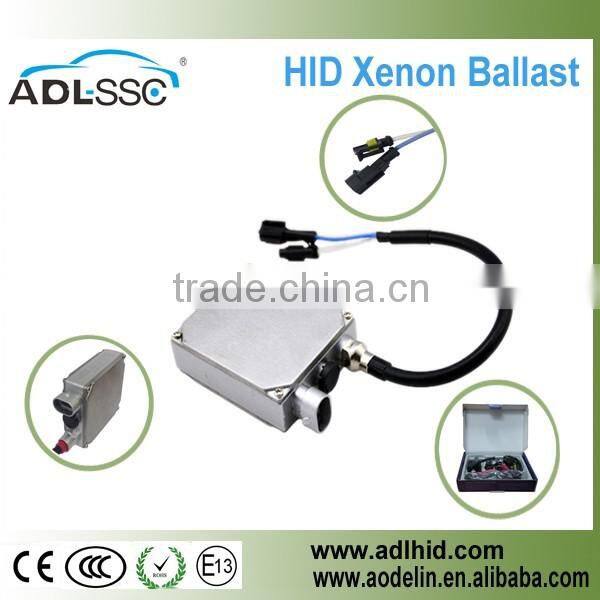

1.Pictures of Product
2.Description of Product
Item | Parameter | Remarks | |
Electric Parameter | Efficiency | >83% |
|
| Output Power | 33-36W |
|
| Input Voltage | ≥9V |
|
| Working Voltage | 9V-18V |
|
| Max Input Current | 5.0-7.5A | 12V Start-up |
| Stable Current | 3.3-3.7A | 12V Input Voltage |
| Bulb Voltage | 85V±20V |
|
| Bulb Flexible Voltage | <5V |
|
| Bulb Voltage Wave form | Square |
|
| Bulb Working Frequency | 320HZ±5% |
|
| Max Output Current | <2.3A |
|
| Min Output Current | <0.25A |
|
| Discharge Protection Voltage | 400V |
|
| Ignition Voltage | 16KV-23KV |
|
| Stability Time | <120S | Cool Bulb |
| Working Temperature | -40°C--105°C |
|
| Saving Temperature | -40°C--125°C |
|
| operating life | ≥30000hrs |
|
Protecting Performance | Bulb Discharge Protecting | Yes |
|
| Bulb Short Circuit Protecting | Yes |
|
| Input mixed Collect Protecting | Yes |
|
| Input Low Voltage Protecting | <9V |
|
| Input High Voltage Protecting | ≥17V |
|
3.Application of Product
Lamp Type | All Cars HID Xenon Bulbs |
Bulb Model: | H1, H3,H4, H7, H8, H9, H10, H11, H13, 9004, 9005, 9006, 9007, 880,881 |
| H4H/L, H13H/L, 9004H/L,9007H/L |
Color Temperature: | 4300k---12000k |
You may ask: why buy from us? Because...
1) We are the only one OEM supplier of HID light to Chinese Car manufacturers(Geely, Changan Suzuki,Lifan Motors), passed TS16949, ISO9001:2008, CE, E-Mark certifications, while others have no factory management systems;
2) Products testing: 13 QC procedures in production , 2 times(3 hous) anti-aging tests before delievry. while others take only 5-8 QC steps and only 1 time(one hour) anti-aging test,
3) All the materials of our hid kit can work in the temperature of: -45°C~105°C,long lifespan, while others use lower level electronic components (even second-hand) , consumers are in the risk of faulty HID in very short time;
4) Damage rate: <1% (all ballasts and bulbs), for more than 4 years, our quality is very stable, 1% is not just a just official saying but the real defective rate in our sales history;
5) Warranty: 15-18 months;
6) Above all, our factory is under management of Japanese experienced professionals who worked for over 40 years in world 1st level company-Denso.
4.Certifications of Product
1. Packaging of Product
2. Our products will be delivered by:
1.Our Company View

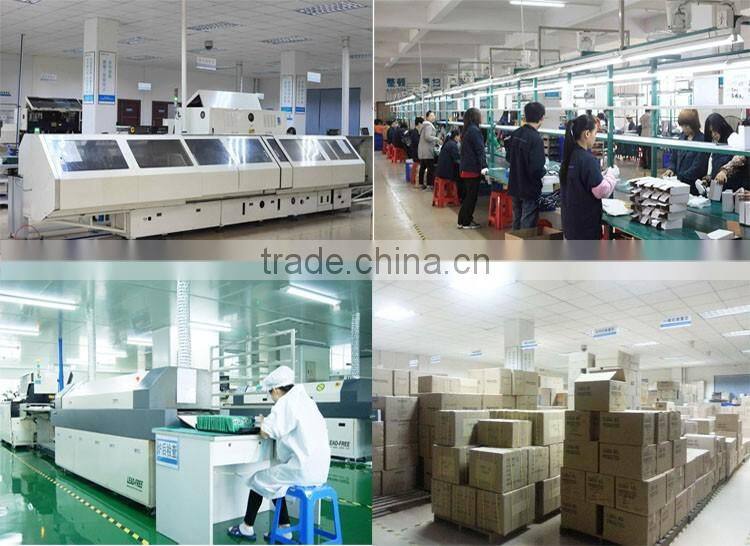

2.Workshop of Our Company

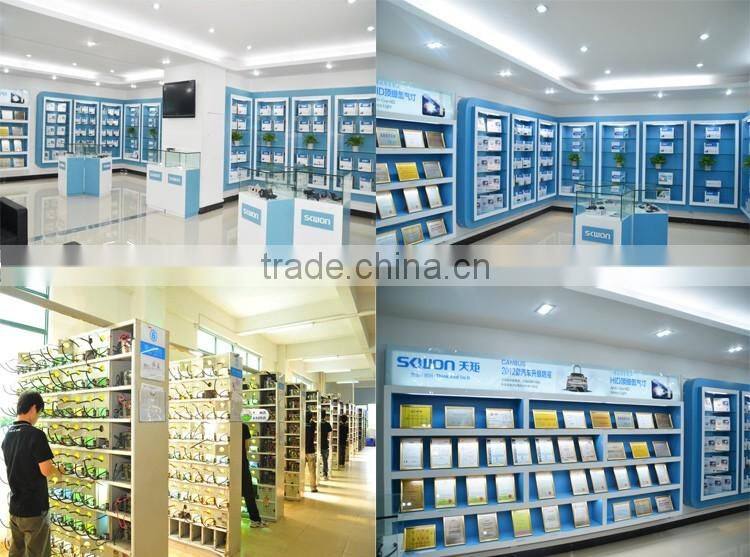

3. Exhibition Room
5.Our Fair
FAQ:
1. How long will it take to execute my order?
This depends on the the order quantity and models. our normal lead time is 3-7 working days. We will let you know the estimated lead time after your deposit..
2. How much will the shipping cost be?
This will depend on the size and weight of your order and the method of shipping, small order can send it by DHL, about the fee , you need to tell me the address and what models you choose from our list.
3. Do you provide samples?
Yes, we can provide samples of all the items listed
We can send the samples by DHL, FEDEX, EMS, UPS or to your warehouse,
4. Do I need to send the defective products back to you for warranty?
No, you don't need to send it back for warranty.
Pls provide us the pictures or videos if there is any quality problem during this period.
We will confirm the issues soon, then you need to cut wires or destroy the defective and show us picture and videos again.
If any damage happens not caused by misuse or vandalism, then we'll send you a new one.
