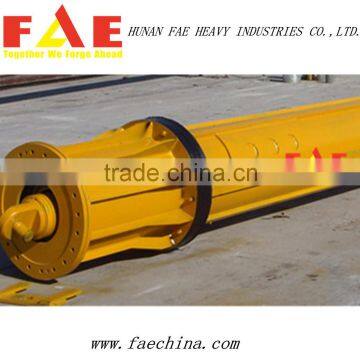

Bauer Baby Drill Rig Telescoping Friction Kelly Bar
- China Port/Shanghai/shenzhen/Tianjin
 - T/T Credit Card

You May Like
-


4 Sections-interlocking Kelly Bar/ Rotary Drilling Kelly Bar for Piling Rig Macthed With IMT
 -


Best Quality Mait HR180 Interlocking Kelly Bar for Drilling Rig
 -


Fae 6-key Design and Standard Modular Design of Kelly Long
 -


Fae 6-key Design and Standard Modular Design of Rubber Air Spring
 -


China Fae Professional Manufacturer of Cfa Long Helix Drill Pipe
 -


Fae Far Foundation Rig 6 Key Design and Standard Modular Design of Square & Hexagonal Kelly

Product Details
| Place of Origin | Hunan, China | Brand Name | FAE | |
| Model Number | kelly bar |
Product Description

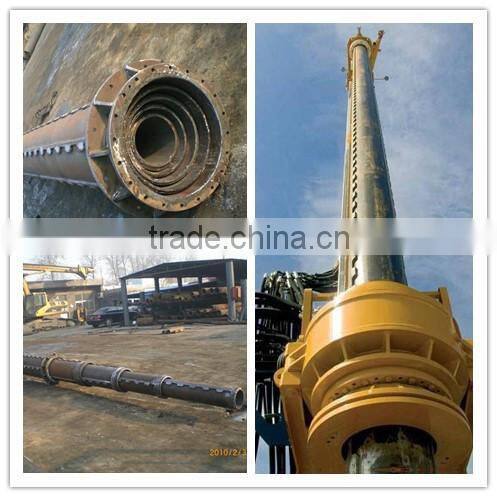

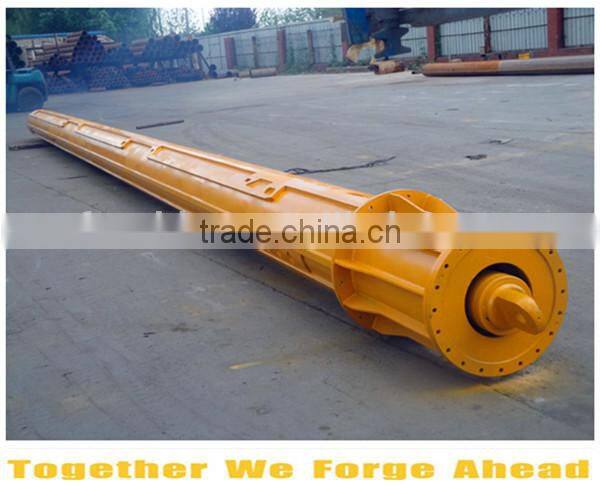

Bauer baby drill rig telescoping friction kelly bar
What FAE could offer?
There are mainly two types of kelly bar:
1.Interlocking Kelly Bar
2.Friction Kelly Bar

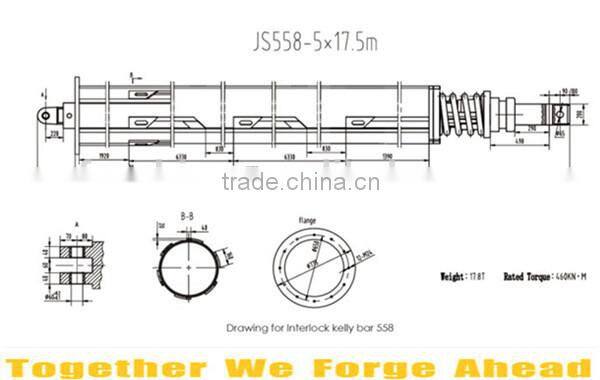

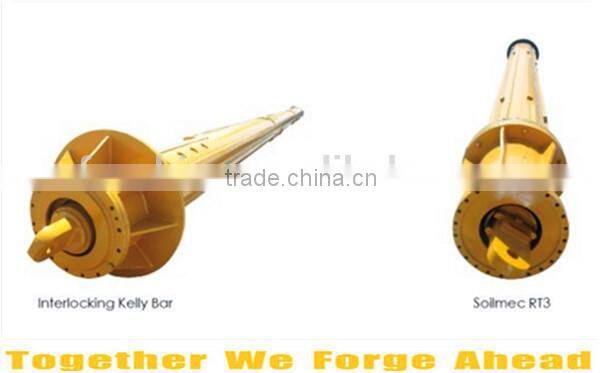

1) Interlocking Kelly Bar
Interlocking kelly bars are used with pilling rigs for drilling in dense sand,gravel and weak to strong rock . The interlocking kelly bars can be fully locked by mechanical locking system on each section. Kelly bars can be equipped with specially designed springs or pressure plates for shock absorbing purpose.

Please check details as below:
| Name of product | EXternal dimeter (mm)  | Pith No | Length section (m)  | Rated tarquel (KN*M)  | Depth (m)  |
| Interlocking kelly bar | 355 | 3 | 10-13 | 180 | 27-36 |
| 377 | 3,4 | 10-12.5 | 220 | 27-44 | |
| 406 | 3,4 | 10-15 | 230 | 27-57 | |
| 419 | 3,4 | 10-15 | 250 | 27-57 | |
| 440 | 3,4 | 10-15 | 250 | 27-57 | |
| 470 | 3,4 | 10-17 | 280 | 27-65 | |
| 508 | 3,4 | 10-17 | 320 | 27-65 | |
| 530 | 3,4 | 10-20 | 380 | 27-76 | |
| 575 | 3,4 | 10-21 | 420 | 27-80 | |
| 630 | 3,4 | 10-21 | 450 | 27-80 |

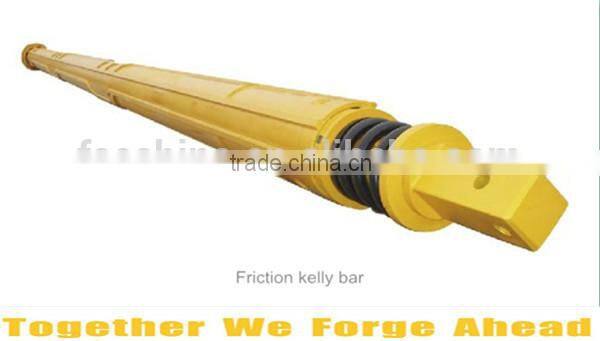

2) Friction Kelly bar
Friction Kelly bar is another type kelly of bar ,which the external key is composed of 3 or 6 wear -resistant strip without pressunrizing point .This kelly bar can form pressure force when the kelly bar is rotary.can produce peripheral force and the rotary passing down the pressure force,can produce the friction force.This kelly bar has the advantage of opeerating sample .drilling deep ,but with less pressure transmission.So this kelly bar is suitable for the soft and silt layer.
| Name of product | EXternal dimeter (mm)  | Pitch No | Length section (m)  | Rated tarquel (KN*M)  | Depth (m)  |
| Friction kelly bar | 355 | 4,5 | 10-13 | 180 | 36-60 |
| 377 | 4,5 | 10-14 | 200 | 36-65 | |
| 406 | 4,5 | 10-15 | 210 | 36-70 | |
| 419 | 4,5 | 10-15 | 250 | 36-70 | |
| 440 | 4,5 | 10-15 | 250 | 36-70 | |
| 470 | 4,5,6 | 10-17 | 280 | 36-95 | |
| 508 | 4,5,6 | 10-18.5 | 320 | 36-103 | |
| 530 | 4,5,6 | 10-19 | 380 | 36-106 | |
| 575 | 4,5,6 | 10-21 | 420 | 36-120 | |
| 630 | 4,5,6 | 10-21 | 450 | 36-120 |
What is FAE kelly bar?

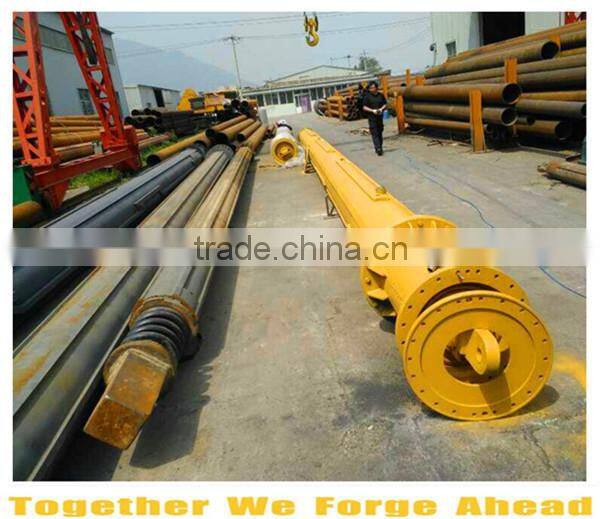

What are FAE kelly bar production?

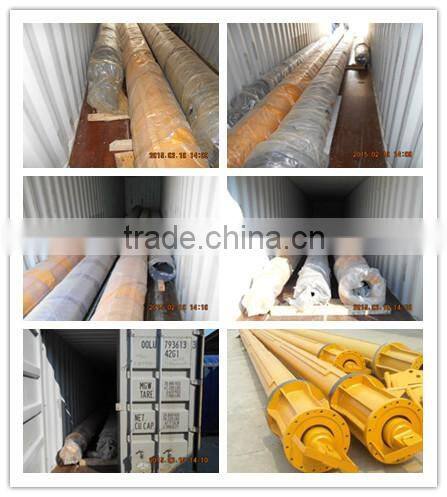

What are FAE Kelly Bar delivery?

Why Choose us?
Company View
Our Certifications
What are FAE business cooperation?
FAQ
Awaiting for your inquiry,we will response you at the first time!
Please contact us from this page or find our contacts from the Index page of our site.
FAE website for your further information:
WWW.FAECHINA.COM
