Home > Products > Hammer Drill Bits&Chisels > SDS Plus Double Flute Hammer Drill Bits

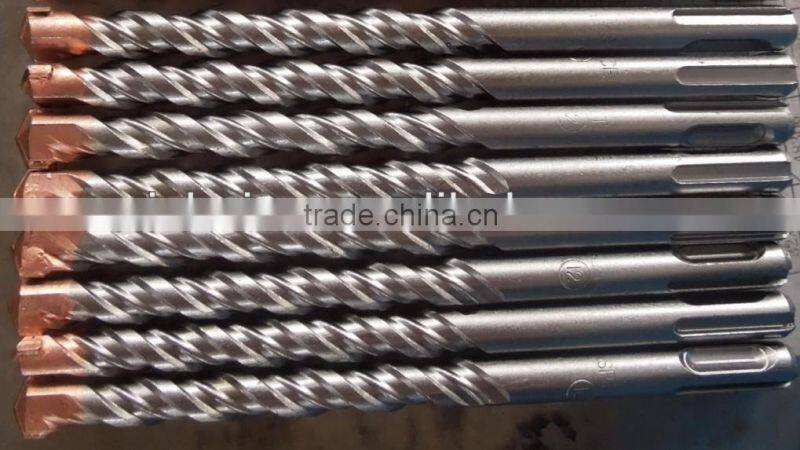

SDS Plus Double Flute Hammer Drill Bits
USD $0.15 - $0.23
/ Piece
1000 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Richoice | |
| Model Number | RQH025 | Type | Center Drill Bit | |
| Material | Tungsten Carbide | Use | Masonry Drilling |
Product Description
Specifications
Manufacturing process: MilledCopper coated tip
Point angle: 130
Double flute
Material: 40Cr, tungsten carbide
Good quality SDS Plus Hammer Drill Bit
Manufacturing process: Milled
Point angle: 130
Flute: Single
Material: 40Cr, tungsten carbide
Finish: Sandblasted, Zine-coated, Ni-coated
Diameter: 4-30mm
| Diameter | Overall Length | Flute Length | Diameter | Overall Length | Flute Length | |
| mm | mm | mm | mm | mm | mm | |
| 4 | 110mm | 45mm | 13 | 160mm | 80mm | |
| 4 | 160mm | 95mm | 13 | 210mm | 130mm | |
| 5 | 110mm | 45mm | 13 | 260mm | 180mm | |
| 5 | 160mm | 95mm | 13 | 300mm | 220mm | |
| 5 | 210mm | 147mm | 13 | 460mm | 380mm | |
| 5 | 310mm | 247mm | 14 | 160mm | 80mm | |
| 5.5 | 110mm | 45mm | 14 | 200mm | 120mm | |
| 5.5 | 160mm | 95mm | 14 | 260mm | 180mm | |
| 5.5 | 210mm | 147mm | 14 | 300mm | 220mm | |
| 5.5 | 260mm | 197mm | 14 | 460mm | 380mm | |
| 5.5 | 310mm | 247mm | 14 | 600mm | 520mm | |
| 6 | 110mm | 45mm | 14 | 1000mm | 920mm | |
| 6 | 160mm | 97mm | 15 | 160mm | 80mm | |
| 6 | 210mm | 147mm | 15 | 200mm | 120mm | |
| 6 | 260mm | 197mm | 15 | 260mm | 180mm | |
| 6 | 460mm | 397mm | 15 | 460mm | 380mm | |
| 6.5 | 110mm | 45mm | 16 | 160mm | 80mm | |
| 6.5 | 160mm | 97mm | 16 | 200mm | 120mm | |
| 6.5 | 210mm | 147mm | 16 | 250mm | 180mm | |
| 6.5 | 260mm | 197mm | 16 | 300mm | 230mm | |
| 7 | 110mm | 45mm | 16 | 460mm | 380mm | |
| 7 | 160mm | 97mm | 16 | 600mm | 520mm | |
| 7 | 210mm | 147mm | 16 | 800mm | 720mm | |
| 8 | 110mm | 45mm | 16 | 1000mm | 920mm | |
| 8 | 160mm | 97mm | 17 | 200mm | 120mm | |
| 8 | 210mm | 147mm | 18 | 200mm | 120mm | |
| 8 | 260mm | 197mm | 18 | 250mm | 175mm | |
| 8 | 310mm | 247mm | 18 | 300mm | 220mm | |
| 8 | 460mm | 397mm | 18 | 460mm | 380mm | |
| 8 | 610mm | 545mm | 18 | 600mm | 520mm | |
| 9 | 160mm | 97mm | 18 | 1000mm | 920mm | |
| 9 | 210mm | 147mm | 19 | 200mm | 120mm | |
| 10 | 110mm | 45mm | 19 | 460mm | 380mm | |
| 10 | 160mm | 97mm | 20 | 200mm | 120mm | |
| 10 | 210mm | 147mm | 20 | 300mm | 220mm | |
| 10 | 260mm | 197mm | 20 | 460mm | 380mm | |
| 10 | 310mm | 247mm | 20 | 600mm | 520mm | |
| 10 | 360mm | 297mm | 20 | 1000mm | 920mm | |
| 10 | 460mm | 397mm | 22 | 250mm | 175mm | |
| 10 | 600mm | 537mm | 22 | 450mm | 370mm | |
| 10 | 1000mm | 937mm | 22 | 600mm | 520mm | |
| 11 | 160mm | 95mm | 22 | 1000mm | 920mm | |
| 11 | 210mm | 145mm | 24 | 250mm | 175mm | |
| 11 | 260mm | 195mm | 24 | 450mm | 370mm | |
| 11 | 300mm | 235mm | 25 | 250mm | 175mm | |
| 12 | 160mm | 85mm | 25 | 450mm | 370mm | |
| 12 | 210mm | 135mm | 25 | 600mm | 520mm | |
| 12 | 260mm | 185mm | 25 | 1000mm | 920mm | |
| 12 | 310mm | 235mm | 26 | 250mm | 175mm | |
| 12 | 460mm | 385mm | 26 | 450mm | 370mm | |
| 12 | 600mm | 525mm | 28 | 450mm | 370mm | |
| 12 | 1000mm | 920mm | 28 | 460mm | 380mm |
Please inquiry us for more information
