Best Selling Products in America Security Wireless Digital IP Cameras With Pan/tilt Rotate Bracket

Model:

R-H234N

R-H334N

R-H534N

Camera

Imaging sensor:

1/4" CMOS progressive scan

1/3" CMOS progressive scan

1/2.8" SONY progressive

Signal system:

PAL / NTSC adjustable

Scanning mode:

Progressive scanning

Illumination:

Color 0.2 lux, black & white 0.05 lux, IR on 0 lux

Color 0.2 lux, black & white 0.02 lux, IR on 0 lux

Color 0.2 lux, black & white 0.02 lux, IR on 0 lux

Lens:

2.8-12mm motorized zoom lens , 3 million pixel 4-12mm fixed focus CS lens

Day and night   switch:

IR-CUT dual optical filters auto switch in day and night

Electronic shutter:

Manual / auto ( adjustable, 1 / 25 ~ 1 / 4000 seconds)

White balance:

Auto / manual

DNR:

3D-DNR

IR source:

2pcs SMD array light source+ Finland LEDIL light lens

Effective night vision distance:

50 meters (measured value without light condition)

Standard compression

Image compression:

H.264

Video bit rate:

128 Kbps -- 8 Mbps; CBR / VBR adjustable

Audio compression:

G.711 / G.726

Audio bit rate:

64 Kbps (G.711) / 16 Kbps (G.726)


Max image size:

1280 x 800

1296 x 976

1984 x 1225

Frame rate:

1920 x 1080 @ 30 fps; 1280 x 960 @ 30 fps; 1280 x 720 @ 30 fps; 704 x 576 @ 25 fps; 640 x 360 @ 25 fps; 352 x 88 @ 25 fps

Image adjustment:

Through IE can adjust Saturation, brightness, contrast, sharpness

Image mirroring:

Horizontal mirroring, vertical mirroring

Scene:

Auto, indoor, outdoor

Digital enlarge:

Can achieve through NVR, P2P hd monitoring management software

Function

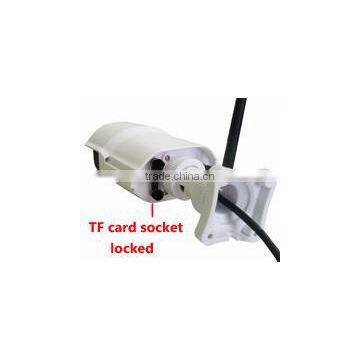

Storage:

Support TF card storage

Interface protocol:

ONVIF

Support protocol:

TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6, Bonjour (SIP, SRTP optional)

Intelligent alarm:

Motion detection, mask alarm, network cable break , IP address conflict, storage card is full, storage device is wrong

Audio pickup:

Can add internal audio pickup, also support external audio pickup

POE power supply:

Support POE power supply (optional), internal and external type

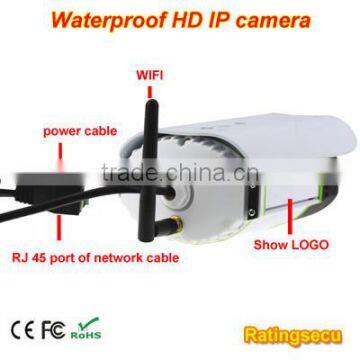

WIFI:

Support WIFI function (optional)

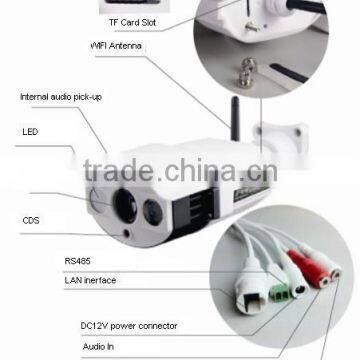

Interface

Communication interface:

1pc RJ45 10M / 100M Adaptive Ethernet port

Basic parameter

Power input:

DC 12V±10% / POE

Power consumption:

1W (IR off) / 5.5W (IR on)

1.1W / 5.6W (IR on)

Work environment:

-35℃ ~ 60℃, humidity is less than 95% (no condensation)

Size:

140 mm x 75 mm x 62 mm
