Home > Products > Abrasive Cutting Wheel > Resin Cutting Wheel for Stone

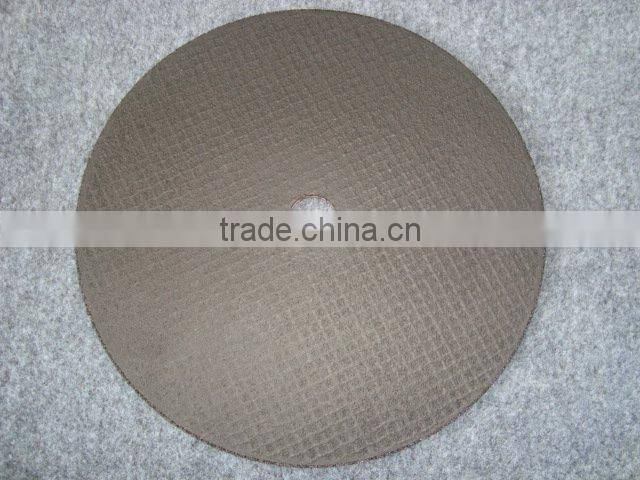

Resin Cutting Wheel for Stone
US$ 0.114 - 3.214
/ Piece
1000 Pieces(Min. Order)
- shanghai
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Richoice | |
| Model Number | RQAC0210025A/B | Type | Other, Abrasive Disc, T41, flat | |
| Size | 230mm*3.0*22.23 |
Product Description
Cutting Wheel for Stone
Material:Aluminium Oxide or Zirconia Aluminium Oxide
Certificate:EN,MPA
Type:T41.T42
Size:100mm, 115mm, 125mm, 150mm...
| Art No. | Dimension | Max.operation speed | Standard package | ||||
| (D*T)(mm) | Bore | R.P.M. | M/S | Pcs/box | Pcs/ctn | Kg/ctn | |
| RQAC0210025A/B | 100*2.5 | 16(5/8") | 15300 | 80 | 25 | 400 | 20 |
| RQAC0210030A/B | 100*3.0 | 16(5/8") | 15300 | 80 | 25 | 400 | 21.1 |
| RQAC0211525A/B | 115*2.5 | 22.2(7/8") | 13300 | 80 | 25 | 200 | 11.9 |
| RQAC0211530A/B | 115*3.0 | 22.2(7/8") | 13300 | 80 | 25 | 200 | 12.5 |
| RQAC0212525A/B | 125*2.5 | 22.2(7/8") | 12200 | 80 | 25 | 200 | 13.1 |
| RQAC0212530A/B | 125*3.0 | 22.2(7/8") | 12200 | 80 | 25 | 200 | 15 |
| RQAC0215025A/B | 150*2.5 | 22.2(7/8") | 10200 | 80 | 25 | 200 | 18.4 |
| RQAC0215030A/B | 150*3.0 | 22.2(7/8") | 10200 | 80 | 25 | 200 | 21.1 |
| RQAC0218020A/B | 180*2.0 | 22.2(7/8") | 8500 | 80 | 50 | 200 | 21.1 |
| RQAC0218025A/B | 180*2.5 | 22.2(7/8") | 8500 | 80 | 25 | 100 | 13.5 |
| RQAC0218030A/B | 180*3.0 | 22.2(7/8") | 8500 | 80 | 25 | 100 | 15.4 |
| RQAC0218030A/B | 180*3.0 | 16(5/8")-Diamond Bore | 8500 | 80 | 25 | 100 | 15.4 |
| RQAC0218035A/B | 180*3.5 | 22.2(7/8") | 8500 | 80 | 25 | 100 | 17.3 |
| RQAC0223020A/B | 230*2.0 | 22.2(7/8") | 6600 | 80 | 50 | 100 | 18.2 |
| RQAC0223025A/B | 230*2.5 | 22.2(7/8") | 6600 | 80 | 25 | 50 | 12.5 |
| RQAC0223030A/B | 230*3.0 | 22.2(7/8") | 6600 | 80 | 25 | 50 | 14.9 |
| RQAC0223035A/B | 230*3.5 | 22.2(7/8") | 6600 | 80 | 25 | 50 | 16.3 |
| Application Chart for Cut-off Wheels(Recommendations) | |||||
| Portable Machine | Stationary Machine | ||||
| Application Material | Workpiece Size | Thickness Range | Wheel Diameter Range | Wheel Diameter | |
| 100mm-125mm | 150mm-230mm | 300mm-400mm | |||
| Mild Steel | Normal Size | T=1.0mm-1.6mm | A60S,T A36S,T | A60S,T A36S,T | |
| T=1.8mm-2.0mm | A36S,T | A36S,T | |||
| T=2.5mm-3.5mm | A30R,S, A36R,S | A30R,S, A36R,S | A30RQ A36RQ | ||
| Large Size | A30R, A24R A30P, A24P | A24Q, A30Q A24P, A30P | |||
| Alloy Steel, Stainless Steel | Normal Size | 100mm-125mm | 150mm-230mm | 300mm-400mm | |
| T=1.0mm-1.2mm | A60S | A60S | |||
| T=1.6mm | A36S | A36S | |||
| T=1.8mm-2.0mm | A36S | A36S | |||
| T=2.5mm-3.5mm | A30R,A36R A30P,A36P | A24R,A30R A24Q,A30Q | A24Q,A30Q A24P,A30P | ||
| Large Size | T=2.5mm-3.5mm | A30P,A24P A30Q,A24Q | |||
| Stone/Masonry | Normal and Large Size | 100mm-125mm | 150mm-230mm | 300mm-400mm | |
| T=1.6mm | C36T | C36T | |||
| T=1.8mm-2.0mm | C36S | C36S | |||
| T=2.5mm-3.5mm | C24R,C30R | C24R,C30R C24S,C30S | C24R,C30R C24S,C30S | ||
| Cast Iron | Normal Size | 100mm-125mm | 150mm-230mm | 300mm-400mm | |
| T=1.6mm | AC36R,ZA36R | AC36R,ZA36R | |||
| T=1.8mm-2.0mm | AC36R,ZA36R | AC36R,ZA36R | |||
| T=2.5mm-3.5mm | AC24R,AC30R ZA24R,ZA30R | AC24R,AC30R ZA24R,ZA30R | AC24Q,AC30Q ZA24Q,ZA30Q | ||
| Non-Ferrous Metal | Normal Size | 100mm-125mm | 150mm-230mm | 300mm-400mm | |
| T=1.6mm | AC36Q,A36Q | AC36Q,A36Q | |||
| T=1.8mm-2.0mm | AC36Q,A36Q | AC36Q,A36Q | |||
| T=2.5mm-3.5mm | AC24Q,A24Q | A24Q,A24Q | AC24Q,A24Q | ||
