Fuel Line Connector Fitting to Engine or Tank
- Ningbo Shanghai
- T/T Credit Card
You May Like
-
7.89mm for 3 Ways Adapter, Push Lock Fuel Line Fitting
-
7.89mm Nylon Fuel sc Apc Fast Connector
-
7.89mm 90 Degree lc Fast Connector
-
7.89mm 90 Degree Fuel Line Fast Connector
-
Male Hose Connector Adapter 3/8" Male Tank Connector
-
8mm Steel to 5/16 In. Nylon Hose Connector-tank / Fuel Quick Release Coupler
Product Details
| Type | Fuel Tank | Size | 9.89mm' ID10-90degree | |
| Car Make | All Cars | OE NO. | E4 | |
| Place of Origin | Zhejiang, China | Brand Name | AlwayTec | |
| Model Number | E4 | Warranty | 1 Years |
Product Description
Quick connector introduction

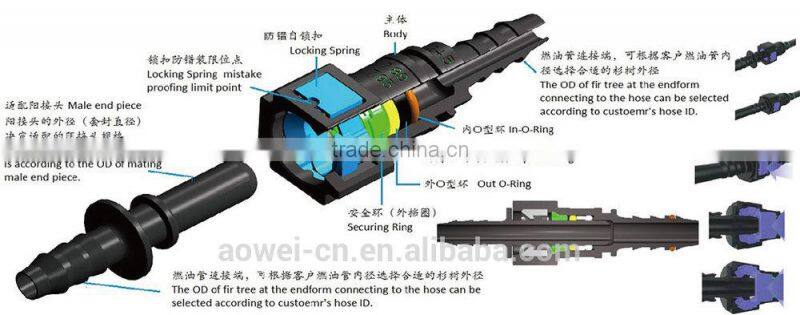

SAE Quick connector is made up of body,in O-ring,out O-ring,spacer ring, securing ring and locking spring.when a mating tube end piece inserts the connectors,as locking spring has certain elasticity,Tie clip fastener to connect two connectors together and then pull back to assure a complete connection.So that the quick connector is a diffferene.Repair removal as long as the first advance the male connector and then press the latch.At both ends of the clip button,lock expansion,you can easily pull out the connector,before reconnect ,it should be relubricate with heavy oil SAE30 for long life purpose.
Standard materials
SAE connectors are made up of body, in O-ring, out O-ring,spacer ring,securing ring and locking spring.
Body: 12 with 20 - 50% glass fiber content.
O-ring: NBR HNBR and FVMQ
Technical features
Medium | gasoline , diesel ,air ,water ,oil vapor |
Operating pressure | approx. 10 bar excess pressure |
Operating temperatures | -40°C up to +115°C engine compartment:-40°C up to +115°C short time up to +150°C |
Standard:
SAE J2044,TS 16949;
Product advantages
· Fast assembly without tool -> time and cost reduction
· robot assembly possible -> automated processes
· compact building method -> employment in extremely close installation conditions possible
· integrated seal - > optimal tightness
Applications in the automotive industry
Can be used to make both line-to-line or line-to-equipment connections.
· Fuel feed / return lines
· tank breathing
· Ventilation lines
· Oil cooler lines
· Vacuum control lines

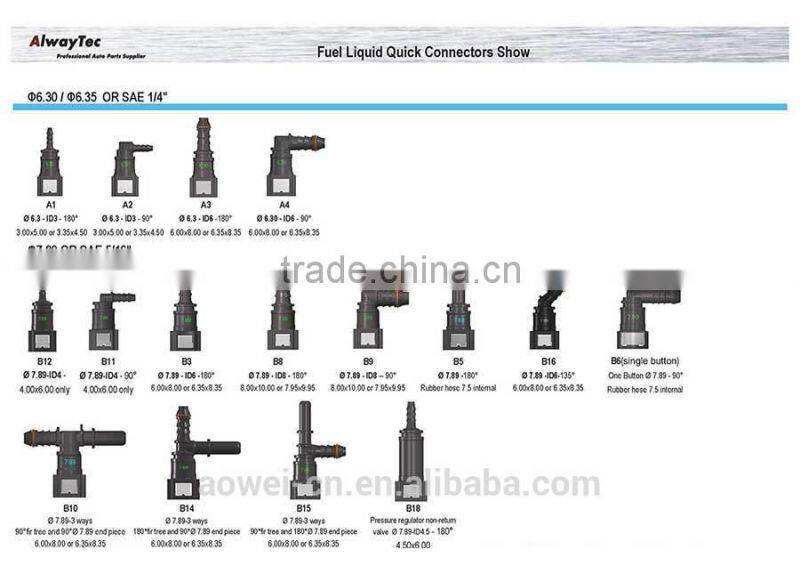

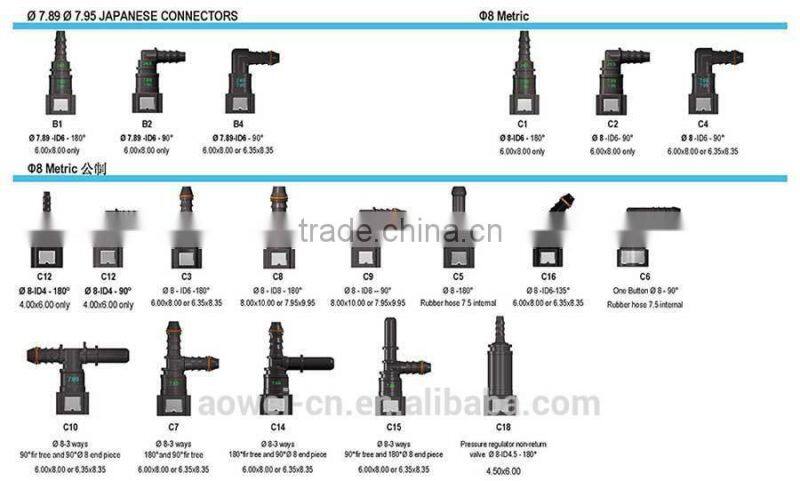

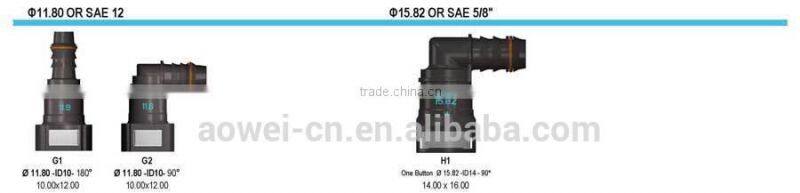

We have more than fifity types of connectors for you to chose.
