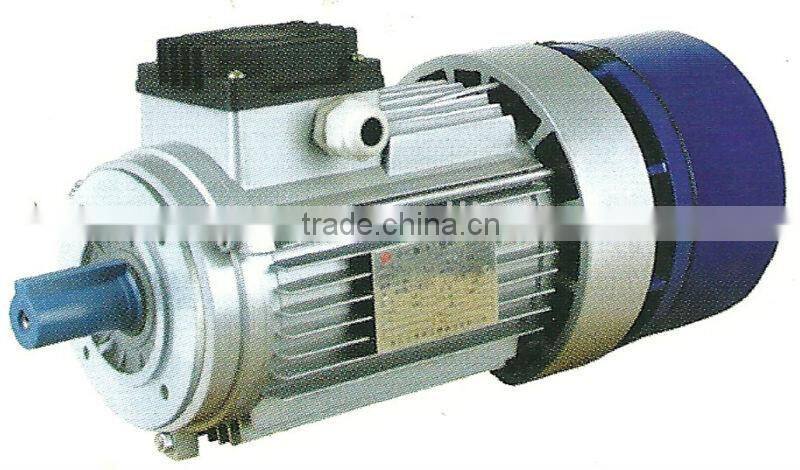

YEJ series brake motor

YEJ Series  consists of three-phase, asynchronous brake motors totally enclosed and fan cooled. The brake power supply is AC 3-phase as standard.On request DC brake can be provided with a rectifier integrated in the terminal box.   All YEJ series motors are provided with a manual brake release. The YEJ series cooling fan is fitted between the motor and the brake assembly.

1.Function: The motor brakes in the event of a power supply failure. The braking action is always obtained through a very quick and precise stop, thereby guaranteeing a safe and prompt intervention in the event of an unforeseen power supply failure

2.Application: particularly suitable for hoisting and traverse applications, tooling machinery, automatic and transfer machinery in textile, ceramic and packing fields and in every situation where precision and quickness in braking are required.

3. Charcter

• Rated voltage up to 1000 V
• Rated output between 0.12 KW and 37 kW
• Either 2, 4 or 6 poles
• Rated for continuous duty

4. Mounting position: IM B3, IM B5, IM B14, IMB34, IMB35

              B3                                              B14

              B5                            B3/14

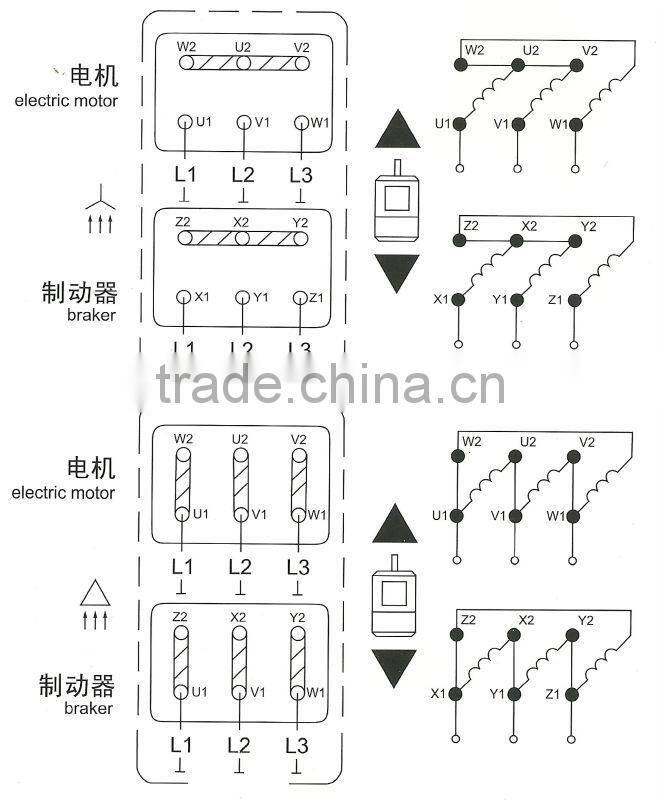

 5.Wiring connection: Signle or Daul wiring

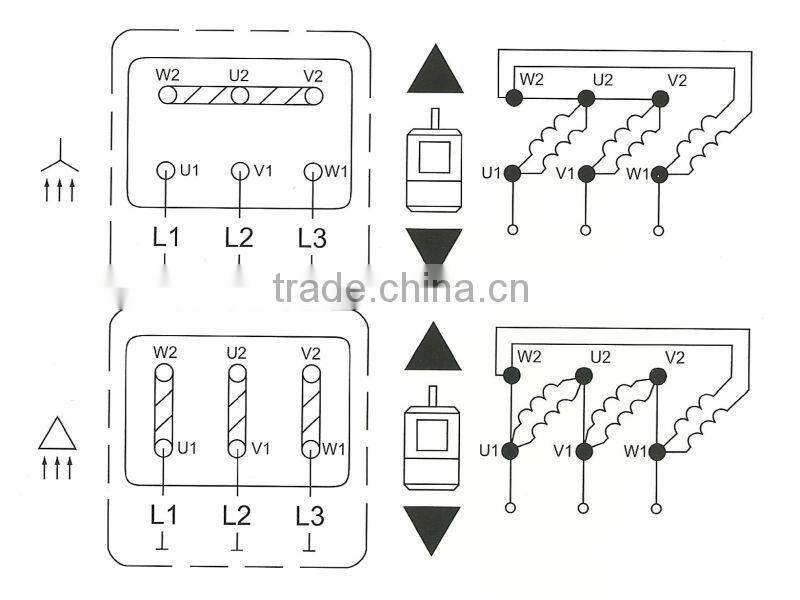

      Single wiring connection for AC braker

   Double wiring connection for AC braker

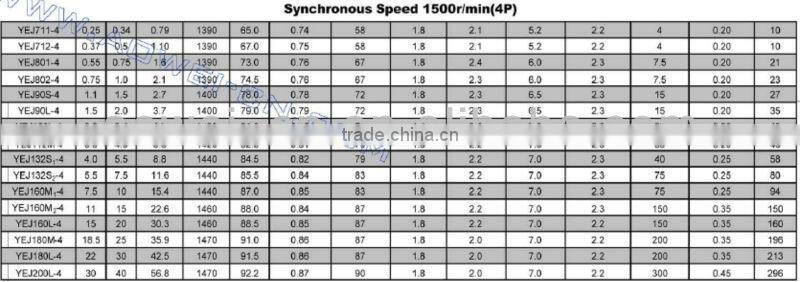

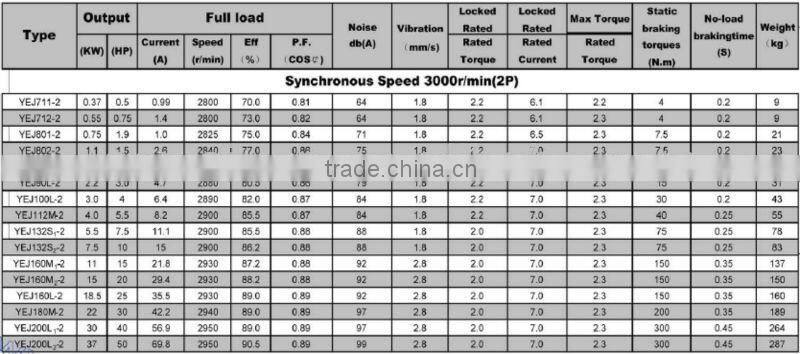

6.  Technical data

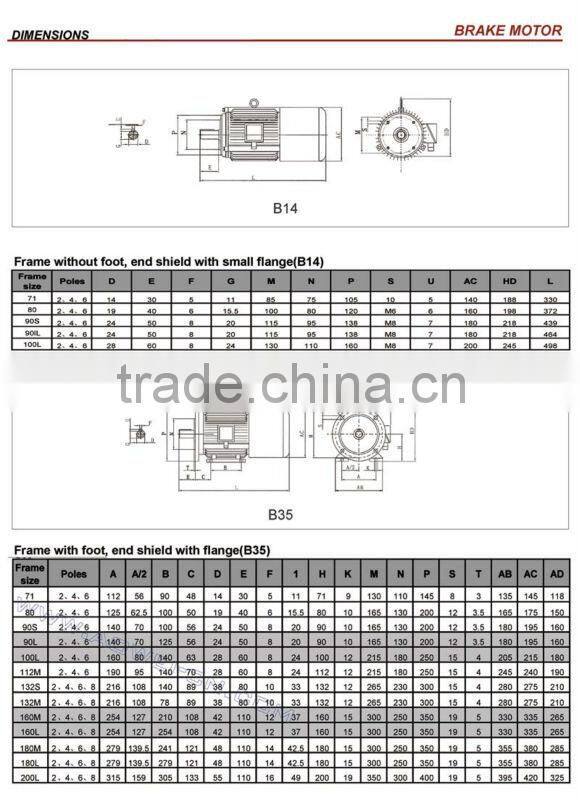

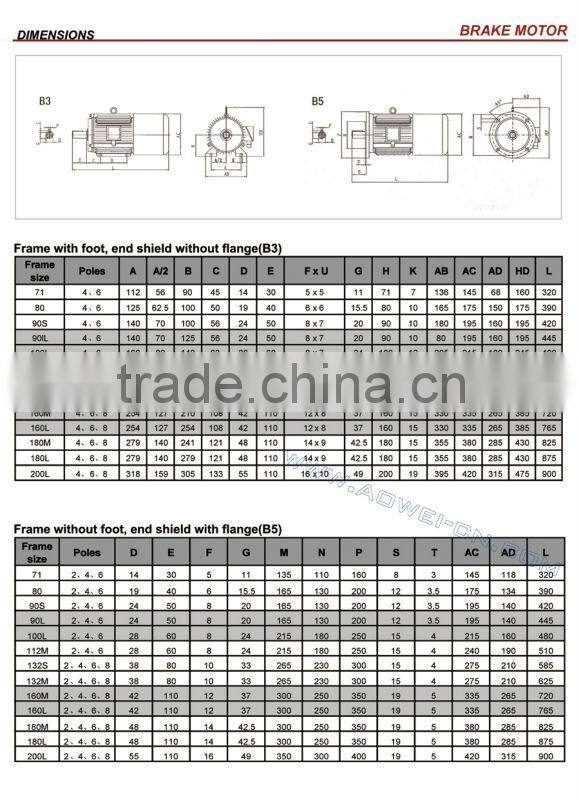

   7.Dimension

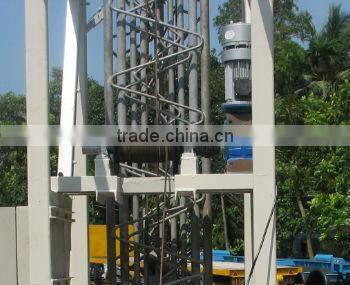

  8. Example
