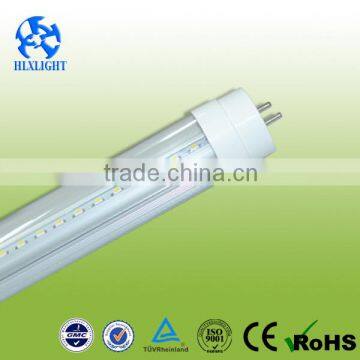

TOP t8 smd3528 led tube lighting 4ft 1200mm 18w 1800lm ShenZhen led tube lighting suppliers

Lighting Tubes&T8 LED Light

Advantages:
1.T8 LED tube green Lighting:green lamp without Pb and Hg tube.

2.Our LED T8 tube light using high quality and high brightness Refond SMD3528 30mA LED diodes as lighting source.High lumens:1300-1400lm for 15W T8 tubes.

3.T8 tube light with LED chip High Efficiency:85-95LM/W

4:Our tube optional PCB design for 15W: 12 in series 12 in parallel&24 in series 6 in parallel in order to satisfied different voltage of the country T8.

5:Our LED tube optional Length:600mm/900mm/1200mm/1500mm T8 tube

6: LED tube light of Power:9W/15W/18W/24W

7:LED tube T8 Optional Size:T5/T8

8:Our LED tube lifespan up to 50,000hours,more than 10 times the life of the traditional fluorescent.

9:LED lighting energy saving and environment friendly, no noise.

Lighting Tubes&T8 LED Light Specification:

T8 1.2M 15W LED TUBE
model number	picture	Specification
HLX-T81201A15		Voltage	AC85-265V
		PF	>0.9
		Color	warm white	nature white	pure white
		TC	2800-3200K	4500-5500K	6000-7000K
		CRI	>75	>80	>80
		Lumens	1300-1400LM
		LM/W	90lm/w
		Light Source	30mA SMD3528 Refond Brand
		Quantity	144pcs( 24 in series 6 in parallel&12 in series 12 in parallel)
		Beam Angle	120degrees
		Size	Ø28*1218mm
		Weight	383g
		Life	50000hours
		Efficient and energy saving
		No Stroboscopic
		Environment protecting
		Easily Assemble
		CE,FCC, ROHS.EMC
		Warranty:3 years

  Lighting Tubes&T8 LED Light: Details:

Quality Control:

The Application of T8 LED Tube

Indoor lighting(livingroom,bedroom,kitchen,washroom)

school ,hospital,hotel,factories,supermaket,shopping mall,commercial complex.

parking lot,airport,subway station,railway station,tunnel.

lobby,hall,square,office.

institution buildings.

Corner of Our Factory

 Attention

1. Please read the product specification carefully and confirm the use of the environment meets the conditions before use.

2. Make sure the switch is in the off status before connect the power supply.

3. Do not touch the lamp surface by your hands directly when lighting as to prevent from burn.

4. This product is only for indoor use,not water proof version.

After-sales service

If you have any questions in the process of unpacking, installation and use of the product,please contact our customer service department,We will reply within two hours,so please keep your email id and phone number accordingly.

If needed,We will send officers arrived at the scene with the fastest transport, troubleshooting, and resume normal operation.

The Company can not assume warranty service for bellow items:

Damage cause by faulty installation, operation or non-specified operating environment and conditions.

Damage cause by accident, abuse, misuse;Customer’s failure storage and improper transportation.

Damage cause by Man-made or natural disaster
