Chinese Herbal Medicine Crushing Machine
- shanghai for chinese herbal medicine crushing machine
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | ZHENYA | |
| Model Number | 200model | Type | Other, herbal equipment | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
chinese herbal medicine crushing machine
Specification
1.suit for pharmacy,food industry and chemical industry
d cooling ,free of screen
3.specially for herbal medicine with fiber and material with grease
Working principle

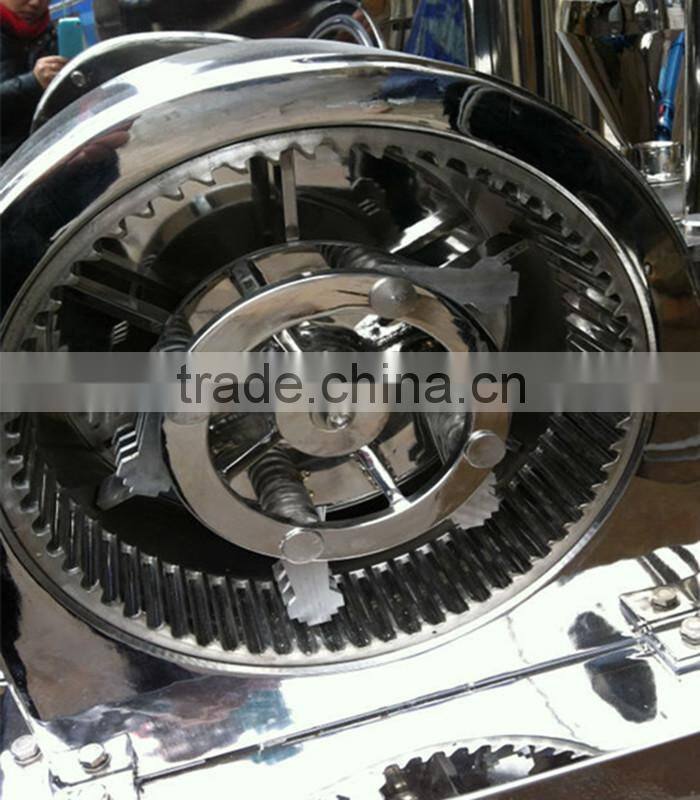

The machine consist of charging filler, grading wheel,crushing knives ,tooth circle ,crushing motor ,discharging outlet ,materials concentration case and dust absorption case. the materials goes into the crushing room from the charging filter, they are crushed bu knives rotating at high speed.
The distance between grading wheel and grading plate can be adjusted to reach the required particle size . The qualified materials are introduced from the crushing room to the cloth bag in the concentrating case .
While the unqualified materials are crushed continuously. The dusts from the cloth bag in the concentratiuong case are collectesthe dust absorption case .
The machine is desighed according to "GMP" standard. it is characteristic of simple structure, easy operation ,low noise, high capacity,The machine is made from stainless steel ,no dust will rise when working .
Technical Data
| Model | 200 | 300 | 400 |
| Capacity (kg/h) | 10-150 | 20-300 | 50-500 |
| Size of input granules (mm) | ≤5 | ≤12 | ≤15 |
| Fineness of products (mesh) | 20-250 | 20-250 | 20-250 |
| Grinding power (kw) | 5.5 | 7.5 | 11 |
| Dust absorption power (kw) | 1.5 | 2.2 | 3 |
| Overall size (mm) | 1000*800*1600 | 1200*850*1780 | 1500*900*1950 |
| Weight (kg) | 320 | 550 | 680 |
