Full Automatic 4 Color Pad Printer for Plastic Bottle Caps

Full automatic 4 color pad printer for plastic bottle caps  ( HX-AP4-150TC )

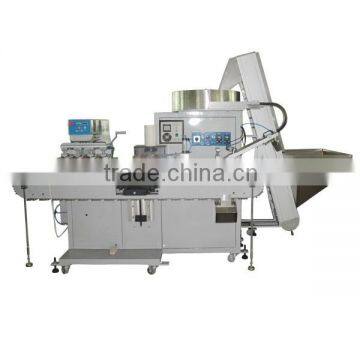

Bottle Caps Fully Automatic Pad Printer HX-AP4-150TC

Caps Master - Bottle Caps Fully Automatic Pad Printing System
Pad printer with vertical conveyor is high speed for bottle caps top printing machine.
Caps Master is a fully automatic pad printing system for caps printing. It is combined with auto loading, caps locking, flame treatment, printing, drying and unloading all in 1 system. Easy setting up, fast and durable running makes Caps Master a stable and economic solution for caps printing.
Beverages caps, wine caps, medicine caps, oil caps and so on.

Features:
1. Automatic loading with hopper and mechanical loading system
2. Automatic caps sorter
3. Automatic cap pressing fix into fixtures
4. Auto flame treatment with electric ignition and air exhausting system
5. Automatic 4 color printing. 1 to 4 color are optional.
6. Motor driven conveyor with perfect color registration
7. Automatic unloading
8. Automatic heating system to dry the caps after printing
9. Multi in 1 fixture (standard caps 6 in 1 fixtures)
10. PLC control, touch screen display
11. CE standard safety design
12. Well built machine closure
13. Sealed ink cup system optional
14. Auto pad cleaning optional

Specifications:
Ink tray size: 110*150mm
Max printing size: Dia. 50mm
Pad printing stoke: 150mm
Max printing speed: 8000 ~ 10000PCS/hr
Gross weight: 800kgs
Machine Dimension: 1790*1190*2100mm for printing section only

Optional specifications:
1. 3-colour, 4-colour machines are optional.
2. Plate size is optional.
3. Ink tray machine and sealed cup machine are optional.

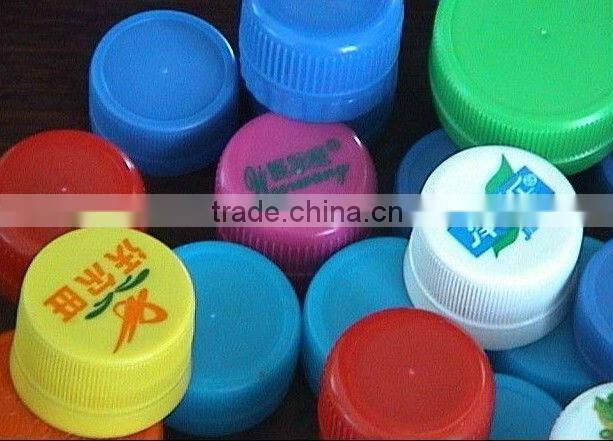

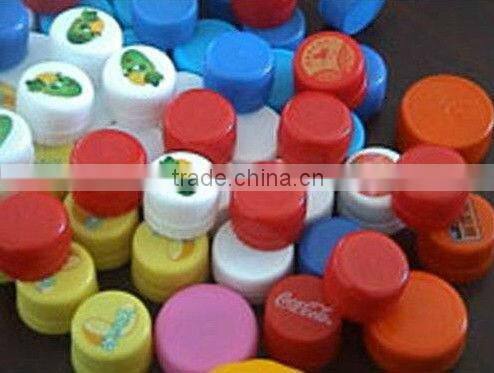

Printing sample:
