mini laser cutting machine metal laser engraving machine with the lowest price
- QINGDAO
You May Like
Product Details
| Condition | New | Laser Type | CO2 | |
| Engraving Area | 600mm*900mm | Engraving Speed | 6000mm/min | |
| CNC or Not | Yes | Cooling Mode | Water Cooling | |
| Applicable Material | Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood | Graphic Format Supported | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | |
| Place of Origin | Shandong, China | Brand Name | JC | |
| Model Number | JC-6090 | Dimension(L*W*H) | 600*900*200 | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

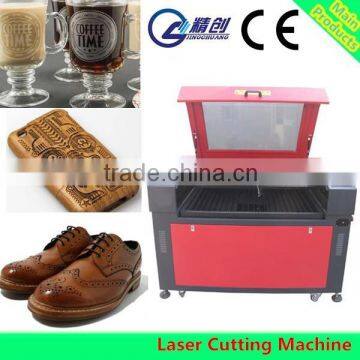

mini laser cutting machine metal laser engraving machine with the lowest price CO2 laser engraving machine 6090 CNC laser cutting machine
What is Features of our CO2 laser engraving machine 6090 CNC laser cutting machine ?
- Wide range of application,can work with glass, leather and non-metal,acrylic, paper, PVC, MDF, stone etc.
- WIth CE certification
- High precision and Good stability,With precision ball screw transmission mechanism and optimized the nc system control,
- Adopt sealed co2 laser tube , main consumable items are electric energy,water-cooling, auxiliary gas and laser light
- The processing flexibility, can be processing any graphics, can also cutting pipes and other profiles
What is Specifications of our CO2 laser engraving machine 6090 CNC laser cutting machine ?
Product Type | JC-6090 CO2 laser engraving machine 6090 CNC laser cutting machine |
Processing area | 600mm*900mm |
Laser power | 60W,80W,100W,(optional) |
Laser type: | Sealed Co2 glass laser tube |
Cooling mode: | Water cooling and protection system |
Resetting positioning accuracy: | ±0.01mm |
Compatible Software: | CorelDraw AutoCAD Photoshop |
Whole machine size: | 900*1200mm |
Engraving speed | 1-6000mm/min |
Cutting speed | 1-1000mm/min |
Resolution ratio | ≤0.0125mm |
Position system: | Red dot |
Interface: | USB |
Minimum shaping character | letter 0.5mm, Chinese 0.5mm |
Support graphic format | DST, PLT, BMP, DXF |
Gross power | 1000W |
Driving mode: | DC0.8A 24V stepper motor |
Cooling mode: | Circulation water cooling |
Working voltage: | AC 110 - 220V±10%, 50 - 60Hz or depend on customer |
Operating temperature | 0-45C |
Operating humidity: | 5-95% |
More Working area size for you, customization is available
Product Photos
Optional parts:
1. RECI type laser tube (8000-10000 hours life time)
2. Bigger power tubes (100w, 130w, 150w etc)
3. High-grade cooling system (from 100w or bigger than 100w better to choose this)
4. double-head or more heads
5. Cylinder rotary clamp (for cylinder materials working. Like cup, pen, bottles etc)
6. irregular rotary clamp
7. servo motor
8. Red pointer
9. Ball screw transfer
10. Auto feeding system etc.
please contact us, we will give you the best suggestions.
What is Applications of our CO2 laser engraving machine 6090 CNC laser cutting machine ?
Applicable materials: Acrylic,glass,PVC,MDF,stone.
- Applicable show: Metal spectacle frame,furniture plate cutting,MDF photo frame cutting ,building model cutting
- Mainly used for advertising industry,Stainless metal and carbon steel. Sheet metal industry carbon steel. Packaging industry Die board.and so on. CO2 laser engraving machine 6090 CNC laser cutting machine .
Company View
Trade Terms:
- Payment: T/T, 30% deposits; 70% balance before deliverying.
- Delivery Time: 7-15 working days
- MOQ: 1 set
- Package Informations: Standard Export wooden Box
Why Choose us?
- We are the professional manufacturer for 10 years.
- Inspected by the Inspection Institution of CE Certification.
- Best Quality & Best Service with Competitive price
- High degree of responsibility, good team spirit
- 100% Quality Control inspection Before Shipment.
Our Cetification & Business License
About Our Warranty and After-sale Service
Warranty:
1.One year quality guaranty, the machine with main parts(excluding the consumables)
2.With lifetime maintenance
3.Free training course at our company
After-sale Service:
a) Technical support online service provided
b) Technical files service provided.
c) On-site training service provided.
d) Spare parts replacement and repair service provided.
FAQ
Q1.How do you get the best price ?
1)Please tell me what is material that you want to cut or engrave
2)what is the MAX size of carved material
Then I will recommand the most suitable model and the best price for you.
Q2.How to Operate?
1) it’s really easy to operate.
2). Video will be sent to you. After you watch videos you can install this kind of machine by yourself.
3). Software! We use CorelDraw 9 or 12 to draw pattern, if you know how to use one of them, it would be great! If you did not know! Welcome to our class, we will show you how to draw it!
4). Hardware! Our machine is steady! It will work after 3 steps:
a. Install laser tube
b. Install water chiller
c. Power on
After trying one or two times, we are sure that you will agree with us, it is a piece of cake!
Q3.How Do I Know That I Have All The Goods I Ordered Before The Shipment?
Pictures will be sent to our clients for confirmation before the shipment.
Q4.How can I get Machine's spare parts?
There are two methods. Spare Parts ordered together with the machine, this is the safest way to transport. The other way is you can inform us when you need to replace the consumables, we will send them to you within 24 working hours.
Q5.What files is the software compatible with? JPEG,DWG, BMP, PLT, DST, DXF,CDR,AI, etc
Q6.Your machine size is not suitable for my material size,any suggestion?
We are keen on customizing and tuning products to satisfy our clients and fitfor the competitive markets.We have different Spindle power type,different cooling system,control system.please contact us freely,We will make the suitable and specifical machine for you.
Q7.In case of failure during processing,What to do ?
1)Call us----our enginners are online for 24-hours,and ready to serve you.
2)Replacement of damaged parts for free---For more information,please read the warranty card.
3)The CD and operation manual----It show the most common failure in working processing and how to solve this problems.
Q8.Does your machine program run from a laptop or Desktop PC?
Both ok, as long as your operating system is windows 2000, windows 7 or XP or vista, etc.
